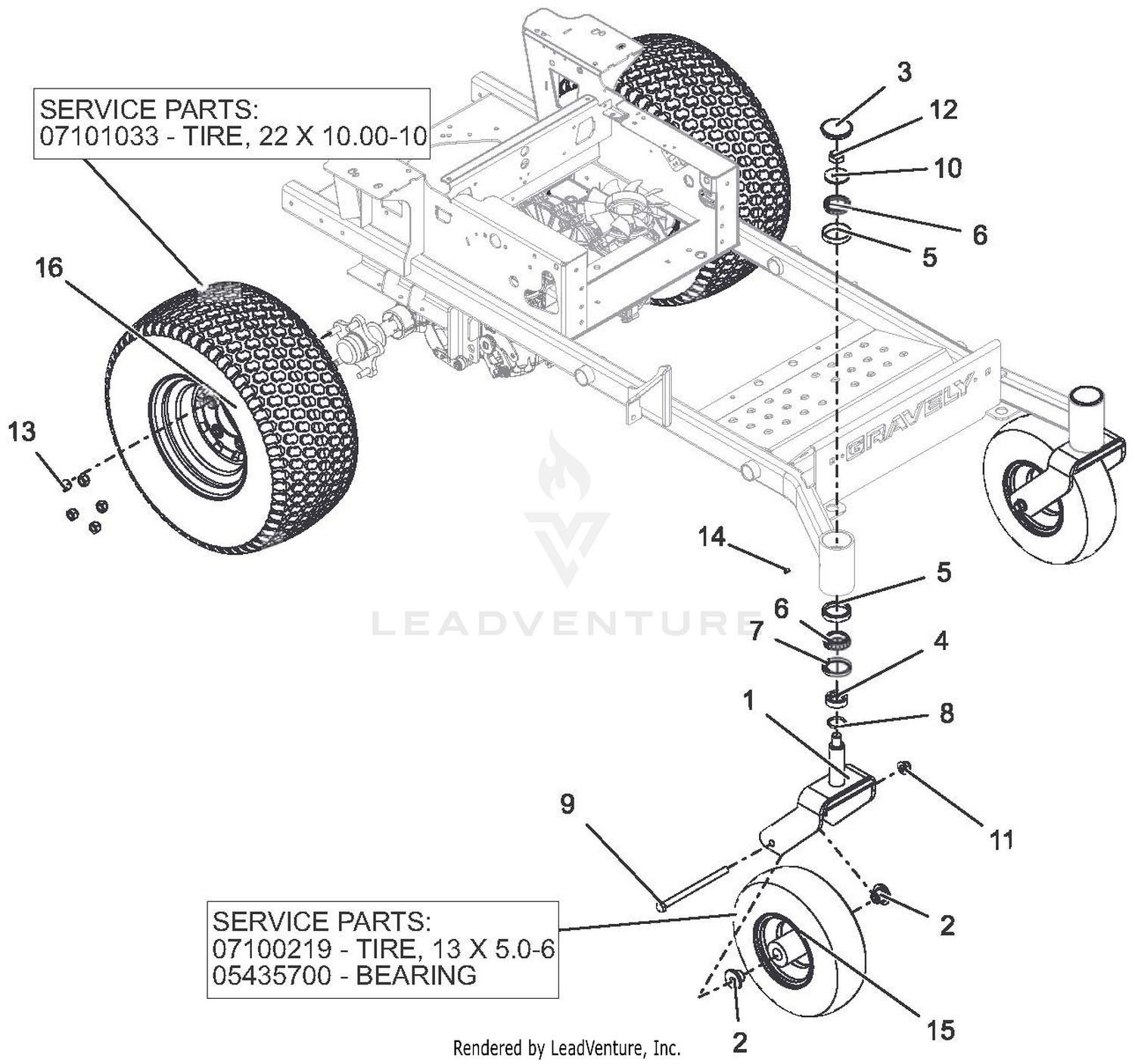

| Ref | Part Number | Description |
|---|
| 1 |
04539353 |
CASTER FORK WLDMT - RED Price: $118.45 |
| 2 |
00675300 |
SPACER, FRONT WHEEL Price: $7.95 |
| 3 |
03925900 |
CAP, DUST Price: $10.45 |
| 4 |
04861500 |
SPCR, FRONT CASTER FORK Price: $12.45 |
| 5 |
05404600 |
BRG-CUP 2.328X.465 Price: $13.45 |
| 6 |
05404700 |
BRG-CONE 1.25X.66 Price: $19.95 |
| 7 |
05600432 |
SEAL, OIL 1.75 X 2.332 X .312 Price: $10.95 |
| 8 |
05600515 |
O-RING, Price: $2.45 |
| 9 |
05902023 |
BLT, HEX .50-13X7.50 G5 ZCC This part replaces 05978200. Price: $7.45 |
| 10 |
06401201 |
WSHR-FL-STL 0.812X2X0.148 ZCC This part replaces 06439800. Price: $3.95 |
| 11 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 12 |
06500933 |
NUT, JAM-TOPLOCK .750-16 ZCC This part replaces 06500721. Price: $3.95 |
| 13 |
06500926 |
NUT- WHEEL .50-20 ZCC This part replaces 06517600. Price: $1.45 |
| 14 |
07001727 |
FTG, .25-28 FLUSH MNT GREASE Price: $3.45 |
| 15 |
07101111 |
ASM, WHL/TIRE 13X5.00-6 - CHARCOAL GRAY - K404 TREAD Price: $115.45 |
| 16 |
07101115 |
ASM, WHL/TIRE 22X10.00-10 Price: $169.95 |
