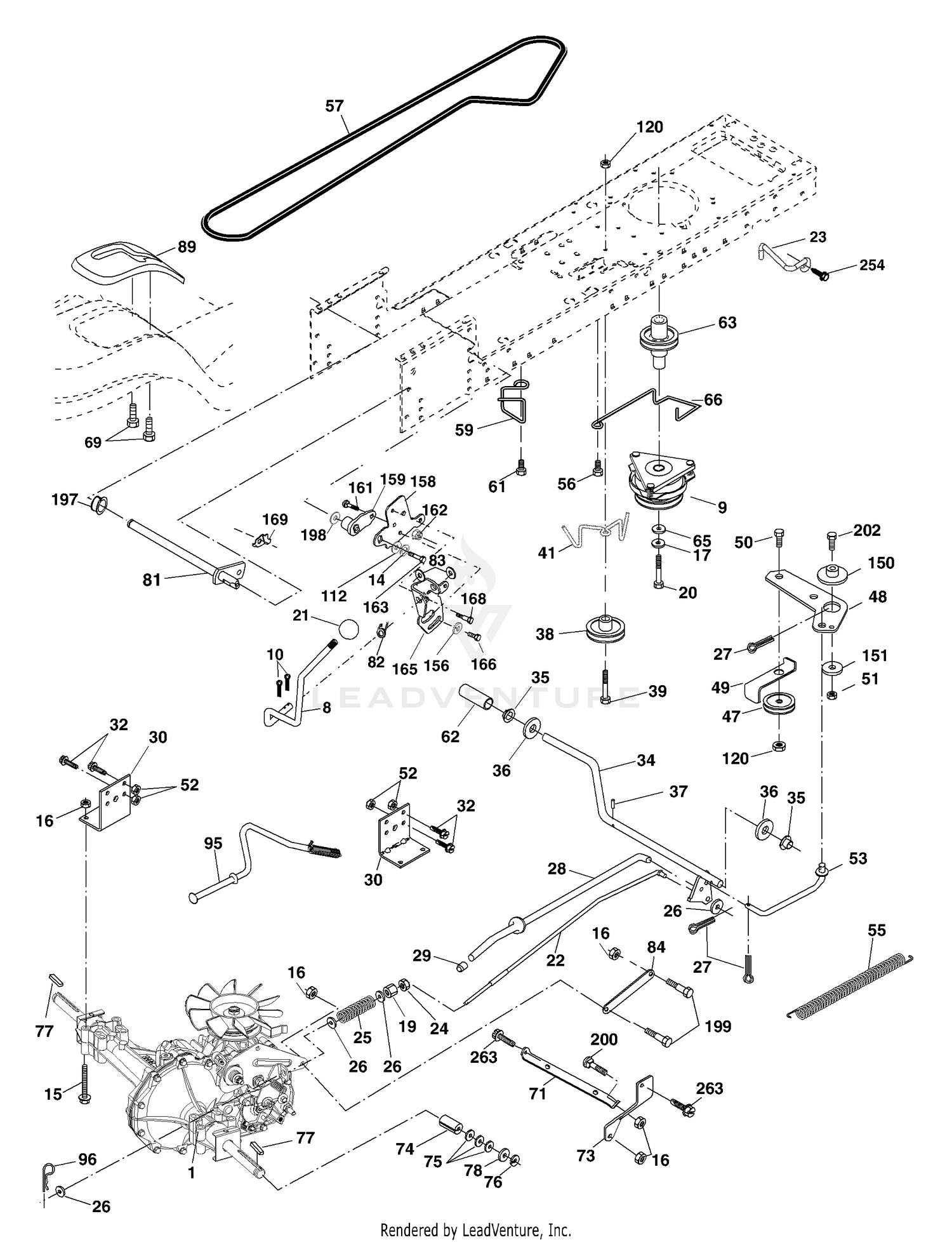

| Ref | Part Number | Description |
|---|
| 1 |
285-17 |
PLUG-PIPE Price: $2.59 |
| 2 |
237-22 |
O-RING Price: $2.43 |
| 3 |
25-2630 |
RING-BACK UP Price: $3.55 |
| 4 |
88-8220 |
VALVE-BY PASS This part replaces 25-2620. Price: $189.03 |
| 5 |
48-1800 |
CYLINDER BLOCK KIT Price: $1,923.22 |
| 6 |
119-2895 |
SPLINED SHAFT KIT This part replaces 67-8020. Price: $1,116.09 |
| 7 |
3257-32 |
KEY-WOODRUFF Price: $2.52 |
| 8 |
532165866 |
ROD SHIFT FENDER ADJUST STLT Price: $24.99 |
| 8 |
61-0080 |
DISCONTINUED X-REF Price: Call Us |
| 9 |
252-82 |
BEARING-NEEDLE Price: $51.31 |
| 9 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532179334. Price: $329.99 |
| 10 |
25-3210 |
SEAL-LIP Price: $23.14 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 11 |
25-2510 |
WASHER-FLAT Price: $2.41 |
| 12 |
25-2580 |
SHAFT-TRUNNION Price: $215.33 |
| 13 |
32151-46 |
RING-RETAINING Price: $8.38 |
| 14 |
25-2460 |
PLUG-HH Price: $37.38 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 15 |
237-86 |
O-RING Price: $5.47 |
| 15 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 16 |
25-2470 |
PACK-SHIM Price: $47.36 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 17 |
25-2570 |
SPRING-VALVE Price: $12.67 |
| 17 |
532126197 |
WASHER Price: $6.99 |
| 18 |
83-7260 |
CONE-RELIEF, CHARGE This part replaces 25-2560. Price: $50.57 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 19 |
67-8030 |
PLUG ASM Price: $29.67 |
| 20 |
28-3570 |
O-RING This part replaces 67-8040. Price: $6.06 |
| 20 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 21 |
25-2690 |
DISCONTINUED Price: Call Us |
| 21 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 22 |
532169498 |
ROD BRAKE HYDRO Price: $17.99 |
| 22 |
67-8050 |
BEARING-NEEDLE Price: $54.10 |
| 23 |
532190736 |
BRACKET, ANTI-ROTATION Price: $24.99 |
| 23 |
93-4133 |
SEAL-LIP This part replaces 67-8060. Price: $37.43 |
| 24 |
322-4 |
SCREW-HH Price: $0.35 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
25-2680 |
GEROTOR ASM Price: $651.02 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 26 |
25-2530 |
PIN-STRAIGHT, HEADLESS Price: $21.24 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 27 |
237-95 |
O-RING Price: $11.97 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
25-2500 |
SHAFT-TRUNNION This part replaces 49-8480. Price: $191.66 |
| 28 |
532175765 |
ROD, PARKING BRAKE Price: $4.99 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 30 |
531149601 |
SERVICE KIT BRACKET BRKT This part replaces 532169592. Price: $8.99 |
| 32 |
25-2480 |
SPRING-VALVE Price: $4.93 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 33 |
83-7260 |
CONE-RELIEF, CHARGE This part replaces 28-3420. Price: $50.57 |
| 34 |
32120-15 |
RING-SNAP, EXT Price: $1.20 |
| 34 |
532175578 |
SHAFT, FOOT PEDAL Price: $27.99 |
| 35 |
251-8 |
BEARING-BALL Price: $30.06 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
32151-75 |
RING-RETAINING This part replaces 32120-11. Price: $2.51 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
25-2450 |
PLATE-SWASH, VARIABLE Price: $896.81 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
32121-91 |
PIN-SPRING Price: $0.81 |
| 38 |
532179114 |
PULLEY IDLER COMPOSITE Price: $19.99 |
| 39 |
25-2380 |
PLATE-THRUST Price: $32.89 |
| 39 |
872110622 |
BOLT Price: $3.99 |
| 40 |
25-2390 |
PLATE-VALVE, MOTOR Price: $832.97 |
| 41 |
25-2430 |
PIN-DOWEL Price: $0.95 |
| 41 |
532175556 |
KEEPER, BELT IDLER Price: $6.99 |
| 42 |
110-6341 |
BEARING-ROLLER This part replaces 67-8080. Price: $41.33 |
| 43 |
25-2400 |
GASKET Price: $19.26 |
| 44 |
93-4132 |
O-RING This part replaces 62-4290. Price: $6.84 |
| 45 |
67-8090 |
DISCONTINUED Price: Call Us |
| 46 |
323-11 |
SCREW-HH Price: $1.08 |
| 47 |
25-2490 |
BALL Price: $14.47 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
25-2640 |
SPRING-VALVE Price: $4.22 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
25-2650 |
PLUG-VALVE, CHECK Price: $89.01 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 57 |
532140294 |
DRIVE BELT, LTH & YTH TRACTORS Price: $34.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER Price: $17.99 |
| 61 |
817490614 |
Screw, Hex Washer Hd. 3/8 - 16 x 7/8 This part replaces 817120614. Price: $3.20 |
| 62 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 63 |
532174607 |
PULLEY- ENGINE Price: $44.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 69 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 71 |
532169183 |
STRAP TORQUE LH HYDRO Price: $4.99 |
| 73 |
532169182 |
STRAP TORQUE RH HYDRO Price: $14.99 |
| 74 |
532137057 |
SPACER AXLE Price: $5.99 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 81 |
532165596 |
SHAFT ASM CROSS TAPERED Price: $32.99 |
| 82 |
532165711 |
SHIFT SPRING Price: $5.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532169594 |
LINK TRANSAXLE Price: $5.99 |
| 89 |
532188309 |
CONSOLE.SHIFT.STL.AUTO.GREY This part replaces 532191816. Price: $8.99 |
| 95 |
532170201 |
CONTROL ASM. BYPASS HYDRO Price: $8.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 112 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 120 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 150 |
532175456 |
SPACER, RETAINER Price: $4.99 |
| 151 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 156 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $5.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532183900. Price: $5.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 162 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 163 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 165 |
531149501 |
SERVICE KIT BRACKET BRACKET.PI This part replaces 532165623. Price: $4.99 |
| 166 |
594094101 |
Bolts This part replaces 817490510. Price: $1.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 169 |
532165580 |
PLATE.FASTENING.CROSS.SHAFT Price: $5.99 |
| 197 |
532169613 |
NYLINER SNAP 5/8" ID Price: $4.99 |
| 198 |
532169593 |
WASHER.NYL.7/8IDX.105"HYD CR Price: $9.99 |
| 199 |
596231101 |
BOLT.5/16-18X.910 ST CLR ZINC This part replaces 532169612. Price: $3.99 |
| 200 |
595901501 |
Bolts This part replaces 872140508. Price: $3.99 |
| 202 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 254 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
