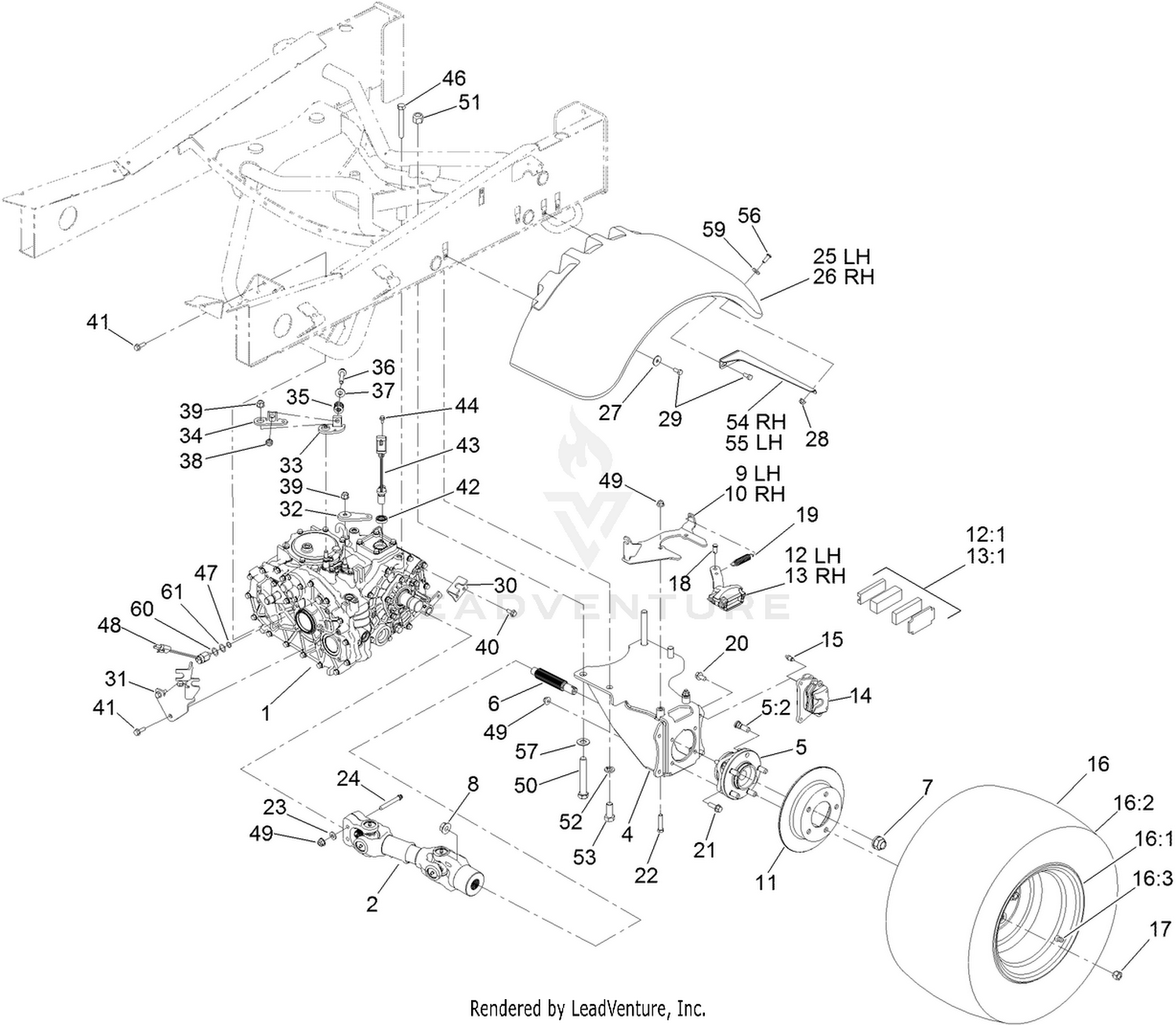

| Ref | Part Number | Description |
|---|
| 1 |
120-7610 |
TRANSAXLE ASM Price: $8,566.62 |
| 2 |
138-5600 |
DRIVESHAFT ASM This part replaces 114-8367. Price: $567.88 |
| 4 |
125-0928-03 |
RH HUB ASM Price: $242.78 |
| 5 |
121-9751 |
HUB-BEARING, WHEEL Price: $409.38 |
| 6 |
138-5600 |
DRIVESHAFT ASM This part replaces 115-7771. Price: $567.88 |
| 7 |
115-2164 |
NUT-SPINDLE Price: $12.03 |
| 8 |
104-0753 |
NUT-FLANGE Price: $3.38 |
| 9 |
115-2362-0P |
BRACKET ASM-CALIPER, LH This part replaces 115-2362-03. Price: $109.56 |
| 10 |
115-2359-0P |
BRACKET ASM-CALIPER, RH This part replaces 115-2359-03. Price: $109.56 |
| 11 |
114-8351 |
ROTOR-BRAKE Price: $129.85 |
| 12 |
114-8365 |
CALIPER-MECHANICAL, LH Price: $362.91 |
| 13 |
114-8366 |
CALIPER-MECHANICAL, RH Price: $362.91 |
| 14 |
127-7424 |
BRAKE CALIPER ASM This part replaces 119-9535. Price: $199.13 |
| 15 |
119-9509 |
SCREW-BLEED Price: $7.10 |
| 16 |
117-4838 |
TIRE AND WHEEL ASM Price: $421.87 |
| 17 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 18 |
283-85 |
PIN-CLEVIS Price: $1.29 |
| 19 |
137-7040 |
SPRING-RETURN, PEDAL This part replaces 104-6415. Price: $4.89 |
| 20 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 21 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 22 |
323-9 |
SCREW-HH Price: $1.29 |
| 23 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 24 |
98-2939 |
SCREW-CAP Price: $3.10 |
| 25 |
112-6805 |
FENDER-RH Price: $151.29 |
| 26 |
112-6806 |
FENDER-LH Price: $154.85 |
| 27 |
3256-82 |
WASHER-FLAT Price: $0.47 |
| 28 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 29 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 30 |
87-4470 |
BRACKET-LOCK, DIFFERENTIAL Price: $13.30 |
| 31 |
107-8749-03 |
BRACKET-CABLE Price: $122.91 |
| 32 |
87-7960 |
LEVER-SHIFT Price: $35.58 |
| 33 |
87-7970 |
ARM-SHIFT Price: $53.32 |
| 34 |
87-8250 |
PLATE-ARM, SHIFT Price: $38.85 |
| 35 |
87-6910 |
SPRING-COMPRESSION Price: $29.31 |
| 36 |
66-9302 |
SCREW-HHF, WHIZ Price: $4.49 |
| 37 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 38 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 39 |
103-9511 |
NUT-LOCK, NI Price: $2.09 |
| 40 |
98-7977 |
SCREW-HHF Price: $0.68 |
| 41 |
33104-025 |
SCREW-HHF Price: $6.47 |
| 42 |
92-3735 |
SEAL-SENSOR, OIL Price: $5.76 |
| 43 |
120-4800 |
SENSOR-GEARTOOTH Price: $152.70 |
| 44 |
33103-012 |
SCREW-HHF Price: $3.21 |
| 46 |
33116-090 |
SCREW-HH Price: $3.53 |
| 47 |
237-30 |
O-RING Price: $2.50 |
| 48 |
87-6710 |
SWITCH-TRANSMISSION Price: $124.07 |
| 49 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 50 |
327-29 |
SCREW-HH Price: $5.77 |
| 51 |
127-3958 |
NUT-LOCK, NI Price: $1.15 |
| 52 |
3253-23 |
WASHER-LOCK Price: $3.87 |
| 53 |
327-4 |
SCREW-HH Price: $2.20 |
| 54 |
125-7959-03 |
BRACKET-FENDER Price: $37.45 |
| 55 |
125-7960-03 |
BRACKET-FENDER Price: $37.51 |
| 56 |
3274-32 |
SCREW-HSBH Price: $4.79 |
| 57 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 59 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 60 |
125-8106 |
SHIM Price: $18.96 |
