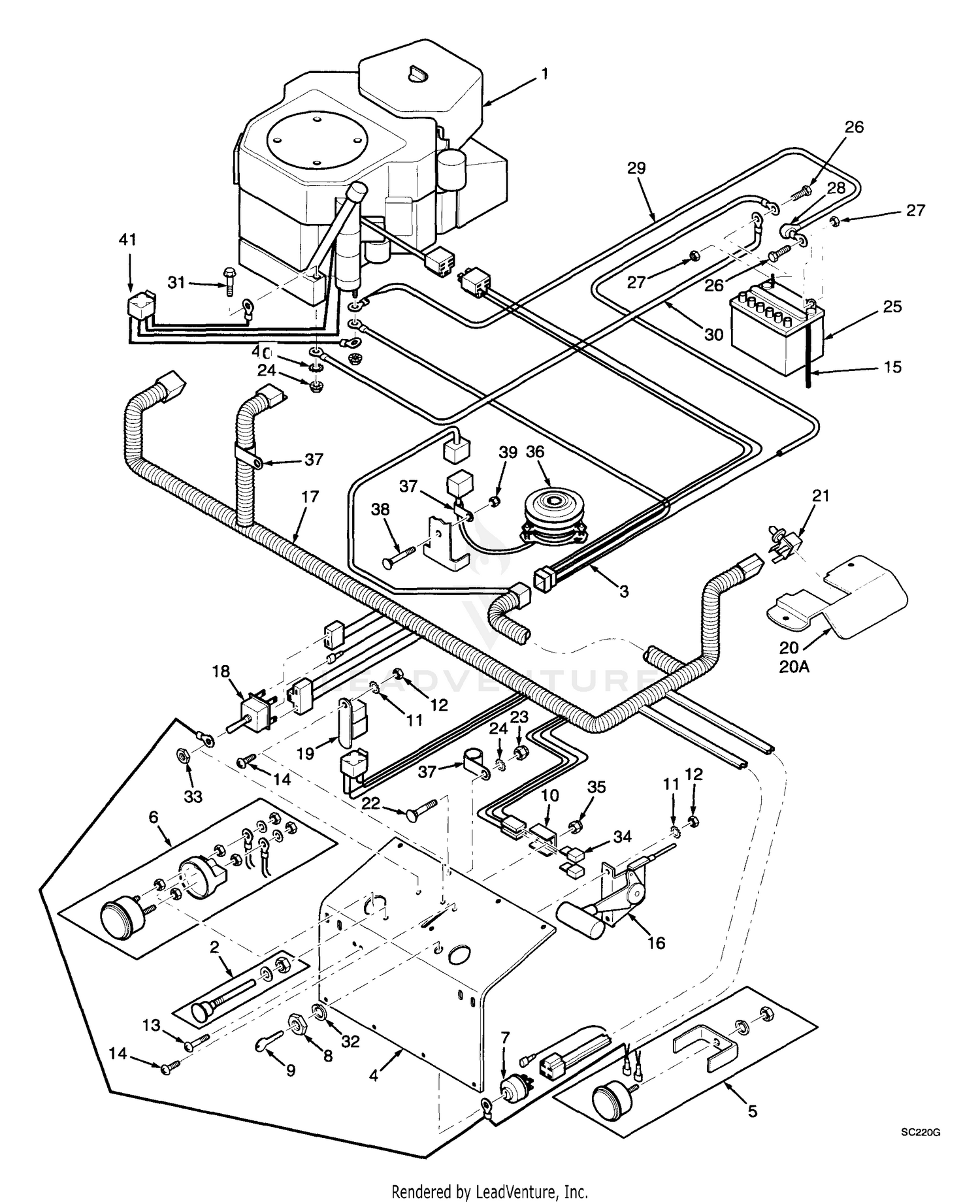

| Ref | Part Number | Description |
|---|
| 2 |
48780 |
Choke Control Price: Call Us |
| 3 |
481070 |
Adapter Price: Call Us |
| 4 |
421251 |
Kick Plate Price: Call Us |
| 5 |
48023 |
Hour Meter Price: Call Us |
| 6 |
481755 |
Ammeter This part replaces 48022. Price: Call Us |
| 8 |
48017-04 |
Nut, Hex 5/8-32 Price: Call Us |
| 9 |
48017-02 |
Key & Ring Assembly Price: Call Us |
| 10 |
42413 |
Bracket, Fuse Holder Price: Call Us |
| 11 |
04031-01 |
Lockwasher, #10 External Tooth Price: Call Us |
| 12 |
04020-07 |
Nut, Hex #10-32 Price: Call Us |
| 13 |
04010-11 |
Screw, Phillips Washer Head #10-32 x 1-1/2" Price: Call Us |
| 14 |
04010-01 |
Screw, Phillips Washer Head #10-32 x 1/2" Price: Call Us |
| 15 |
48015-01 |
Overflow Tube Price: Call Us |
| 16 |
48879 |
Throttle Control Price: Call Us |
| 17 |
481269 |
Wire Harness Price: Call Us |
| 18 |
48787 |
Switch, Mower Engagement Electric Clutch Price: Call Us |
| 19 |
48788 |
Relay Price: Call Us |
| 20 |
421253 |
Neutral Lock Bracket, RH Price: Call Us |
| 20A |
421252 |
Neutral Lock Bracket, LH Price: Call Us |
| 21 |
481474 |
Switch, Parking Brake This part replaces 48522. Price: Call Us |
| 22 |
04003-12 |
Bolt, Carriage 5/16-18 x .75" Price: Call Us |
| 23 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 24 |
04019-03 |
Nut, Serrated Flange Hex 5/16-18 Price: Call Us |
| 25 |
48015 |
Battery Price: Call Us |
| 26 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 27 |
04020-02 |
Nut, Hex 1/4-20 Price: Call Us |
| 28 |
48126 |
Rubber Boot Price: Call Us |
| 29 |
48029-13 |
Battery Cable, 25" Red Price: Call Us |
| 30 |
48029-11 |
Battery Cable, 27" Black Price: Call Us |
| 31 |
04017-19 |
Bolt, Serrated Flange Hex Head 5/16-18 x 1.50" Price: Call Us |
| 32 |
48017-03 |
Lockwasher, 5/8" Internal Price: Call Us |
| 33 |
48787-01 |
Nut, Hex 1/2-27 Price: Call Us |
| 34 |
48298 |
Fuse, Blade Type 20 amp Price: Call Us |
| 35 |
04021-01 |
Nut, Elastic Stop #10-32 Price: Call Us |
| 36 |
461074 |
CLUTCH ASSEMBLY This part replaces 48786. Price: Call Us |
| 37 |
48030-09 |
Clamp Price: Call Us |
| 38 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 39 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 40 |
04031-09 |
Lockwasher, 5/16" Internal Tooth Price: Call Us |
