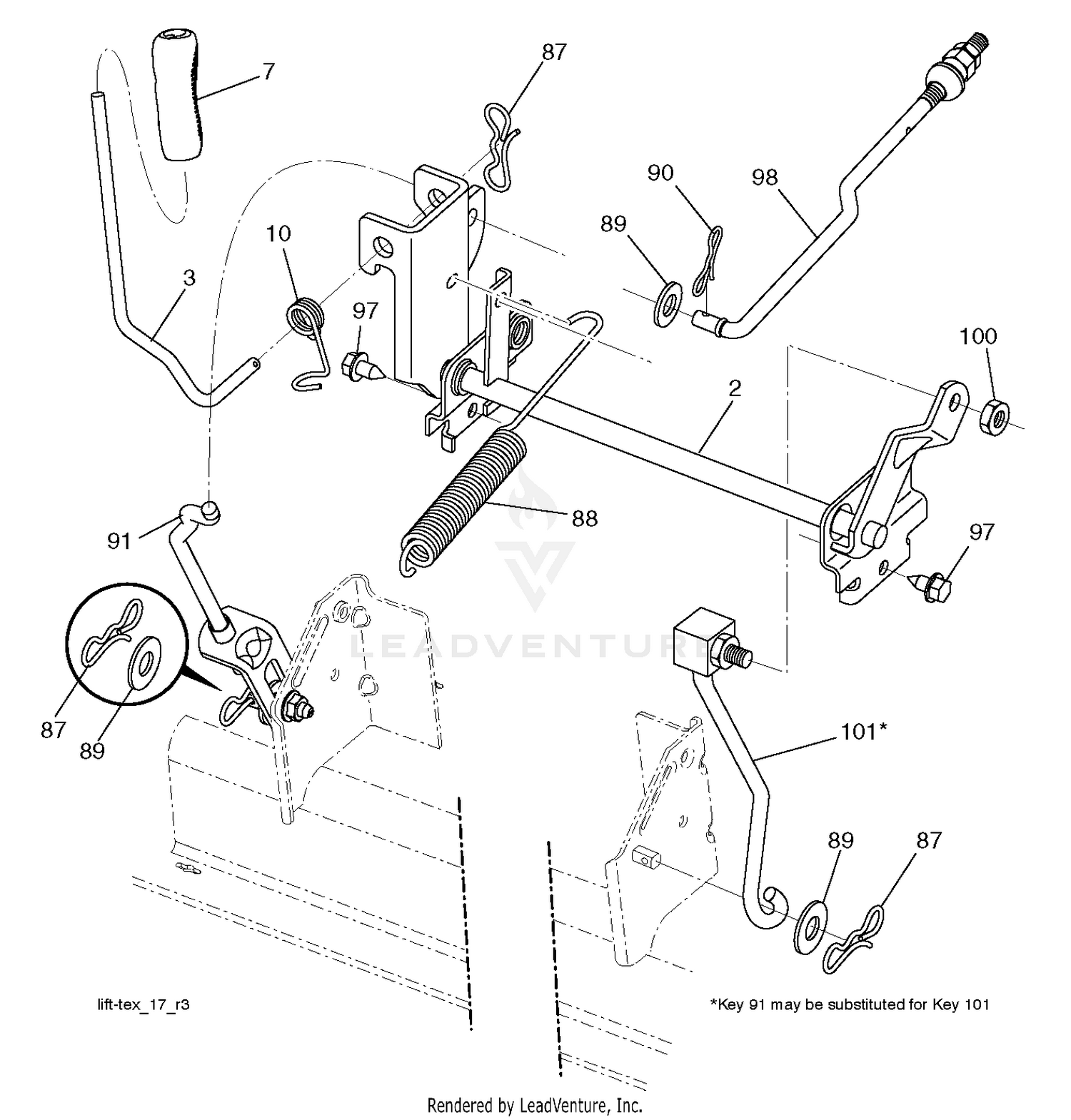

| Ref | Part Number | Description |
|---|
| 2 |
532422027 |
SHAFT.ASM.CROSS.LIFT Price: $69.99 |
| 3 |
594018001 |
Levers This part replaces 532195231. Price: $17.99 |
| 6 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 7 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK This part replaces 580962301. Price: $7.99 |
| 7 |
92-7807-01 |
REAR AXLE PIN ASM This part replaces 92-7807. Price: $151.97 |
| 8 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 9 |
92-7803-01 |
AXLE SUPPORT ASM This part replaces 92-7803. Price: $958.49 |
| 10 |
32128-23 |
NUT-HF Price: $1.51 |
| 10 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 11 |
98-3869-01 |
WEIGHT-REAR This part replaces 67-8960. Price: $461.69 |
| 12 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 14 |
32146-20 |
NUT-HEX Price: $3.23 |
| 15 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 16 |
99-2413-01 |
COVER-GUARD, FLYWHEEL This part replaces 93-7042. Price: $22.07 |
| 17 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 18 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 19 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 20 |
237-22 |
O-RING Price: $2.43 |
| 21 |
71-4430 |
REAR STEERING HOSE Price: $104.39 |
| 22 |
68-9710 |
HOSE-STEERING, REAR Price: $98.31 |
| 23 |
106-6774 |
JOINT-BALL This part replaces 92-5838. Price: $79.04 |
| 24 |
2412-39 |
CLAMP-R Price: $1.70 |
| 25 |
32128-21 |
NUT-HF Price: $0.39 |
| 26 |
92-7810-03 |
CROSS MEMBER ASM This part replaces 92-7810. Price: $432.77 |
| 28 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 29 |
340-54 |
ELBOW-45 DEG Price: $40.72 |
| 30 |
237-78 |
O-RING Price: $3.85 |
| 31 |
3220-6 |
NUT-JAM Price: $1.25 |
| 32 |
92-7829 |
DISCONTINUED Price: Call Us |
| 33 |
92-7839 |
SLEEVE - PROTECTIVE Price: $39.83 |
| 34 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 35 |
5-1226 |
WASHER Price: $3.90 |
| 36 |
56-2460 |
WASHER-FLAT Price: $3.32 |
| 37 |
92-7840 |
SLEEVE - PROTECTIVE Price: $39.83 |
| 38 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 87 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 88 |
532410710 |
SPRING.LIFT.ASSIST Price: $9.99 |
| 89 |
819191912 |
WASHER.CLEAR.ZINC Price: $2.99 |
| 90 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 91 |
589464807 |
Links This part replaces 532195181. Price: $14.99 |
| 97 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 98 |
581506903 |
Links This part replaces 532195270. Price: $9.99 |
| 100 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
