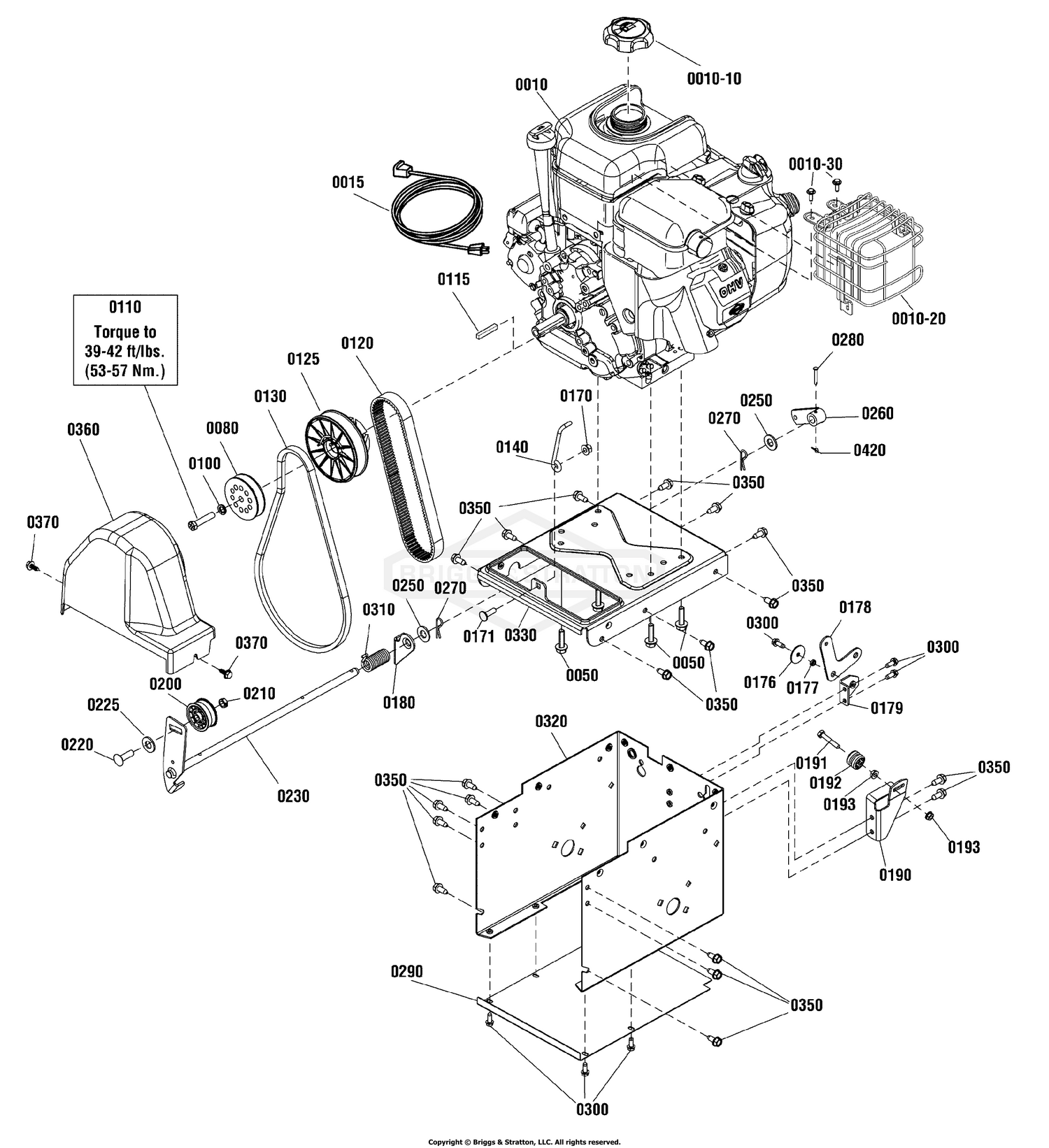

| Ref | Part Number | Description |
|---|
| 0015 |
6219MA |
CORD, Electric, 10FT. 110V Price: $37.42 |
| 0050 |
2828635SM |
SCREW-HEX WSHR HD TAP This part replaces 75246GS. Price: $4.26 |
| 0080 |
1737509YP |
PULLEY ASSEMBLY Price: $42.99 |
| 0100 |
703454 |
LOCKWASHER, SPLIT 3/8 This part replaces 1916965SM. Price: $2.95 |
| 0110 |
703132 |
CAPSCREW, Hex Head, 3/8-24 x 1-3/4 This part replaces 2860768YP. Price: $3.28 |
| 0115 |
2157427SM |
KEY, Parallel Price: $4.75 |
| 0120 |
1754209YP |
BELT, CVT Price: $31.80 |
| 0125 |
1733968YP |
PULLEY ASSEMBLY Price: $71.44 |
| 0130 |
1754211YP |
BELT, Auger, V, 4L Price: $36.18 |
| 0140 |
1737377YP |
STOP, Belt Price: $10.99 |
| 0170 |
703222 |
NUT, Hex KEPS, Conical Washer, 5/16-18 This part replaces 1960684SM. Price: $5.32 |
| 0171 |
703800 |
BOLT, CRRG, 5/16-18X1 This part replaces 1931335SM. Price: $3.19 |
| 0176 |
703136 |
WASHER This part replaces 1960151SM. Price: $3.61 |
| 0177 |
703124 |
SPACER, Powdered Metal This part replaces 1733095SM. Price: $3.51 |
| 0178 |
1737329YP |
BELLCRANK Price: $27.55 |
| 0179 |
1737328AYP |
BRACKET, Lower Price: $11.12 |
| 0180 |
1737297YP |
BRACKET, Support, Auger Idler Price: $8.58 |
| 0190 |
1737347AYP |
BRACKET, Guide Wheel Price: $18.69 |
| 0191 |
5025010X12SM |
BOLT, 1/4-20 This part replaces 1922837SM. Price: $2.65 |
| 0192 |
579860MA |
SPOOL CABLE, Auger Control Price: $5.32 |
| 0193 |
703233 |
NUT, 1/4-20, GR5 This part replaces 192432GS. Price: $3.94 |
| 0200 |
1502120MA |
IDLER, Plastic, Ball Bearing Price: $20.34 |
| 0210 |
703230 |
NUT, 3/18-16, GR2 This part replaces 1960251SM. Price: $4.41 |
| 0220 |
1960268SM |
CARRIAGE BOLT, 3/8-16 x 1-1/4, G5 This part replaces 703227. Price: $3.61 |
| 0225 |
1670971SM |
WASHER, Thrust Price: $3.84 |
| 0230 |
1756662YP |
IDLER ARM, AUGER This part replaces 1737296YP. Price: $53.86 |
| 0250 |
703128 |
WASHER This part replaces 1960027SM. Price: $3.19 |
| 0260 |
1733451SM |
BRACKET & HUB ASSEMBLY, Spring Price: $19.49 |
| 0270 |
703300 |
PIN, 3/32 X 1.6 This part replaces 0031X6MA. Price: $3.50 |
| 0280 |
703313 |
PIN, CLEVIS, ZINC This part replaces 1736381YP. Price: $4.64 |
| 0290 |
1737221BMYP |
PANEL, BOTTOM This part replaces 1737221AYP. Price: $40.82 |
| 0300 |
703054 |
SCREW, 1/4-20X0.625 This part replaces 1927429SM. Price: $3.82 |
| 0310 |
1737350YP |
SPRING, Torsional Price: $7.13 |
| 0320 |
1737106ZYP |
FRAME BOX Price: $104.99 |
| 0350 |
703228 |
SCREW, 5/16-18 X .75 This part replaces 1664847SM. Price: $3.94 |
| 0360 |
1754153YP |
COVER, Belt Price: $44.22 |
| 0370 |
1751355YP |
SCREW, 1/4-20 X 3/4 Price: $6.00 |
