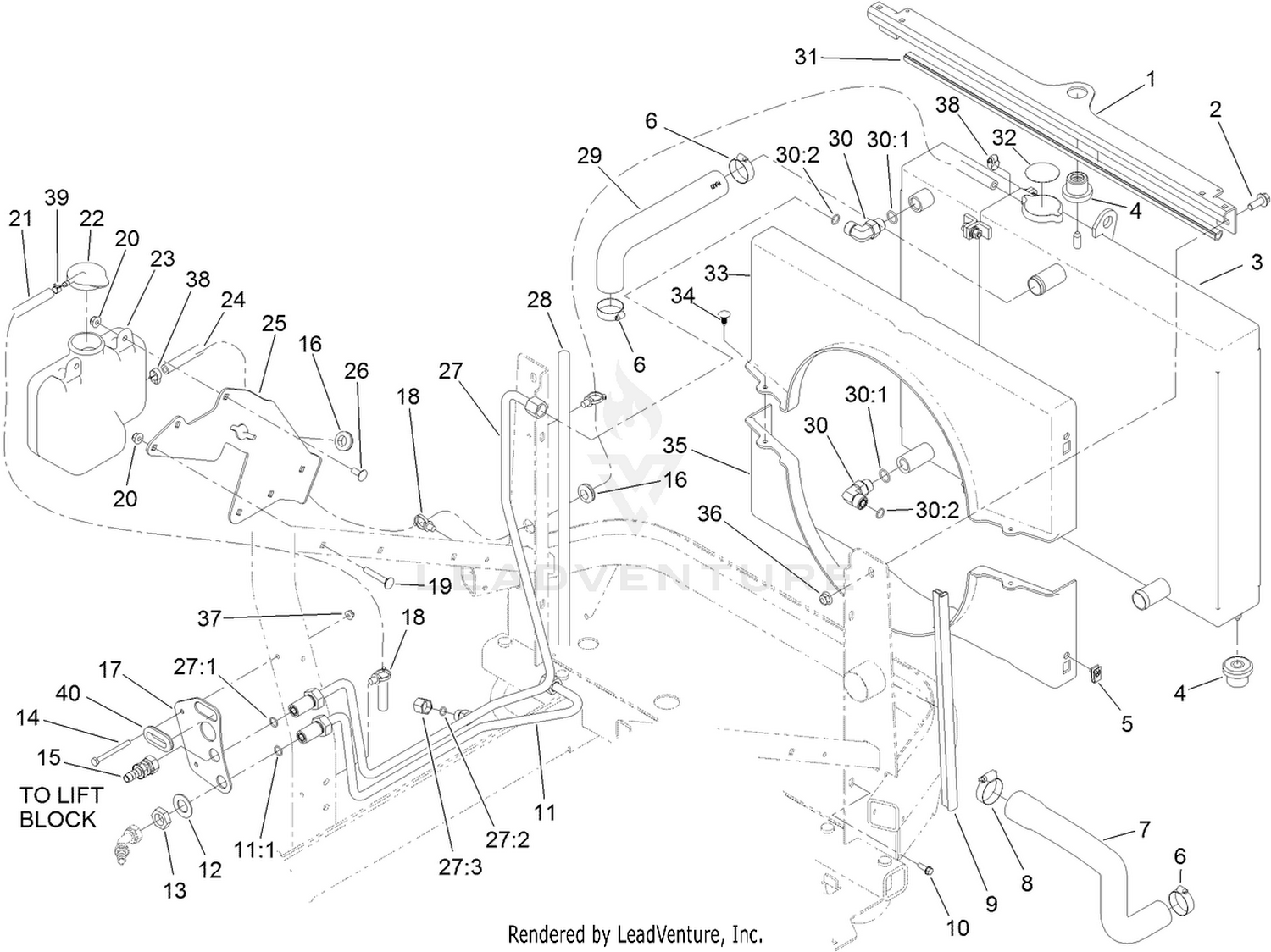

Radiator Assembly
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-0068-03 | BRACKET-COOLING, TOP Price: $55.51 |
| 2 | 3234-42 | SCREW-HHF Price: $1.10 |
| 3 | 121-3330 | COOLING ASM Price: $1,805.58 |
| 4 | 119-1422 | MOUNT-ISOLATOR Price: $19.80 |
| 5 | 107069 | CLIP Price: $1.79 |
| 6 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 7 | 121-3322 | HOSE-RADIATOR, LOWER Price: $76.62 |
| 8 | 2412-3 | CLAMP-HOSE Price: $3.49 |
| 9 | 120-9146 | SEAL-BULB Price: $15.31 |
| 10 | 32105-15 | SCREW-HWH Price: $1.79 |
| 11 | 121-3324 | HYD TUBE ASM Price: $88.88 |
| 12 | 69-8930 | WASHER Price: $0.81 |
| 13 | 340-127 | NUT-BULKHEAD Price: $2.24 |
| 14 | 321-14 | SCREW-HH Price: $0.55 |
| 15 | 121-3373 | HOSE-HYD Price: $98.76 |
| 16 | 237-124 | GROMMET Price: $2.30 |
| 17 | 131-5527 | BRACKET-BULKHEAD Price: $11.43 |
| 18 | 32180-030 | CLIP-TIE Price: $4.19 |
| 19 | 3230-6 | BOLT-CARR Price: $0.59 |
| 20 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 21 | 110-8255 | HOSE-FUEL Price: $18.01 |
| 22 | 1-643164 | CAP-TANK, OVERFLOW Price: $12.97 |
| 23 | 125-2651 | BOTTLE-OVERFLOW Price: $105.88 |
| 24 | 110-3258 | HOSE-FUEL Price: $23.35 |
| 25 | 125-2656-0P | BRACKET-BOTTLE Price: $30.00 |
| 26 | 3230-23 | SCREW-CARR Price: $0.89 |
| 27 | 121-3323 | HYD TUBE ASM Price: $154.84 |
| 28 | 119-1426 | SEAL-BULB Price: $12.29 |
| 29 | 121-3321 | HOSE-RADIATOR, UPPER Price: $85.98 |
| 30 | 340-98 | FITTING-ELBOW, 90 DEG Price: $31.91 |
| 31 | 119-1427 | SEAL-BULB Price: $13.94 |
| 32 | 117-3276 | DECAL-DANGER Price: $10.70 |
| 33 | 121-3312 | SHROUD-TOP Price: $124.81 |
| 34 | 117-2382 | PLUG-PLASTIC Price: $0.69 |
| 35 | 121-3311 | SHROUD-BOTTOM Price: $124.81 |
| 36 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 37 | 104-7201 | NUT-HF Price: $0.69 |
| 38 | 2412-108 | CLAMP-WORM Price: $1.29 |
| 39 | 2412-80 | CLAMP-HOSE Price: $4.39 |
