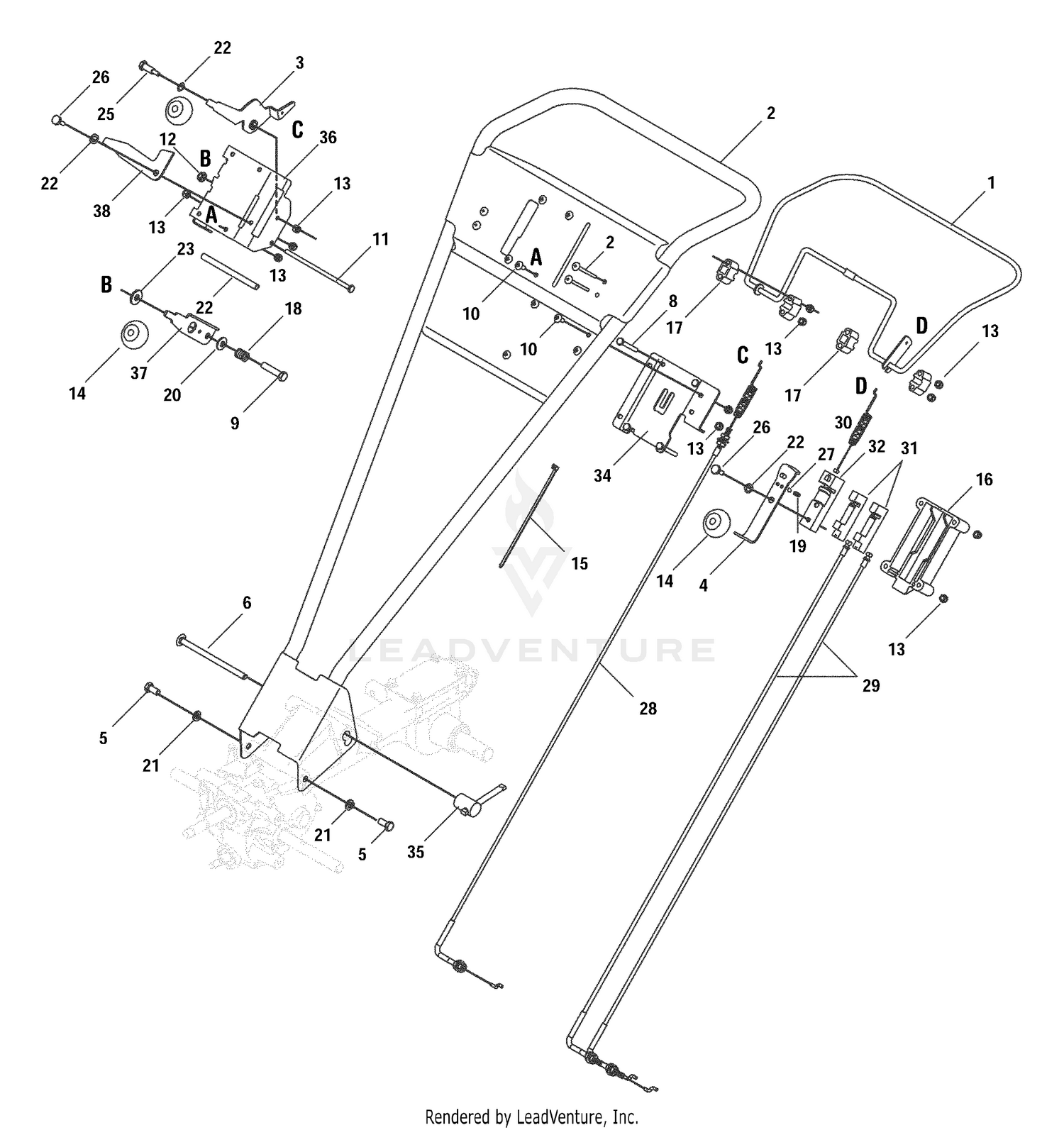

| Ref | Part Number | Description |
|---|
| 1 |
647-04026 |
Bail Assembly, Control, Wheel Price: Call Us |
| 2 |
649-04014 |
Handle Assembly, Loop Price: Call Us |
| 3 |
686-04038 |
Lever Assembly, Control, Tine Price: Call Us |
| 4 |
686-04040 |
Lever Assembly, Pivot Price: Call Us |
| 5 |
710-0216 |
Hex Screw, 3/8-16,.75, Gr5 Price: $3.93 |
| 6 |
710-04198 |
Screw, Carriage, 3/8-16, 6.00, Gr5 Price: Call Us |
| 7 |
710-04202 |
Screw, Machine, 1/4-20, 2.500 Price: Call Us |
| 8 |
710-0501 |
Hex Screw, 1/4-20, 2.0, Gr5 Price: $6.24 |
| 9 |
710-0539 |
Hex Screw, 3/8-24, 1.75, Gr5 Price: $3.95 |
| 10 |
710-0946 |
Screw, Machine, 1/4-20, 0.625 Price: $3.24 |
| 11 |
710-1656 |
SCREW 1/4-20 x 6.00 GR5 Not Available Price: |
| 12 |
712-0116 |
Nut, Jam Lock, 3/8-24, Gr5, Nylon Price: $3.95 |
| 13 |
712-0324 |
Nut, Hex Lock, 1/4-20, Gr8, Nylon Price: $3.38 |
| 14 |
720-04039 |
Knob, Shift Price: $9.09 |
| 15 |
725-0157 |
Cable, Tie, 3/16 x.05 x 7.4 Price: $3.46 |
| 16 |
731-04616 |
Box, Control, Select, Tine Price: Call Us |
| 17 |
731-04644 |
Block, Mounting, Bail Price: Call Us |
| 18 |
732-0193 |
Spring, Compression,.39x.60 x.88 Lg Price: $4.11 |
| 19 |
732-0590A |
DRIVE SPRING Not Available Price: |
| 20 |
736-0105 |
Washer, Bell,.375 x.870 x.063 Price: $3.96 |
| 21 |
736-0169 |
Washer, Lock, 3/8, Regular Duty Price: $3.33 |
| 22 |
736-0413 |
Washer, Spring, .39 x .625 x .012 This part replaces 736-3012. Price: $6.01 |
| 23 |
736-3052 |
Washer, Flat,.406 x 1.00 x.105 Price: $4.02 |
| 25 |
738-04072 |
Screw, Shoulder,.373 x.830, 1/4-20 Price: Call Us |
| 26 |
738-04088 |
Screw, Shoulder,.373 x.180 x 1/4-20 Price: Call Us |
| 27 |
741-0862 |
DETENT BALL .250 Price: $3.90 |
| 28 |
746-04098 |
Cable, Clutch, Drive, Wheel Price: Call Us |
| 29 |
746-04099 |
Cable, Clutch, Drive, Tine Price: Call Us |
| 30 |
746-04100 |
Cable, Engagement, Tine Price: Call Us |
| 31 |
746-04107 |
Block, Control, Select, Tine Price: Call Us |
| 32 |
746-04108 |
Block, Control, Engage, Tine Price: Call Us |
| 33 |
750-04226 |
Spacer,.270 x.375 x 5.00 Lg Price: Call Us |
| 34 |
786-04162 |
Bracket, Mounting, Control Price: Call Us |
| 35 |
786-04199 |
Crank, Adjustment, Handle Price: Call Us |
| 36 |
786-04212 |
Bracket, Mounting, Control Price: Call Us |
| 37 |
786-04213 |
Lever, Shift Price: Call Us |
