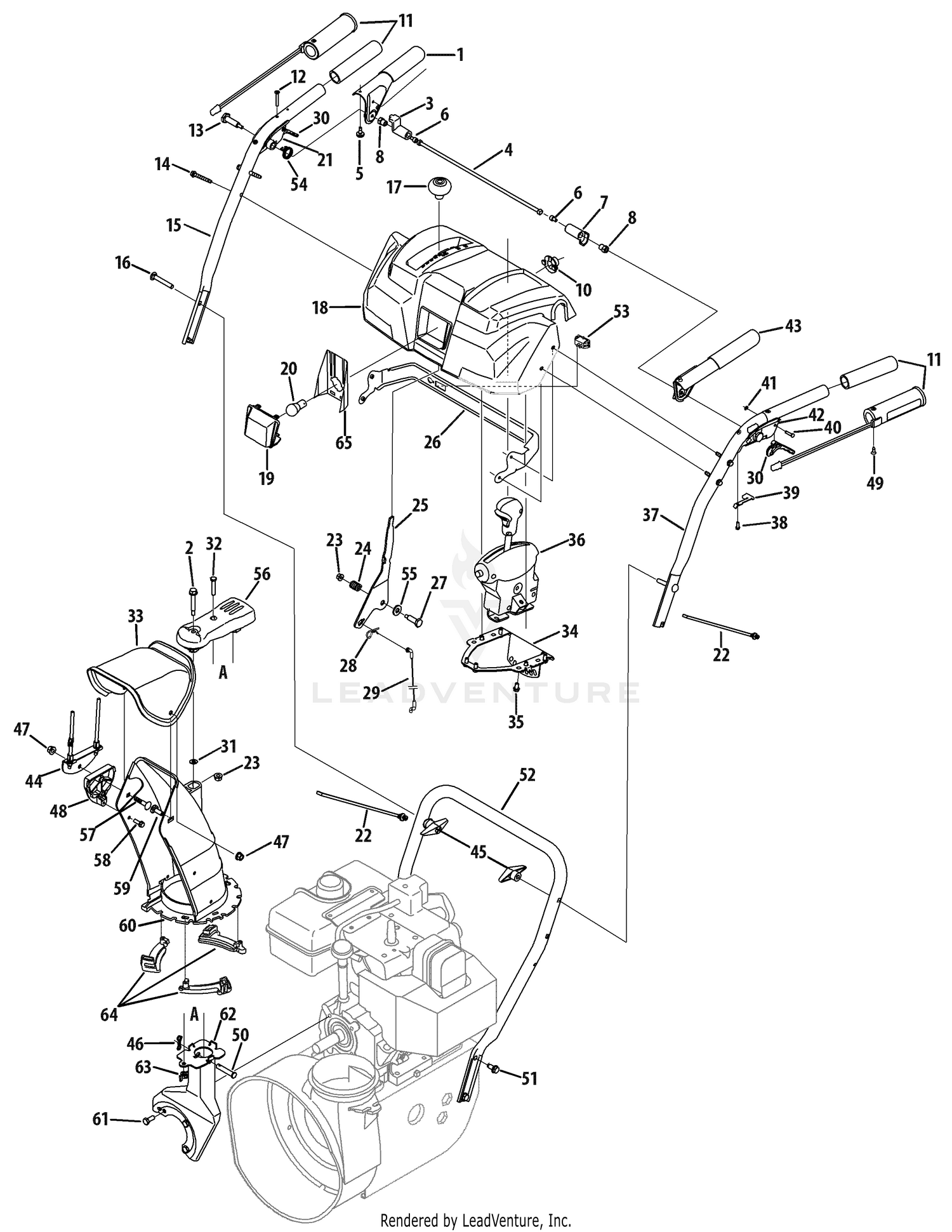

| Ref | Part Number | Description |
|---|
| 1 |
684-04106D |
HANDLE ASSEMBLY (RH) This part replaces 684-04106B. Price: $19.00 |
| 2 |
738-04194 |
Flange Shoulder Screw Price: $5.48 |
| 3 |
731-04894D |
Plate, Lock This part replaces 731-04894C. Price: $4.61 |
| 4 |
684-04250 |
Pivot Rod Price: $11.00 |
| 5 |
735-0199A |
Rubber Bumper Price: $6.89 |
| 6 |
710-04354 |
Screw, 1/4-20 x.375 Price: $3.38 |
| 7 |
731-04896C |
CLUTCH LOCK CAM This part replaces 731-04896B. Price: $3.56 |
| 8 |
712-04081A |
Shoulder Nut, 1/4-20 Price: $6.49 |
| 9 |
725-04216B |
Heated Grips Harness (Not Shown) This part replaces 725-04216A. Price: $66.71 |
| 10 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 725-1649. Price: $10.30 |
| 11 |
720-0274 |
Handle Grip Price: $9.99 |
| 11 |
725-1757 |
Heated Handle Grip Price: $97.54 |
| 12 |
710-1233 |
Screw, #10-24 x 0.375 Price: $3.95 |
| 13 |
738-04348 |
Screw, Shoulder, .437 x 1.345 x 1/4-20 This part replaces 738-04122. Price: $3.14 |
| 14 |
710-04586 |
Screw, 1/4-20 x 1.625 Price: $6.07 |
| 15 |
749-04190A |
Upper Handle RH Price: $34.62 |
| 16 |
710-0572 |
Carriage Bolt 5/16-18 x 2.5" This part replaces 710-0449. Price: $3.75 |
| 17 |
720-04039 |
Shift Knob Price: $9.09 |
| 18 |
931-04183 |
Handle Panel Black, includes 39 & 40 This part replaces 731-05347. Price: $95.51 |
| 19 |
731-05319 |
Lens Price: $12.25 |
| 20 |
925-04213 |
Lamp This part replaces 725-04213. Price: $4.30 |
| 21 |
631-04134B |
Handle Clutch Lock - RH Price: $13.42 |
| 22 |
725-0157 |
Cable Tie Price: $3.46 |
| 23 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 24 |
732-0193 |
Compression Spring Price: $4.11 |
| 25 |
790-00311C-0637 |
Shift Lever This part replaces 790-00311. Price: $24.22 |
| 26 |
790-00248E-0637 |
HANDLE SUPPORT BRACKET This part replaces 790-00248A. Price: $21.49 |
| 27 |
738-04125 |
Shoulder Screw Price: $4.08 |
| 28 |
714-0145 |
Click Pin Price: $4.42 |
| 29 |
946-04396A |
Speed Selector Cable This part replaces 746-04396. Price: $18.04 |
| 30 |
731-04954 |
Steering Triggers Price: $5.18 |
| 31 |
736-0463 |
Flat Washer, .25 x .630 x .0515 Price: $3.91 |
| 32 |
710-0606 |
Hex Screw, 1/4-20 x 1.50 Price: $4.67 |
| 33 |
731-04427B |
UPPER REMOTE CHUTE WITH LABEL This part replaces 731-04427A. Price: $14.55 |
| 34 |
790-00131A-0637 |
LOCK CONTROL BRACKET Not Available This part replaces 790-00131. Price: |
| 35 |
710-04187A |
HEX SCREW 1/4-15 x .50 This part replaces 710-04187. Price: $5.99 |
| 36 |
753-08388A |
SERVICE KIT 4-WAY CHUTE CONTROL Not Available This part replaces 684-04116B. Price: |
| 37 |
749-04191A |
Upper Handle LH Price: $34.63 |
| 38 |
710-04326 |
Screw, #8-16 x 0.50 Price: $3.37 |
| 39 |
732-04219C |
Clutch Lock Spring This part replaces 732-04219A. Price: $3.70 |
| 40 |
738-04126 |
Pin, 3/16 Price: $3.43 |
| 41 |
716-04036 |
E Ring Price: $5.34 |
| 42 |
631-04133A |
Handle Clutch Lock - LH Price: $13.42 |
| 43 |
684-04105D |
HANDLE ASSEMBLY (LH) This part replaces 684-04105B. Price: $20.10 |
| 44 |
784-5594 |
Cable Bracket Price: $9.44 |
| 45 |
720-0284 |
Wing Knob Price: $4.08 |
| 46 |
714-04040 |
Bow Tie Cotter Pin Price: $1.28 |
| 47 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 48 |
731-1313C |
Chute Tilt Cable Guide Price: $10.46 |
| 49 |
710-0837 |
AB Screw Price: $3.85 |
| 50 |
711-04469A |
Clevis Pin Price: $5.15 |
| 51 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 52 |
749-04138A |
Lower Handle Price: $77.98 |
| 53 |
725-04393 |
Heated Grips Switch Price: $14.90 |
| 54 |
732-04238B |
Torsion Spring, 0.8156 x .3038 This part replaces 732-04238. Price: $4.66 |
| 55 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 56 |
753-04875P |
ROTATION PUL ASM S/T JOYSTICK KIT This part replaces 731-04890A. Price: $106.38 |
| 57 |
710-0262 |
Carriage Bolt, 5/16-18 x 1.50 Price: $3.66 |
| 58 |
710-0895 |
Hi-Lo Screw, 1/4-15 x .75 Price: $5.82 |
| 59 |
710-04071 |
Carriage Bolt, 5/16-18 x 1.0 Price: $3.94 |
| 60 |
731-04861B |
Lower Chute Price: $38.04 |
| 61 |
710-0627 |
Hex Screw, 5/16-24 x .750 Price: $3.68 |
| 62 |
684-04162B-0637 |
CHUTE SUPPORT BRACKET ASSEMBLY (POWDER BLACK) Not Available This part replaces 684-04162B. Price: |
| 63 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 64 |
731-04869A |
FLANGE KEEPER CHUTE This part replaces 731-04869. Price: $3.85 |
