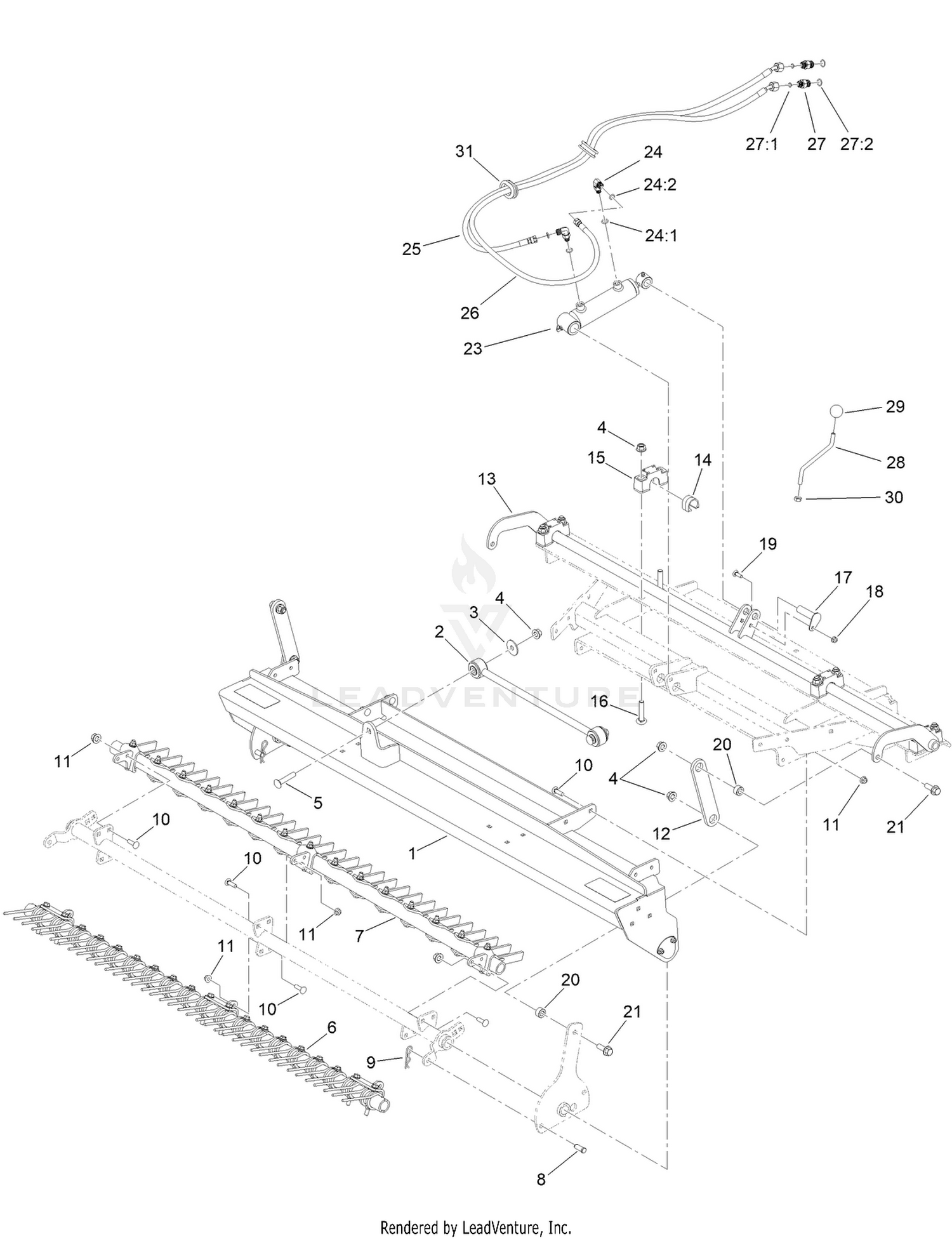

| Ref | Part Number | Description |
|---|
| 1 |
144-7590 |
RAKE TOOLS ASM Price: Call Us |
| 2 |
109-5013 |
PANHARD ROD ASM Price: $135.99 |
| 3 |
86-1990 |
WASHER-THRUST Price: $1.81 |
| 4 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 5 |
3233-34 |
SCREW-CARR Price: $7.98 |
| 6 |
145-4210 |
SPRING TINE BAR ASM Price: $1,158.73 |
| 7 |
145-4212 |
SCARIFIER TINE ASM Price: $1,158.73 |
| 8 |
147-3765 |
PIN-CLEVIS Price: $11.94 |
| 9 |
119-1416 |
PIN-COTTER, LOCKING Price: $0.64 |
| 10 |
3231-28 |
SCREW-CARR Price: $1.92 |
| 11 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 12 |
144-7557 |
PLATE-LINK Price: $17.72 |
| 13 |
144-7586-03 |
RAKE-TURN Price: $304.27 |
| 14 |
109-9410 |
BEARING-CROSS SHAFT, FRONT Price: $3.29 |
| 15 |
109-9409 |
SUPPORT-BEARING, CROSS SHAFT (FRONT) Price: $13.99 |
| 16 |
116-1700 |
BOLT-CARR Price: $3.49 |
| 17 |
140-6323 |
PIN Price: $17.64 |
| 18 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 19 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 20 |
116-2959 |
SPACER Price: $3.99 |
| 21 |
100-6116 |
SCREW-HHF Price: $6.41 |
| 23 |
163-3535 |
CYLINDER-HYDRAULIC This part replaces 138-6941. Price: $582.35 |
| 24 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 25 |
144-7642 |
HYDRAULIC HOSE ASM Price: $96.12 |
| 26 |
144-7643 |
HYDRAULIC HOSE ASM Price: $106.70 |
| 27 |
147-3321 |
FITTING-STRAIGHT Price: $94.18 |
| 28 |
144-7311 |
HANDLE-VALVE, CONTROL Price: $39.69 |
| 29 |
144-7313 |
KNOB-BALL Price: $9.12 |
| 30 |
48-7960 |
NUT This part replaces 33015-00. Price: $1.40 |
