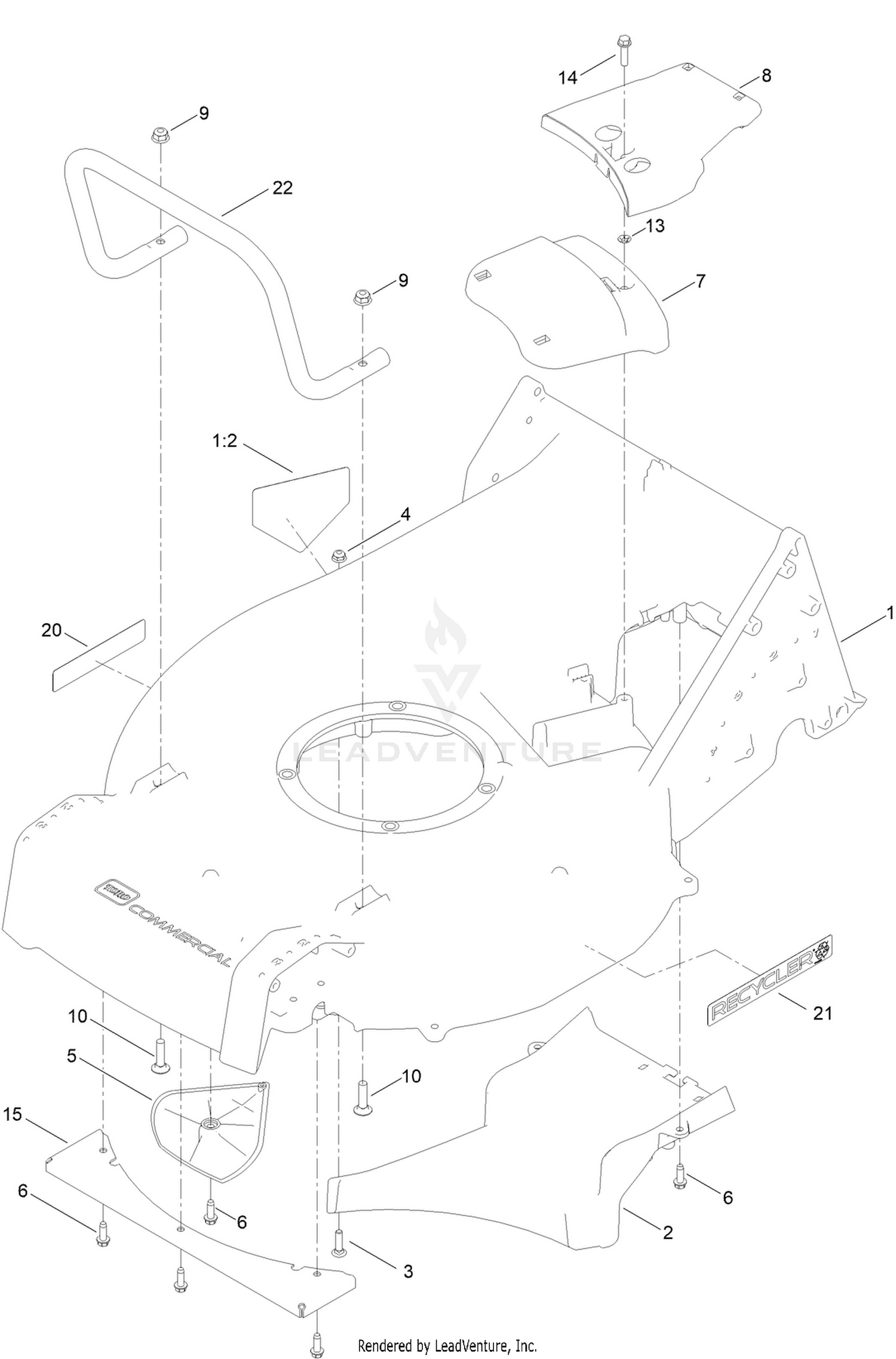

Deck Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-5897 | HOUSING ASM Price: $254.99 |
| 2 | 125-1002-01 | FLOOR-CHUTE Price: $55.99 |
| 3 | 3229-2 | SCREW-CARR Price: $2.89 |
| 4 | 104-7201 | NUT-HF Price: $0.69 |
| 5 | 125-5041 | KICKER Price: $7.59 |
| 6 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 7 | 125-5038 | COVER-BELT, FRONT Price: $10.99 |
| 8 | 125-8380 | COVER-BELT, REAR Price: $10.99 |
| 9 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 10 | 3230-3 | SCREW-CARR Price: $0.53 |
| 13 | 32115-15 | PUSHNUT-RETAINER, BOLT Price: $0.99 |
| 14 | 32144-86 | SCREW-HWHTF Price: $1.29 |
| 15 | 125-8435-03 | GUARD-TOE, FRONT Price: $19.99 |
| 20 | 125-8420 | DECAL Price: $3.09 |
| 21 | 119-2368 | DECAL-RECYCLER Price: $5.59 |
