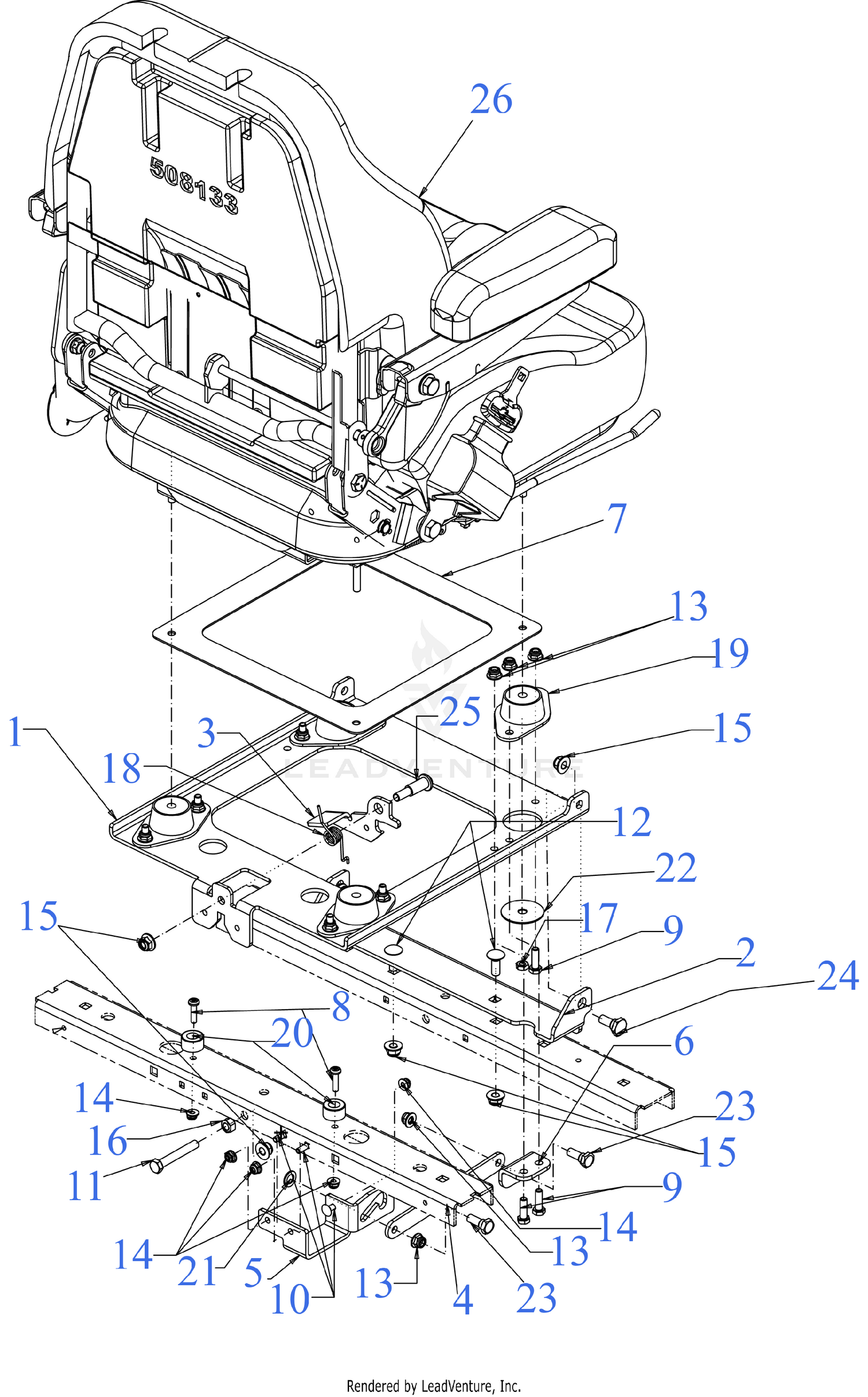

| Ref | Part Number | Description |
|---|
| 4 |
703E10273 |
SEAT LOCKOUT BRACKET Price: $21.73 |
| 5 |
703E10274 |
SEAT LOCKOUT MOUNT Price: $23.69 |
| 8 |
710-0166A |
MACHINE SCREW 1/4-20:1 Price: $6.24 |
| 9 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 10 |
710-0703 |
SCREW 1/4-20 x .75 GR5 Price: $3.66 |
| 11 |
710-3022 |
SCREW 3/8-16 x 2.75 GR5 Price: $4.09 |
| 12 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Price: $3.61 |
| 13 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 14 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 15 |
712-04065 |
NUT Price: $3.68 |
| 16 |
712-3017 |
HEX NUT 3/8-16 GR5 Price: $3.90 |
| 17 |
712-3046 |
HEX NUT TOP LOCK 5/16-18 GR 8 Price: $6.06 |
| 18 |
732-05392 |
TORSION SPRING Price: $5.52 |
| 19 |
735-05128 |
SEAT MOUNT Price: $52.57 |
| 20 |
735-05147 |
BUMPER Price: $4.59 |
| 21 |
736-3024 |
FLAT WASHER .469X.750X.054 Price: $3.19 |
| 22 |
736-3040 |
HUB CAP WASHER .406 x 1.92 x .060 Price: $5.52 |
| 23 |
738-0296 |
SHOULDER SCREW .437 Price: $3.93 |
| 24 |
738-0380 |
SHOULDER SCREW Price: $7.34 |
| 25 |
738-0966A |
SHOULDER SCREW .50X.925 Price: $4.08 |
