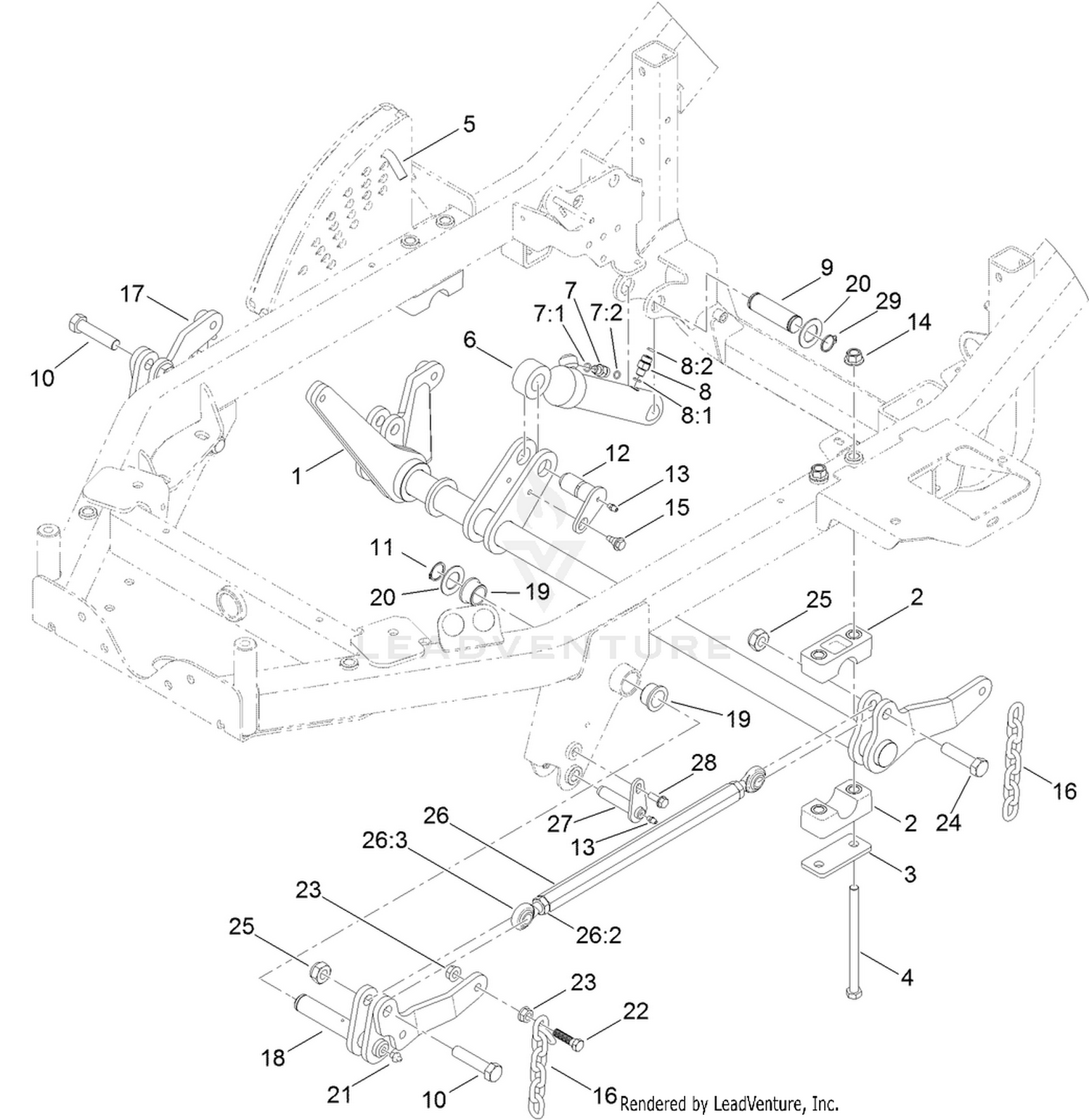

Lift Shaft and Linkage Assembly
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-0190-03 | SHAFT-LIFT Price: $677.87 |
| 2 | 115-0491 | CAP-BEARING Price: $56.97 |
| 3 | 117-2903 | PLATE-BEARING Price: $9.22 |
| 4 | 325-37 | SCREW-HH Price: $2.57 |
| 5 | 112-9544 | PIN-HOC Price: $6.66 |
| 6 | 110-9834 | HYD CYLINDER ASM Price: $647.03 |
| 7 | 340-92 | FITTING-STRAIGHT Price: $12.29 |
| 8 | 95-1639 | FITTING-STR,ORIF Price: $63.47 |
| 9 | 115-0183 | SHAFT-CYLINDER, LIFT Price: $25.26 |
| 10 | 327-8 | SCREW-HH Price: $5.97 |
| 11 | 32151-29 | RING-RETAINING Price: $3.59 |
| 12 | 125-1910 | PIN-PIVOT Price: $24.50 |
| 13 | 302-5 | FITTING-GREASE Price: $0.59 |
| 14 | 99-5107 | NUT-LOCK Price: $1.77 |
| 15 | 99-5105 | BOLT-SHOULDER Price: $5.89 |
| 16 | 119-1385 | CHAIN-HOC Price: $10.05 |
| 17 | 119-1380-03 | LIFT-RH Price: $140.22 |
| 18 | 119-1383-03 | LIFT-LH Price: $147.86 |
| 19 | 114-5680 | BUSHING-FLANGE Price: $3.90 |
| 20 | 69-9010 | WASHER Price: $1.83 |
| 21 | 302-2 | FITTING-GREASE Price: $1.89 |
| 22 | 103-1898 | SCREW-HH Price: $1.79 |
| 23 | 32128-37 | NUT-HF Price: $3.63 |
| 24 | 327-7 | SCREW-HH Price: $5.69 |
| 25 | 3296-61 | NUT-LOCK Price: $14.99 |
| 26 | 114-4059 | LINK ASM Price: $91.43 |
| 27 | 112-1602 | PIN-RETAINER Price: $60.94 |
| 28 | 32144-41 | SCREW-TAPTITE Price: $4.79 |
