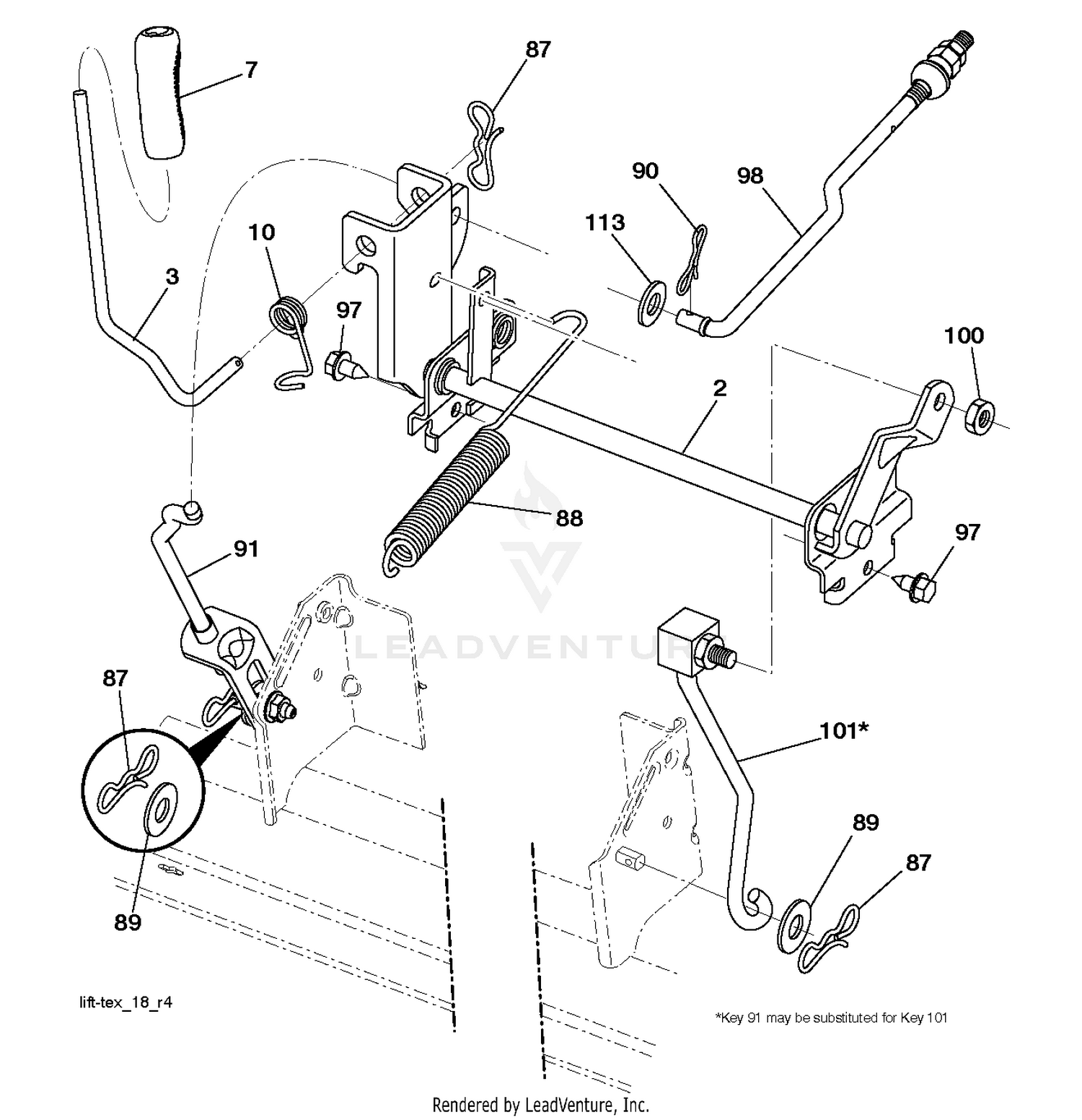

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
532422027 |
SHAFT.ASM.CROSS.LIFT Price: $49.99 |
| 3 |
32146-20 |
NUT-HEX Price: $3.23 |
| 3 |
532195231 |
LEVER.LIFT.HANDLE.LT Price: $28.99 |
| 4 |
99-6940-03 |
AXLE SUPPORT ASM Price: $974.39 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 6 |
237-165 |
GROMMET Price: $15.70 |
| 7 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK This part replaces 580962301. Price: $2.99 |
| 8 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 9 |
140-6101 |
PIN ASM-AXLE PIVOT This part replaces 98-8173-03. Price: $42.42 |
| 10 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $2.99 |
| 10 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 11 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 12 |
99-8431 |
WASHER-THRUST Price: $4.63 |
| 13 |
99-8432 |
WASHER-THRUST Price: $4.21 |
| 87 |
532194209 |
PIN.COTTER.7/16.BOW TI Price: $1.99 |
| 88 |
532410710 |
SPRING.LIFT.ASSIST Price: $4.99 |
| 89 |
819191912 |
WASHER.CLEAR.ZINC Price: $3.49 |
| 90 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 91 |
532195181 |
LINK.ASM.LIFT.REAR Price: $33.99 |
| 97 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 98 |
532195264 |
LINK.ASM.SUSP.FRONT.MWR.10.5 Price: $14.99 |
| 100 |
873680600 |
Nut This part replaces 873930600. Price: $1.99 |
| 101 |
532407003 |
LINK.ASM.LIFT.FIXE.38/42/46" Price: $11.99 |
