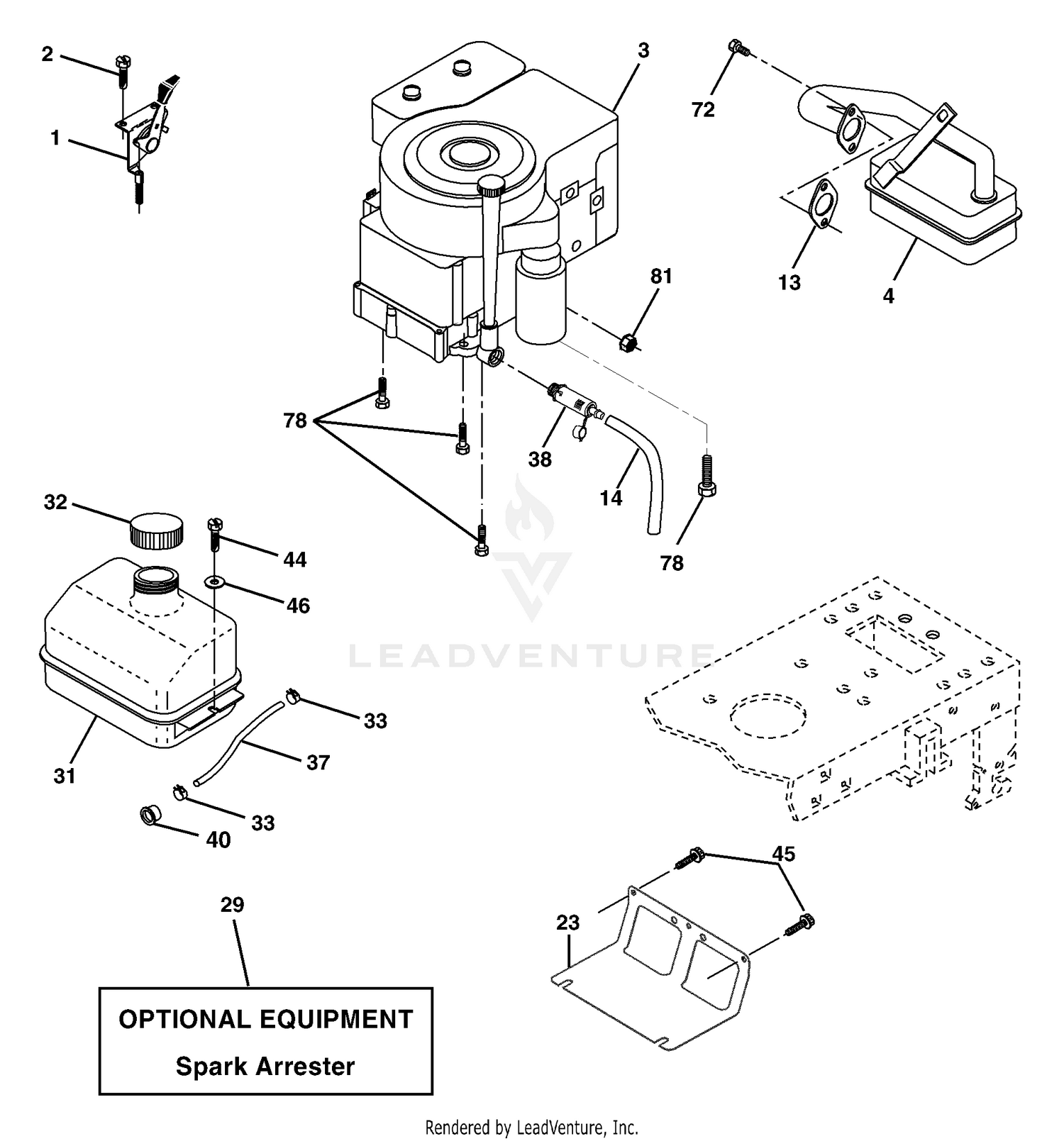

| Ref | Part Number | Description |
|---|
| 1 |
170551 |
Control Throttle /Choke Flag Price: Call Us |
| 1 |
98-2354-03 |
LATCH-SEAT Price: $41.34 |
| 2 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 2 |
98-2353 |
BRACKET-LATCH, SEAT Price: $17.71 |
| 3 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 4 |
105-7528 |
DECAL-INFORMATION, SOLENOID Price: $40.89 |
| 4 |
137352 |
Muffler Exhaust B&S Lt Price: Call Us |
| 5 |
98-9302 |
PLATE-STOP, IDLER Price: $12.42 |
| 6 |
66-4190-03 |
SPRING-IDLER, CLUTCH Price: $7.20 |
| 7 |
105-4674 |
DECAL-NOISE Price: $4.80 |
| 8 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 10 |
25-8640 |
SCREW-HH Price: $1.09 |
| 11 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 12 |
98-9311 |
SWIVEL-THROTTLE Price: $28.41 |
| 13 |
165291 |
Gasket 1 313 Id Tin Plated Price: Call Us |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 14 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 16 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 17 |
110-4149 |
KIT-SEAT PLATE This part replaces 98-2350-03. Price: $166.30 |
| 18 |
106-9224 |
DECAL-DANGER Price: $4.87 |
| 19 |
233-42 |
KNOB Price: $12.88 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
98-3926 |
CABLE-THROTTLE Price: $32.00 |
| 22 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 23 |
169837 |
Shield Browning/Debris Guard Price: Call Us |
| 23 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
98-2352-03 |
FRAME-SEAT Price: $456.00 |
| 25 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 26 |
93-0021 |
SWIVEL-CABLE, THROTTLE Price: $33.15 |
| 27 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 28 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 29 |
137180 |
Arrestor Spark Price: Call Us |
| 29 |
321-4 |
SCREW-HH Price: $0.99 |
| 30 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 31 |
184900 |
Tank Fuel 1 25 Fr Price: Call Us |
| 31 |
75-3680-03 |
ROD-SEAT Price: $38.90 |
| 32 |
140527 |
Cap Asm Fuel W/sym Vented Price: Call Us |
| 33 |
123487X |
Clamp Hose Blk Price: Call Us |
| 37 |
137040 |
Line Fuel 20" Price: Call Us |
| 38 |
181654 |
Plug Drain Oil Easy Price: Call Us |
| 40 |
124028X |
Bushing Snap Nyl Blk Fuel Line Price: Call Us |
| 44 |
17670412 |
Screw Hexwsh Thdrol 1/4-20 x 3/4 Price: Call Us |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 46 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 72 |
183906 |
Screw Socket Head 5/16-18 x 1 Price: Call Us |
| 78 |
17060620 |
Screw Thdrol 3/8-16 x 1-1/4 Price: Call Us |
