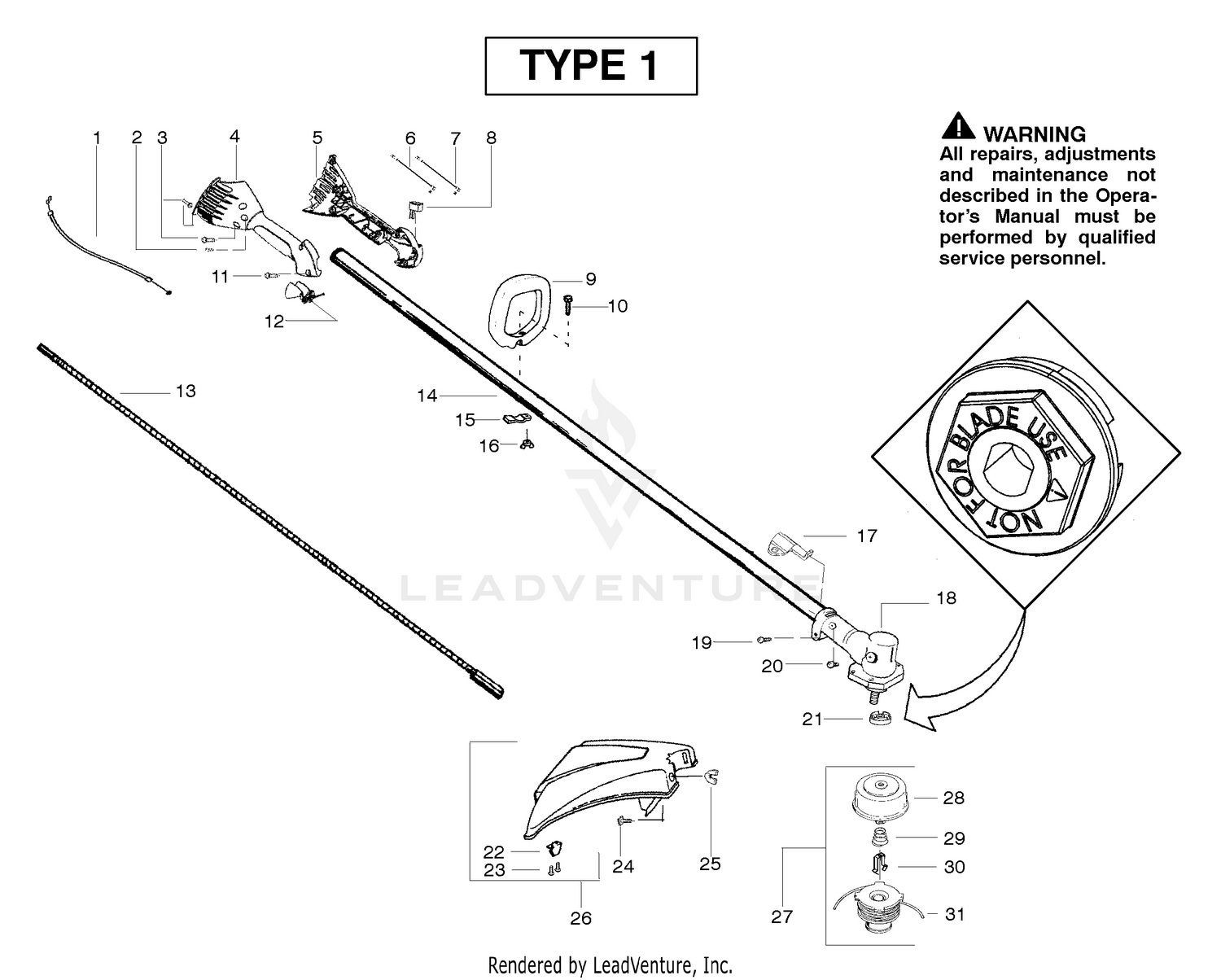

| Ref | Part Number | Description |
|---|
| 1 |
124-2690 |
Clamp Plate Price: Call Us |
| 1 |
530054942 |
Assy-Throttle cable Price: $3.99 |
| 2 |
32121-9 |
PIN-ROLL, SLOTTED Price: $2.56 |
| 2 |
530015805 |
Screw-alignment Price: $1.99 |
| 3 |
39-4370 |
JACKSHAFT Price: $548.06 |
| 3 |
530015886 |
Screw Price: $1.99 |
| 4 |
3257-8 |
KEY-WOODRUFF Price: $4.56 |
| 4 |
530054837 |
Throttle Hsg.-Right Price: $6.99 |
| 5 |
251-77 |
COLLAR-LOCK, BEARING Price: $10.22 |
| 5 |
530071553 |
Kit-Left Throttle Hsg. Price: $7.99 |
| 6 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 6 |
530054943 |
Assy-Front wire Price: $1.99 |
| 7 |
39-4310 |
DISCONTINUED Price: Call Us |
| 7 |
530055724 |
Assy- Front Wire (upper) Price: $4.99 |
| 8 |
3217-6 |
NUT-HEX Price: $1.19 |
| 8 |
530069572 |
Kit-Switch Price: $4.99 |
| 9 |
3253-24 |
WASHER-LOCK/SP Price: $0.37 |
| 10 |
251-287 |
DISCONTINUED Price: Call Us |
| 10 |
530015820 |
Bolt Price: $1.99 |
| 11 |
251-253 |
BEARING Price: $22.84 |
| 11 |
530015886 |
Screw Price: $1.99 |
| 12 |
39-4340 |
DISCONTINUED Price: Call Us |
| 12 |
530054940 |
Trigger-Throttle Price: $1.99 |
| 13 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 13 |
530095963 |
Shaft-Flex Price: $17.99 |
| 14 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 14 |
530055355 |
Assy-Driveshaft Price: $37.99 |
| 15 |
39-4350 |
DISCONTINUED Price: Call Us |
| 15 |
530088416 |
Clamp-Assist Handle Price: $2.99 |
| 16 |
39-4600 |
DISCONTINUED Price: Call Us |
| 16 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 17 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 17 |
530095812 |
Bracket-Shield Price: $1.99 |
| 18 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 18 |
530071584 |
Assy.-Gearbox non blade Price: $49.99 |
| 19 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 19 |
530016014 |
Screw Price: $1.99 |
| 20 |
23-9930 |
DISCONTINUED Price: Call Us |
| 20 |
530016224 |
Screw Price: $1.99 |
| 21 |
25-1350 |
PIN-PLAIN Price: $174.74 |
| 21 |
530095814 |
Non-Blade Dust cup Price: $4.99 |
| 22 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 22 |
530052285 |
Limiter-Line Price: $1.99 |
| 23 |
323-12 |
SCREW-HH Price: $1.14 |
| 23 |
530015805 |
Screw Price: $1.99 |
| 24 |
29-4730 |
WASHER-FLAT Price: $13.10 |
| 24 |
530015820 |
Bolt Price: $1.99 |
| 25 |
37-5610 |
DISCONTINUED Price: Call Us |
| 25 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 26 |
39-4380 |
DISCONTINUED Price: Call Us |
| 27 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 28 |
283-42 |
PIN-CLEVIS Price: $40.05 |
| 28 |
530095772 |
Assy.-Hub/Arbor (3/8lh, 2x) Price: $5.42 |
| 29 |
39-4390 |
DISCONTINUED Price: Call Us |
| 29 |
530053241 |
Spring-Return Price: $1.99 |
| 30 |
3242-2 |
SCREW-SQH Price: $1.29 |
| 30 |
530401957 |
Retainer-Spool Price: $1.99 |
| 31 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 31 |
952711551 |
Accy--Spool w/Line This part replaces 952711580. Price: $8.95 |
| 32 |
3290-255 |
PIN-COTTER, HAIR Price: $7.89 |
| 33 |
39-4220 |
DISCONTINUED Price: Call Us |
| 34 |
5-3505-01 |
PIN This part replaces 5-3505. Price: $74.63 |
| 35 |
24-2680-01 |
DISCONTINUED This part replaces 24-2680. Price: Call Us |
| 36 |
323-14 |
SCREW-HH Price: $1.34 |
