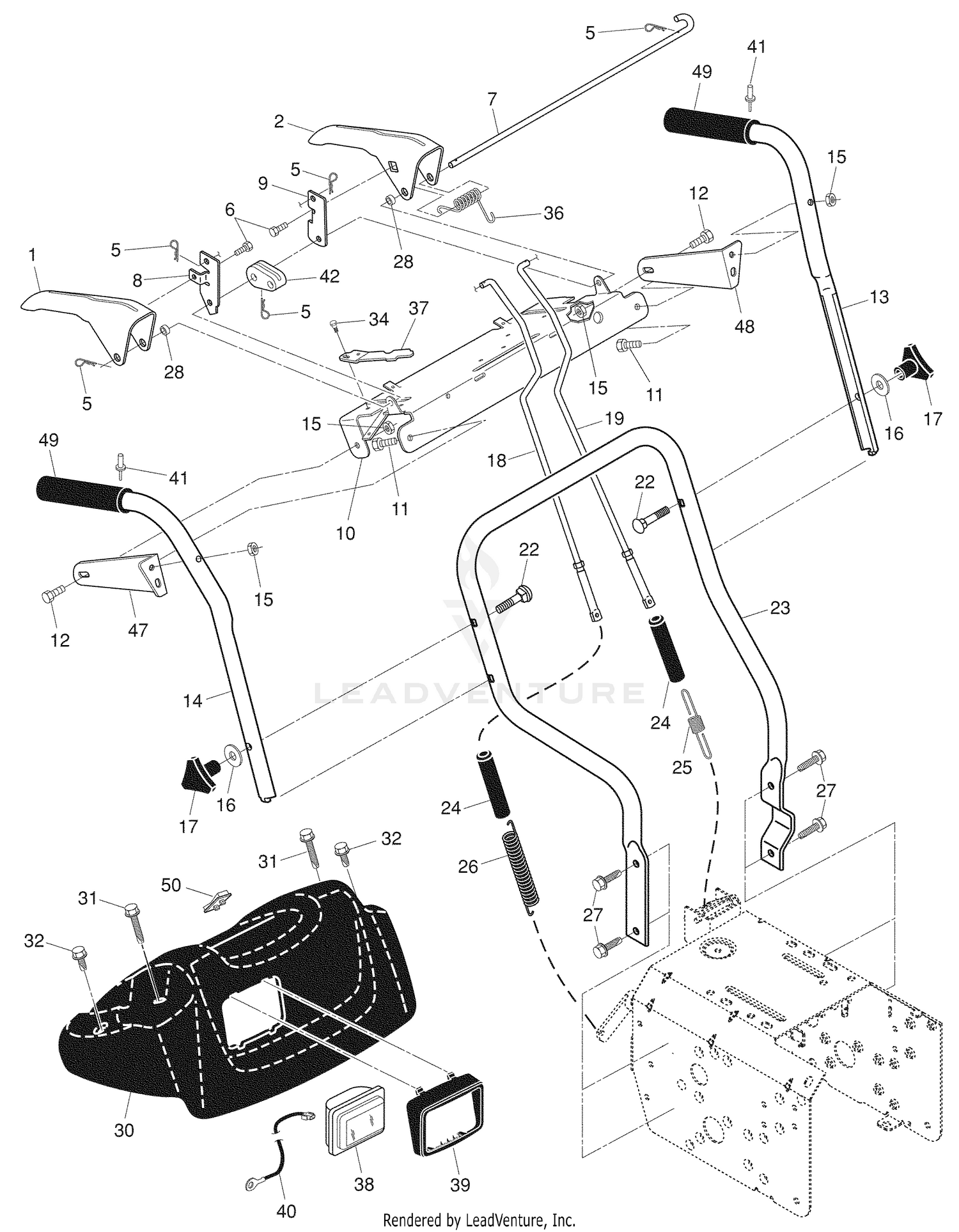

| Ref | Part Number | Description |
|---|
| 1 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 1 |
580687702 |
LEVER.CONTROL.RH.PNT.BLACK This part replaces 532415542. Price: $19.99 |
| 2 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 2 |
580687802 |
LEVER.CONTROL.LH.BLACK This part replaces 532415541. Price: $24.99 |
| 3 |
49-6440-03 |
PEDAL-FORWARD Price: $84.90 |
| 4 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 5 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 5 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 6 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 6 |
817060408 |
SCREW Price: $4.99 |
| 7 |
532412677 |
BAIL.CONTROL.INTERLOCK Price: $12.99 |
| 7 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 8 |
532429098 |
ARM.IMPELLER.ROD.SNOW This part replaces 532199576. Price: $3.99 |
| 8 |
75-6490 |
LEVER ASM Price: $78.45 |
| 9 |
233-42 |
KNOB Price: $12.88 |
| 9 |
532415546 |
ARM.TRACTION.ROD.YZ Price: $3.99 |
| 10 |
585198802 |
PANEL.CONTROL.SNOW.BLACK This part replaces 532415539. Price: $34.99 |
| 11 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 11 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 12 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 12 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 13 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 13 |
532414517 |
TUBE.HANDLE.PLOW.LH.PNT This part replaces 532415236. Price: $28.99 |
| 14 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 14 |
532414516 |
TUBE.HANDLE.PLOW.RH.PNT This part replaces 532415237. Price: $29.99 |
| 15 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 15 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 16 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 16 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
532178899 |
KNOB.HANDLE.3/8.TRI-POINT.BLAC Price: $4.99 |
| 18 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 18 |
532180480 |
ROD.ASM.IMPELLER Price: $24.99 |
| 19 |
322-3 |
SCREW-HH Price: $0.79 |
| 19 |
532405740 |
ROD.ASM.TRACTION Price: $27.99 |
| 20 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 22 |
872120618 |
BOLT 3/8-16 X 2-1/4 Price: $5.99 |
| 23 |
532184087 |
TUBE.LOWER.HANDLE.24.BLACK Price: $59.99 |
| 23 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 24 |
532180447 |
SLEEVE, SPRING Price: $5.99 |
| 24 |
63-7733 |
LH BRAKE CABLE ASM Price: $210.39 |
| 25 |
532180926 |
SPRING, TRACTION DRIVE Price: $5.99 |
| 25 |
63-7732 |
RH BRAKE CABLE ASM Price: $210.39 |
| 26 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 26 |
532178669 |
SPRING, AUGER CONTROL Price: $7.99 |
| 27 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 27 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 28 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 28 |
532412680 |
SPACER CONTROL LEVER Price: $2.99 |
| 29 |
75-1440-03 |
PEDAL-BRAKE, LH Price: $207.74 |
| 30 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 30 |
532405879 |
CONSOLE, PANEL Price: $29.99 |
| 31 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 31 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 32 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 32 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 33 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 34 |
75-3270-03 |
HUB-PIVOT, TRACTION Price: $144.73 |
| 34 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 35 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 36 |
532443215 |
SPRING.TORSION.LEVER This part replaces 532178831. Price: $3.99 |
| 36 |
75-2170-03 |
TUBE-CONTROL, PUMP Price: $103.73 |
| 37 |
3220-3 |
NUT-HJ Price: $0.28 |
| 37 |
532412675 |
SPRING.INTERLOCK This part replaces 532416288. Price: $4.99 |
| 38 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 39 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 39 |
532178668 |
BEZEL.HEADLIGHT.BLACK Price: $5.99 |
| 40 |
323-9 |
SCREW-HH Price: $1.29 |
| 41 |
532178775 |
RIVET.POP.1/8X Price: $6.99 |
| 42 |
532445291 |
CAM.INTERLOCK.RELEASE This part replaces 532414572. Price: $3.99 |
| 47 |
532196943 |
BRKT.PANEL.RH.INT Price: $8.99 |
| 48 |
532196944 |
BRKT.PANEL.LH.INT Price: $8.99 |
| 49 |
532414515 |
GRIP.HANDLE.HEATED Price: $54.99 |
| 532401620 |
BULB.HEADLIGHT.HALOGEN. |
Price: $59.99 532401620 |
