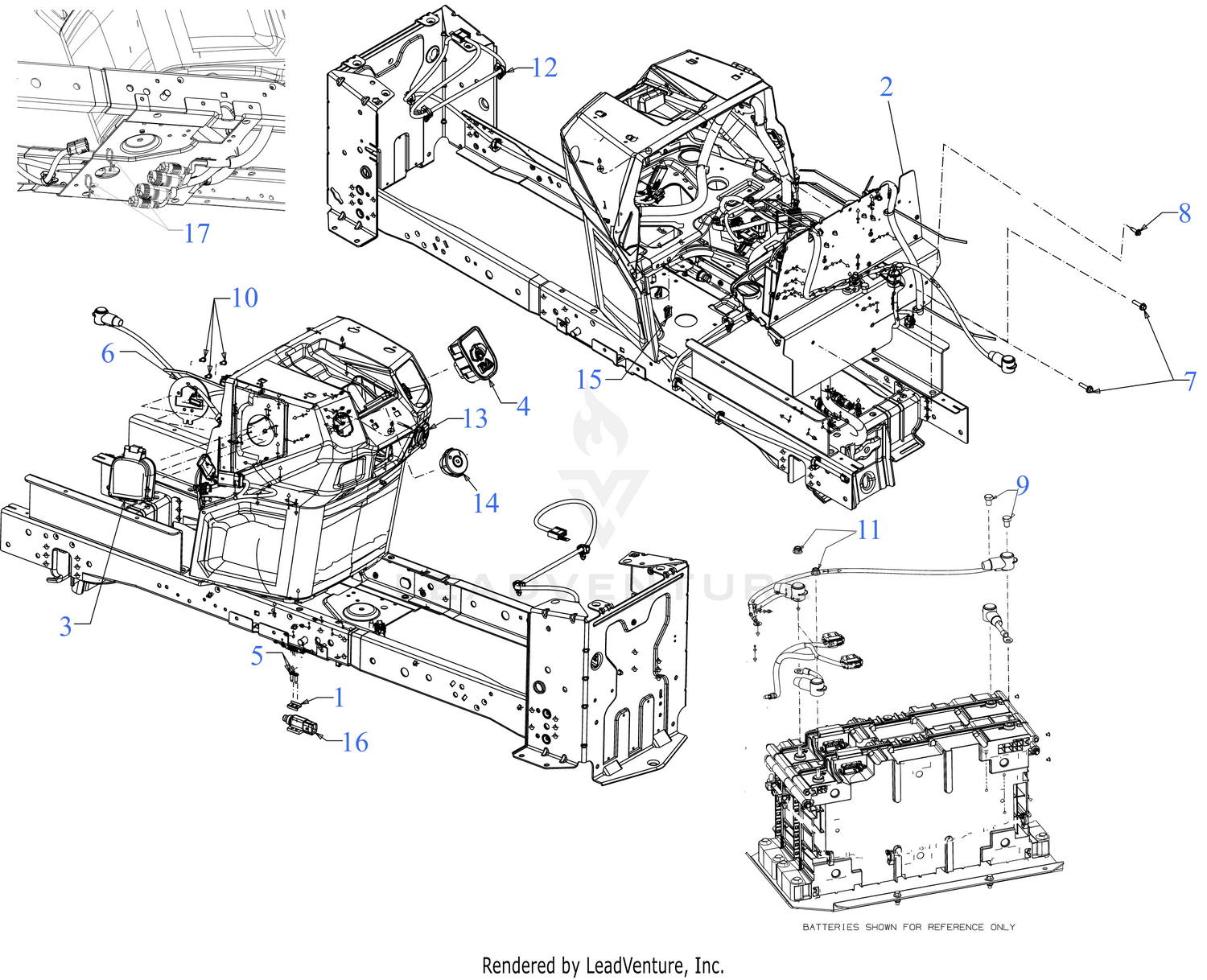

| Ref | Part Number | Description |
|---|
| 1 |
17962 |
PLATE-SWITCH Price: $4.36 |
| 2 |
625P05200 |
MOTOR CONTROL PANEL Not Available This part replaces 625-05200. Price: |
| 3 |
625P05390A |
LI-ION CHARGE PORT ASSEMBLY Price: $149.00 |
| 4 |
753-11122B |
VCM SERVICE KIT (XT1/ENX15) This part replaces 625P05470A. Price: $548.97 |
| 5 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 6 |
703-08909 |
CHARGE PORT MOUNTING PLATE Price: $15.59 |
| 7 |
710-05105 |
SCREW 1/4-20 x 1.0 Price: $3.49 |
| 8 |
710-06147 |
SCREW 1/4-10 x .750 Price: $3.08 |
| 9 |
710-08794 |
SCREW 3/8-24 x .50" GR5 STD Price: $2.14 |
| 10 |
710-1823 |
SCREW #12-16 x .625 Price: $3.14 |
| 11 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 12 |
725P09645 |
HARNESS (VCM HPD BATTERY) Price: $376.44 |
| 13 |
725-09965 |
USB RECEPTACLE (12V W/JUMPER) Price: $94.09 |
| 14 |
725P10266 |
KEY SWITCH (2 POSITION) Price: $36.06 |
| 15 |
726-3054 |
U-CLIP NUT Price: $4.08 |
| 16 |
929-05136 |
SEALED PLUNGER SWITCH Price: $37.95 |
| 17 |
729-07541 |
TWIST LOCK CLIP Price: $2.90 |
