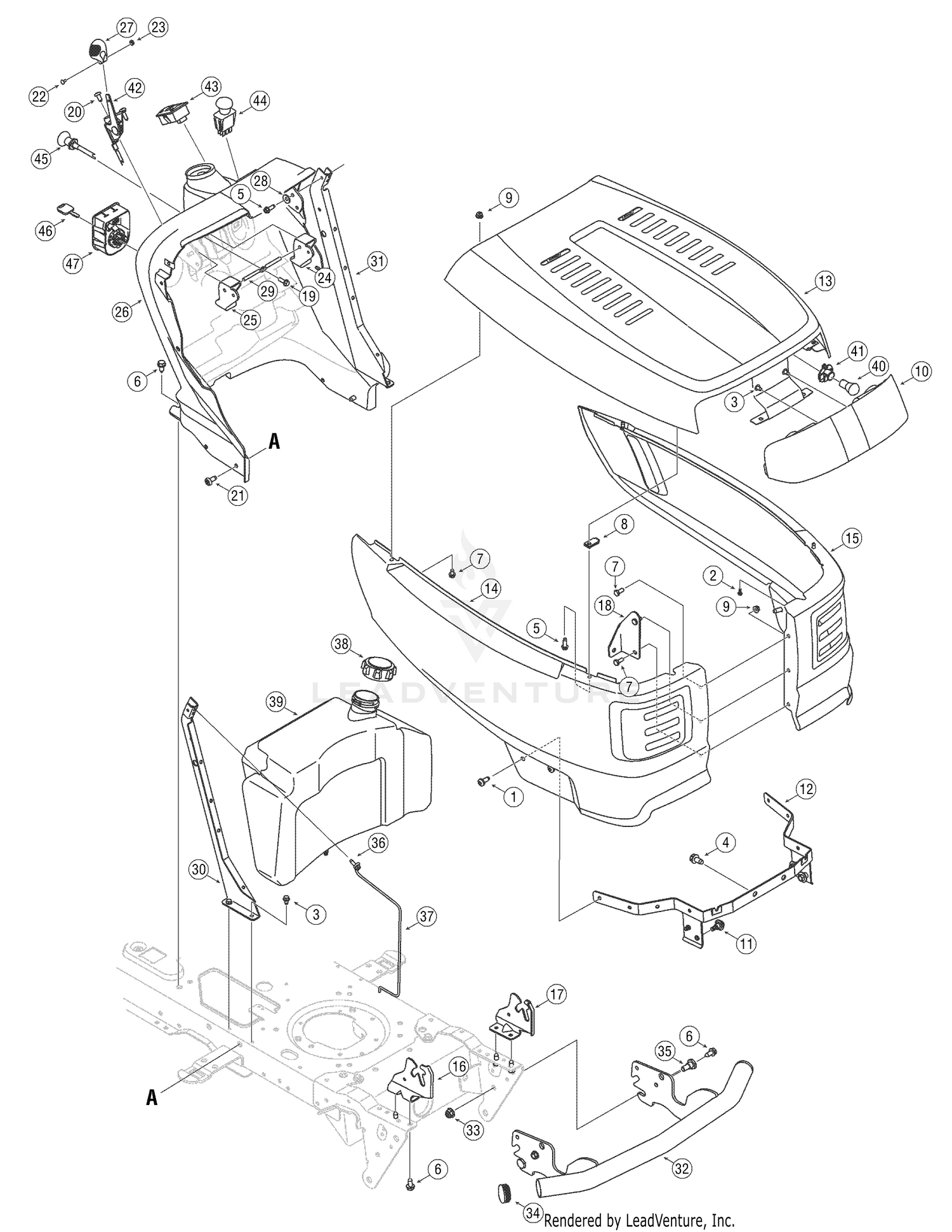

| Ref | Part Number | Description |
|---|
| 1 |
710-04593 |
Screw TT, 5/16-18 x.375 Price: $3.82 |
| 2 |
710-04599 |
SCREW #8-18 x .500 Not Available Price: |
| 3 |
710-0599 |
Screw TT, 1/4-20 x.500 Price: $3.86 |
| 4 |
710-0623 |
Screw TT, 3/8-16 x.750 Price: $3.93 |
| 5 |
710-0642 |
Screw TT, 1/4-20 x.750 Price: $4.05 |
| 6 |
710-0726 |
Screw AB, 5/16-12 x.750 Price: $3.82 |
| 7 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 8 |
712-0292 |
Clip Nut 1/4-20 Price: $8.97 |
| 9 |
712-04064 |
Flange Lock Nut 1/4-20 Price: $3.64 |
| 10 |
731-06414 |
LENS-T STYLE Not Available This part replaces 731-05357. Price: |
| 11 |
738-04091A |
Shoulder Screw, .43 x .29 This part replaces 738-04091. Price: $3.50 |
| 12 |
783-04606C |
Hood Pivot Bracket This part replaces 783-04606A. Price: $34.80 |
| 13 |
783-04827 |
HOOD Not Available Price: |
| 14 |
783-04828 |
SIDE PANEL (RH) Not Available Price: |
| 15 |
783-04829 |
SIDE PANEL (LH) Not Available Price: |
| 16 |
783-04840 |
RH Hood Pivot Bracket Price: $16.32 |
| 17 |
783-04841 |
HOOD PIVOT BRACKET Not Available Price: |
| 18 |
783-05116 |
SUPPORT HOOD BRACKET Not Available Price: |
| 19 |
710-0895 |
Screw HL, 1/4-15 x.750 Price: $5.82 |
| 20 |
710-1017 |
Screw AB, 1/4-14 x.625 Price: $7.26 |
| 21 |
710-1611B |
Screw TT, 5/16-18 x.750 Price: $5.94 |
| 22 |
710-3217 |
Screw #8-32 x.375 Price: $5.94 |
| 23 |
712-0142 |
Hex Nut #8-32 Price: $3.90 |
| 24 |
731-04728 |
BRAKE LEVER Not Available Price: |
| 25 |
731-04729 |
CUISE LEVER Not Available Price: |
| 26 |
731-06169 |
DASH PANEL TROY W/EVAC NO/WIND Not Available This part replaces 731-05005B. Price: |
| 27 |
731-1857 |
Control Knob Price: $12.90 |
| 28 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 29 |
747-1196 |
Lever Rod Price: $13.38 |
| 30 |
783-04285F-0637 |
DASH SUPPORT Not Available This part replaces 783-04285D. Price: |
| 31 |
783-04323F-0637 |
DASH SUPPORT Not Available This part replaces 783-04323D. Price: |
| 32 |
683-04219B-0637 |
Bumper This part replaces 683-04219. Price: $53.16 |
| 33 |
712-04065 |
Flange Lock Nut 3/8-16 Price: $3.68 |
| 34 |
731-05598 |
BUMPER CAP Not Available Price: |
| 35 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 36 |
710-0642 |
Screw TT, 1/4-20 x.75 Price: $4.05 |
| 37 |
747-04161 |
SUPPORT ROD (LH) Not Available Price: |
| 38 |
751-0603B |
TANK CAP This part replaces 751-0603. Price: $20.42 |
| 39 |
751-10283B |
FUEL TANK (3 GAL) This part replaces 751-10283. Price: $153.84 |
| 40 |
925-0963 |
Lamp This part replaces 725-0963. Price: $6.73 |
| 41 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 725-1649. Price: $10.30 |
| 42 |
946-1086 |
THROTTLE CABLE This part replaces 746-1086. Price: $31.31 |
| 43 |
925-06170B |
HOUR METER/SERVICE MINDER This part replaces 725-04036B. Price: $65.84 |
| 44 |
925-04174A |
PTO SWITCH (BLACK KNOB) TEXT SYM This part replaces 725-04174. Price: $62.00 |
| 45 |
946-04132 |
Choke Cable This part replaces 746-04132. Price: $31.29 |
| 46 |
925-1745A |
IGNITION KEYS This part replaces 725-1744. Price: $15.91 |
| 47 |
925-06119C |
IGNITION MODULE SWITCH RMC (MAN PTO BLK) This part replaces 725-04227A. Price: $102.50 |
