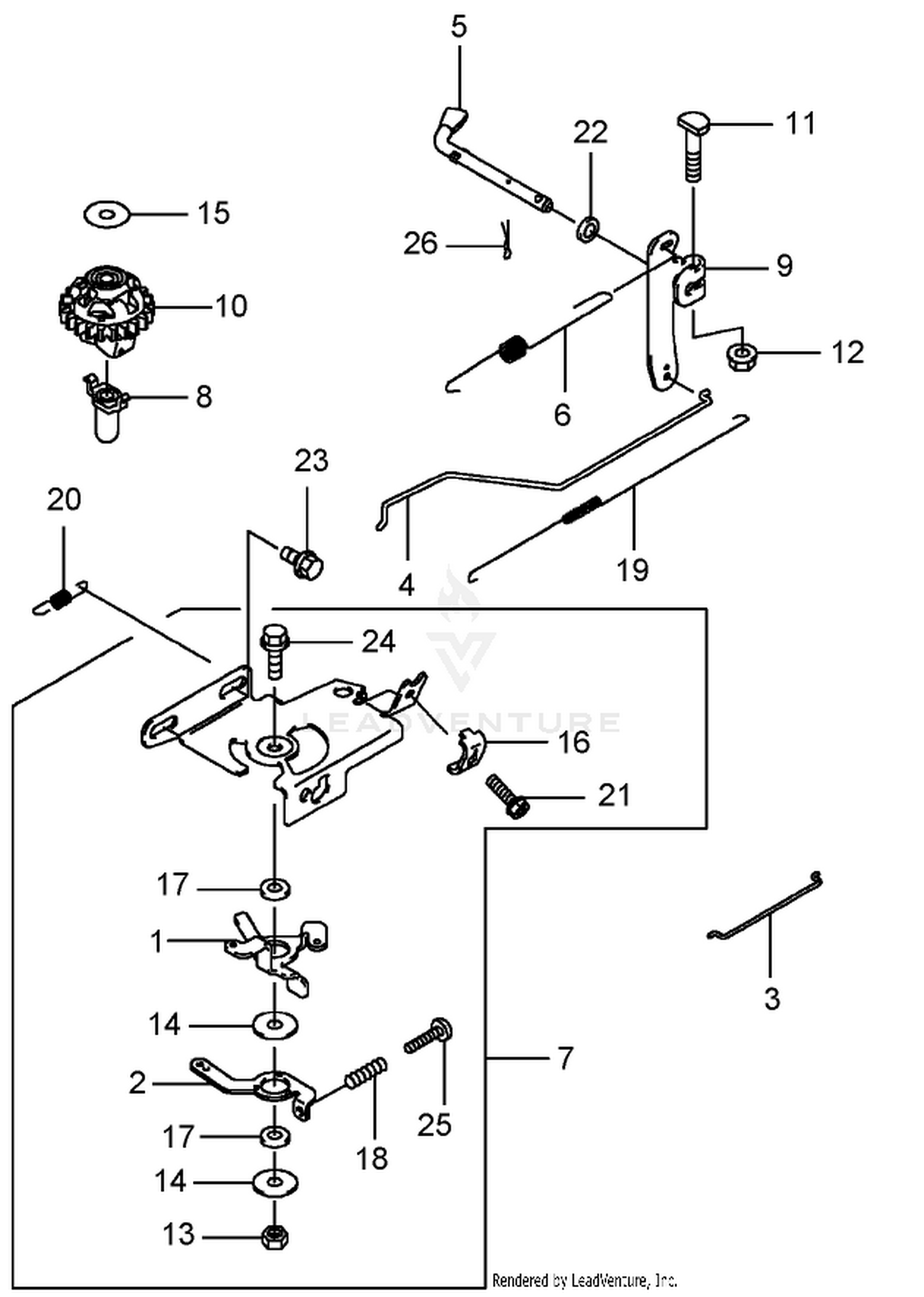

Control Equipment Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-2560 | LEVER Price: $33.49 |
| 2 | 108-2561 | LEVER Price: $8.43 |
| 3 | 108-2562 | LINK-CHOKE Price: $0.80 |
| 4 | 108-2563 | LINK-THROTTLE Price: $7.80 |
| 5 | 108-2564 | ARM-PIVOT Price: $21.33 |
| 6 | 108-2565 | SPRING-GOVERNOR Price: $5.59 |
| 7 | 108-2566 | CONTROL PANEL ASM Price: $65.70 |
| 8 | 108-2567 | SLEEVE Price: $6.09 |
| 9 | 108-2568 | ARM-GOVERNOR Price: $7.32 |
| 10 | 108-2569 | GOVERNOR ASM Price: $19.06 |
| 11 | 108-2570 | BOLT Price: $2.32 |
| 12 | 108-2571 | NUT Price: $0.99 |
| 13 | 108-2572 | NUT Price: $1.73 |
| 14 | 100-2715 | WASHER Price: $1.68 |
| 15 | 93-8612 | WASHER Price: $1.39 |
| 16 | 95-9849 | CLAMP Price: $2.55 |
| 17 | 100-2718 | COLLAR Price: $1.68 |
| 18 | 93-8588 | SPRING Price: $10.31 |
| 19 | 108-2573 | SPRING-THROTTLE Price: $2.69 |
| 20 | 108-2574 | SPRING Price: $4.38 |
| 21 | 95-9853 | BOLT (5X18) Price: $0.55 |
| 22 | 93-8608 | WASHER (6.5X11.5X2.0) This part replaces 108-2575. Price: $1.81 |
| 23 | 100-2804 | BOLT-FLANGED Price: $2.19 |
| 24 | 108-2576 | BOLT-FLANGE Price: $0.88 |
| 25 | 108-2577 | SCREW-PAN Price: $0.64 |
