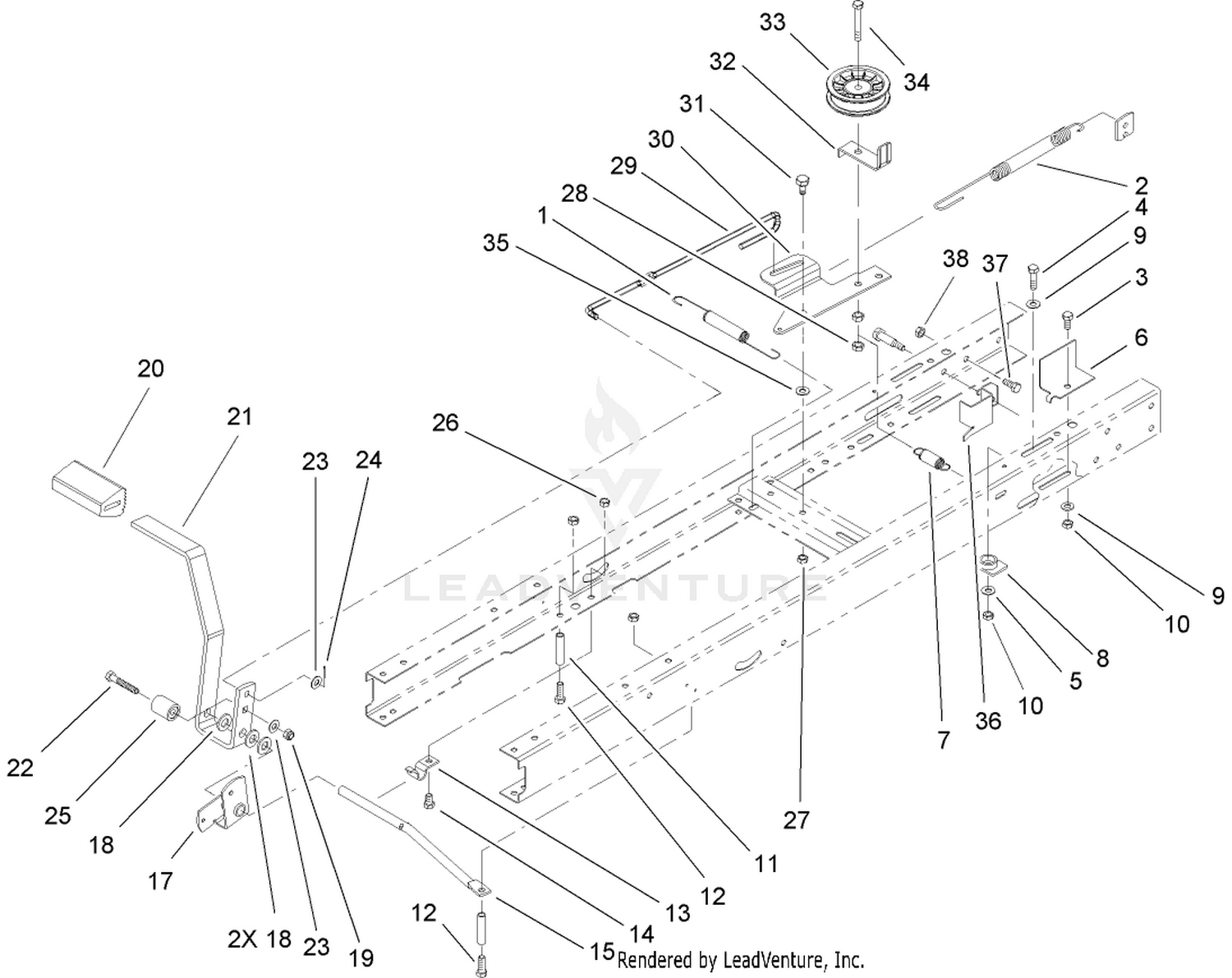

| Ref | Part Number | Description |
|---|
| 1 |
27-8890 |
SPRING-EXTENSION Price: $27.22 |
| 2 |
94-4295 |
SPRING-BRAKE Price: $28.67 |
| 3 |
322-3 |
SCREW-HH Price: $0.79 |
| 4 |
322-6 |
SCREW-HH Price: $0.45 |
| 5 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 6 |
94-5433 |
BRACKET-BELT, GUIDE Price: $8.17 |
| 7 |
88-6330 |
SPRING-EXTENSION Price: $7.99 |
| 8 |
84-5610 |
GUIDE-CABLE Price: $1.93 |
| 9 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 10 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 11 |
46-5590 |
TUBING-SPACER Price: $11.34 |
| 12 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 13 |
88-4810 |
CLAMP-PIVOT, SHIFT Price: $1.99 |
| 14 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
88-5500 |
ROD-PIVOT, PEDAL Price: $24.16 |
| 17 |
88-4800-03 |
BELLCRANK Price: $6.39 |
| 18 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 19 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 20 |
65-2920 |
PAD-PEDAL Price: $22.41 |
| 21 |
88-5000-03 |
PEDAL-CLUTCH/BRAKE, HYDRO Price: $62.17 |
| 22 |
322-9 |
SCREW-HH Price: $3.09 |
| 23 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 24 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 25 |
99-6836 |
SPACER Price: $7.25 |
| 26 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 27 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 28 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 29 |
88-5270 |
ROD-CLUTCH/BRAKE Price: $23.56 |
| 30 |
88-6070 |
ARM-IDLER Price: $23.56 |
| 31 |
37-8770 |
BOLT-SHOULDER Price: $1.02 |
| 32 |
88-5560 |
GUIDE-IDLER, BELT Price: $9.12 |
| 33 |
104-4160 |
PULLEY-IDLER Price: $64.99 |
| 34 |
323-10 |
SCREW-HH Price: $0.89 |
| 35 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 36 |
94-4926 |
BRACKET-BELT, GUIDE Price: $4.11 |
| 37 |
322-3 |
SCREW-HH Price: $0.79 |
