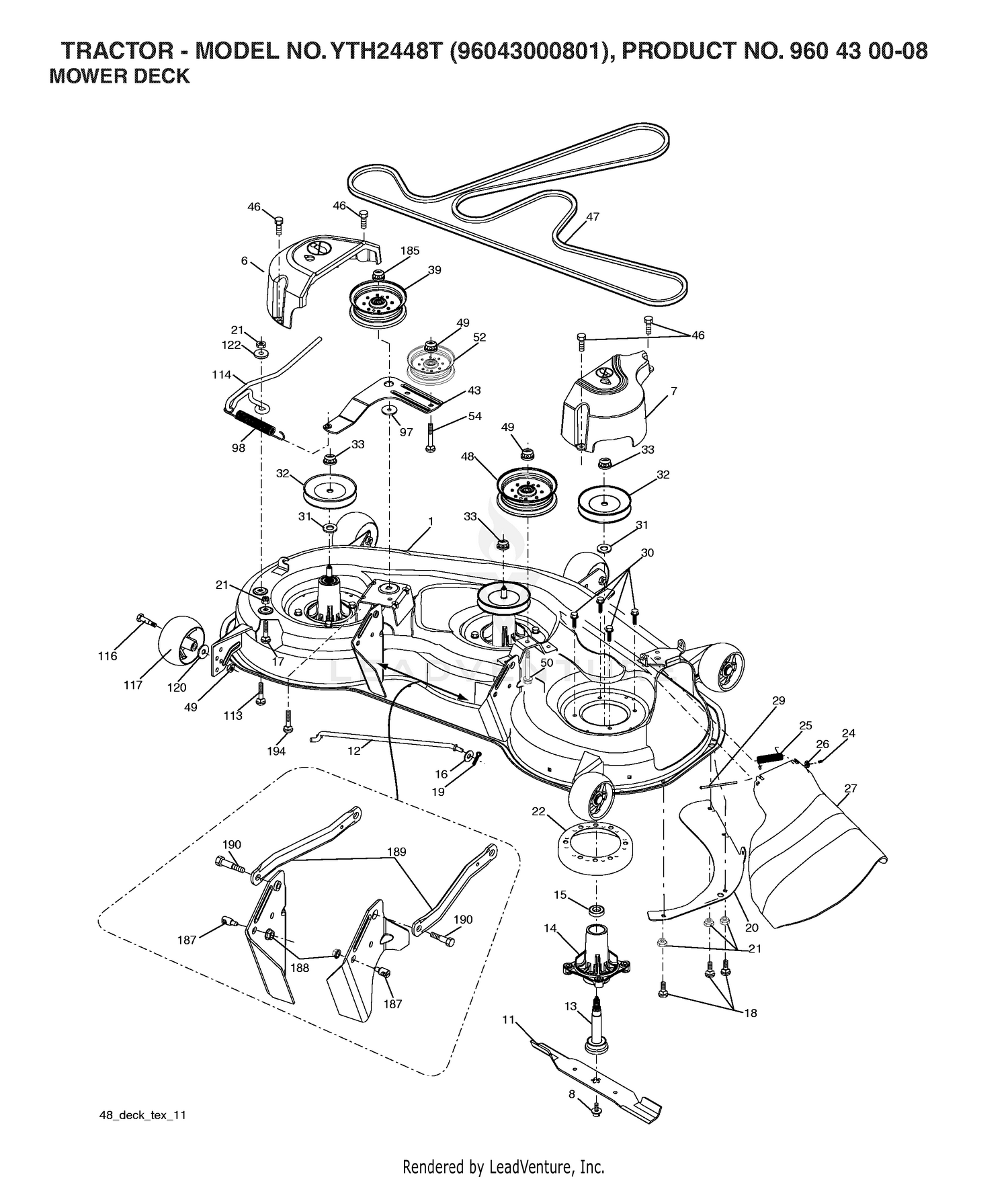

| Ref | Part Number | Description |
|---|
| 1 |
120-8056 |
TUBE ASM Price: $144.29 |
| 1 |
532439818 |
DECK SVC 48" 4GWB 197216X431 This part replaces 532197216. Price: $599.99 |
| 2 |
120-8055 |
TUBE ASM Price: $137.84 |
| 3 |
115-4412 |
TUBE ASM Price: $132.35 |
| 4 |
115-4408 |
TUBE ASM Price: $126.40 |
| 5 |
115-4406 |
TUBE ASM Price: $119.83 |
| 6 |
115-4409 |
TUBE ASM Price: $115.75 |
| 6 |
532197248 |
COVER.MANDREL.LH.48"(2 2) Price: $19.99 |
| 7 |
115-4405 |
TUBE ASM Price: $119.61 |
| 7 |
587452401 |
COVER.RH.MANDREL This part replaces 532199102. Price: $17.99 |
| 8 |
136-3414 |
HYDRAULIC TUBE ASM This part replaces 125-4581. Price: $81.81 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 532174365. Price: $6.99 |
| 9 |
92-7606-03 |
BRACKET-BULKHEAD Price: $13.64 |
| 10 |
125-4560 |
HOSE ASM Price: $96.58 |
| 11 |
92-7539 |
HOSE-HYD Price: $134.23 |
| 12 |
596274401 |
Rods This part replaces 532400337. Price: $9.99 |
| 13 |
120-8057 |
TUBE ASM Price: $94.49 |
| 13 |
597023501 |
MANDRELS This part replaces 532187291. Price: $24.99 |
| 14 |
340-70 |
NUT-LOCK Price: $2.10 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 16 |
115-1794 |
SCREW-HHF Price: $1.73 |
| 16 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
105-3993-0P |
BRACKET-TUBE SUPPORT This part replaces 105-3993-03. Price: $40.13 |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 20 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 20 |
531167501 |
SERVICE KIT BAFFLE BAFFLE This part replaces 532174378. Price: $12.99 |
| 21 |
2412-81 |
CLAMP-R Price: $3.39 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 23 |
125-4570 |
TUBE ASM Price: $80.61 |
| 24 |
121-3064 |
TUBE ASM Price: $100.05 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
121-3063 |
TUBE ASM Price: $64.29 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532180655 |
DEFLECTOR.ASM.BLACK.48" This part replaces 532181707. Price: $39.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.BRIGHT.ZINC Price: $19.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 35 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 36 |
92-5694 |
HOSE-HYDRAULIC Price: $92.15 |
| 37 |
119-1418 |
PLATE-CLAMP, SHORT Price: $10.91 |
| 39 |
532196104 |
PULLEY.IDLER.MWR.STATI.LH Price: $37.99 |
| 43 |
531169301 |
SERVICE KIT ARM.IDLER This part replaces 532196065. Price: $9.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
593773401 |
Belts- 197242 This part replaces 532197242. Price: $54.99 |
| 48 |
532196106 |
PULLEY.IDLER.2006 Price: $34.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 52 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 54 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 113 |
596435701 |
Bolts This part replaces 872110508. Price: $2.99 |
| 114 |
532197451 |
ROD.TENSION.RELIEF.TEX (2 2) Price: $14.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 120 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $7.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 188 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 189 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X This part replaces 872140716. Price: $9.99 |
| 532173921 |
BLADE.MULCH.48" |
Price: $19.99 532173921 |
| 532439644 |
DECK |
ASM SVC 48"ELCT.HD.5GW This part replaces 532401238. Price: $899.00 532439644 |
| 587820301 |
KIT.MANDREL.GREASEABLE.TALL |
This part replaces 532187292. Price: $49.99 587820301 |
