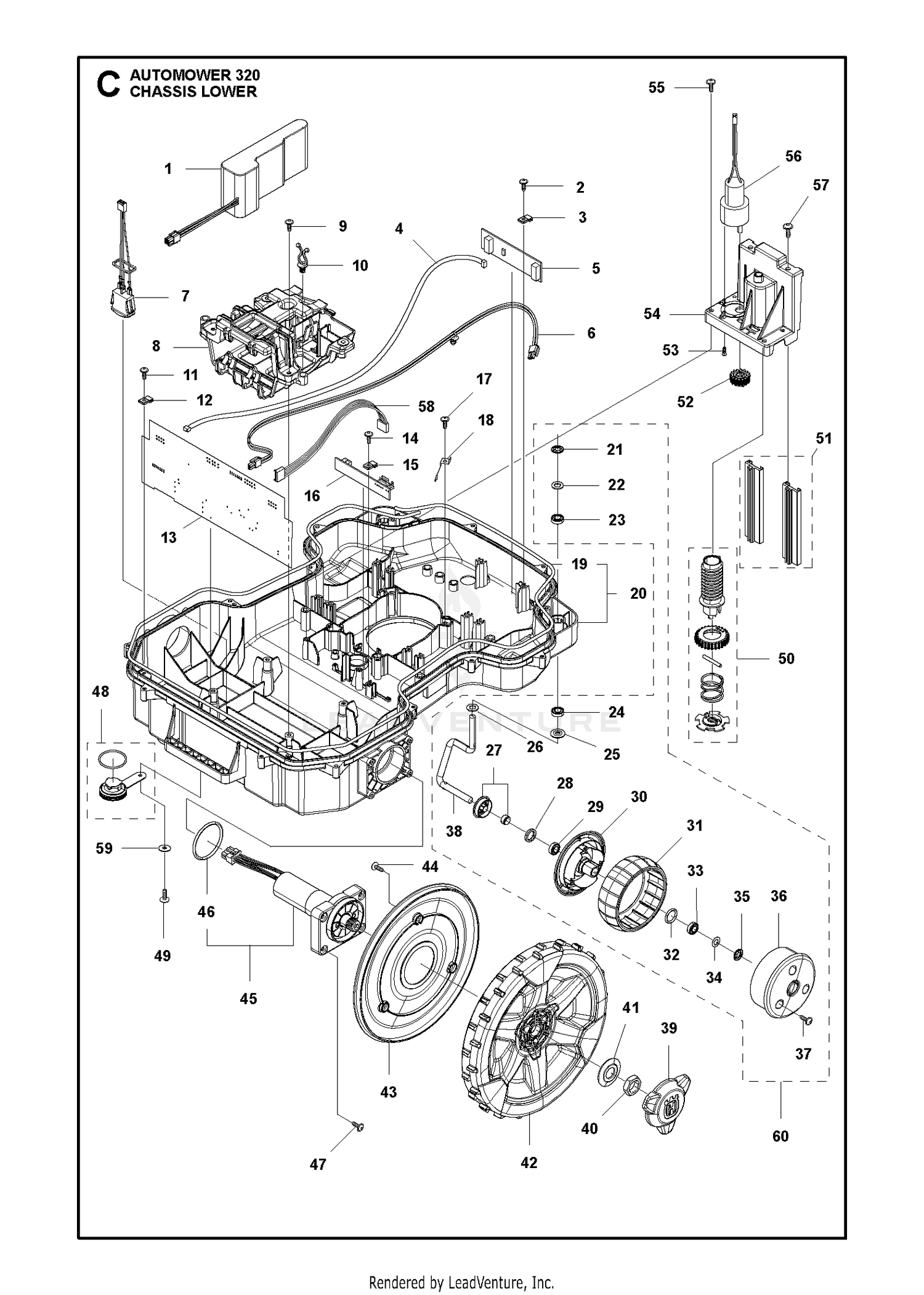

CHASSIS LOWER
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 589585201 | BATTERY LI-ION Price: $179.99 |
| 2 | 575543314 | SCREW 14MM Price: $3.99 |
| 3 | 579529401 | CLAMP PCB Price: $2.99 |
| 4 | 579708201 | LOOM LOOP SENSOR Price: $11.99 |
| 5 | 579660201 | PRINTED CIRCUIT ASSY PCBA LOOP Price: $54.99 |
| 6 | 580370701 | Price: Call Us |
| 7 | 579708701 | LOOM ON/ OFF Price: $29.99 |
| 8 | 580609601 | Price: Call Us |
| 9 | 574450101 | SCREW ITXPANT Price: $3.99 |
| 10 | 580682901 | HOLDER TWIST LOCK Price: $3.99 |
| 11 | 575543314 | SCREW 14MM Price: $3.99 |
| 12 | 579529401 | CLAMP PCB Price: $2.99 |
| 13 | 578425403 | NEEDS DESCRIPTION Price: Call Us |
| 14 | 575543314 | SCREW 14MM Price: $3.99 |
| 15 | 579529401 | CLAMP PCB Price: $2.99 |
| 16 | 579728501 | Price: Call Us |
| 17 | 575543314 | SCREW 14MM Price: $3.99 |
| 18 | 581556101 | SPRING GUIDE HEIGHT ADJUSTMENT Price: $4.99 |
| 20 | 581621702 | CHASSIS KIT This part replaces 581621701. Price: $54.99 |
| 21 | 576019301 | LOCK WASHER PUSH-ON TYPE P 8 S Price: $2.99 |
| 22 | 580764601 | WASHER DIN 988 13X8X0.5 Price: $2.99 |
| 23 | 580605101 | BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 24 | 580605101 | BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 25 | 535087803 | WASHER FRONT WHEEL CENTER HOLE Price: $2.99 |
| 26 | 580764601 | WASHER DIN 988 13X8X0.5 Price: $2.99 |
| 27 | 581621501 | SHIELD KIT Price: $6.99 |
| 28 | 580487101 | SEALING 12X18X3 Price: $4.99 |
| 29 | 580605101 | BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 30 | 579457101 | WHEEL FRONT WHEEL INSIDE Price: $4.99 |
| 31 | 574449801 | WHEEL RUBBER TYRE Price: $7.99 |
| 32 | 580445101 | O-RING 2,62X15,54 Price: $3.99 |
| 33 | 580605101 | BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 34 | 580764601 | WASHER DIN 988 13X8X0.5 Price: $2.99 |
| 35 | 576019301 | LOCK WASHER PUSH-ON TYPE P 8 S Price: $2.99 |
| 36 | 579457201 | WHEEL FRONT WHEEL OUTSIDE Price: $5.99 |
| 37 | 575543314 | SCREW 14MM Price: $3.99 |
| 38 | 580336102 | SPINDLE This part replaces 580336101. Price: $9.99 |
| 39 | 579505501 | Price: Call Us |
| 40 | 731432401 | HEXAGON THIN NUT Price: $6.99 |
| 41 | 586210601 | WASHER WASHER REAR WHEEL 16X40 Price: $5.99 |
| 42 | 582280201 | WHEEL ASSY D249 HVA LIGHT GREY Price: $29.99 |
| 43 | 582280201 | WHEEL ASSY D249 HVA LIGHT GREY This part replaces 579505602. Price: $29.99 |
| 44 | 575543314 | SCREW 14MM Price: $3.99 |
| 45 | 581621301 | Price: Call Us |
| 46 | 580443901 | Price: Call Us |
| 47 | 574450101 | SCREW ITXPANT Price: $3.99 |
| 48 | 581621201 | PLUG KIT Price: $7.99 |
| 49 | 575543314 | SCREW 14MM Price: $3.99 |
| 50 | 581621601 | SCREW KIT Price: $17.99 |
| 51 | 581621801 | BEARING KIT Price: $6.99 |
| 52 | 579564701 | Price: Call Us |
| 53 | 510018703 | Price: Call Us |
| 54 | 579565101 | Price: Call Us |
| 55 | 575543314 | SCREW 14MM Price: $3.99 |
| 56 | 580342101 | Price: Call Us |
| 57 | 510722901 | Price: Call Us |
| 59 | 734113741 | WASHER Price: $3.99 |
| 60 | 581621402 | Wheels This part replaces 581621401. Price: $59.99 |
