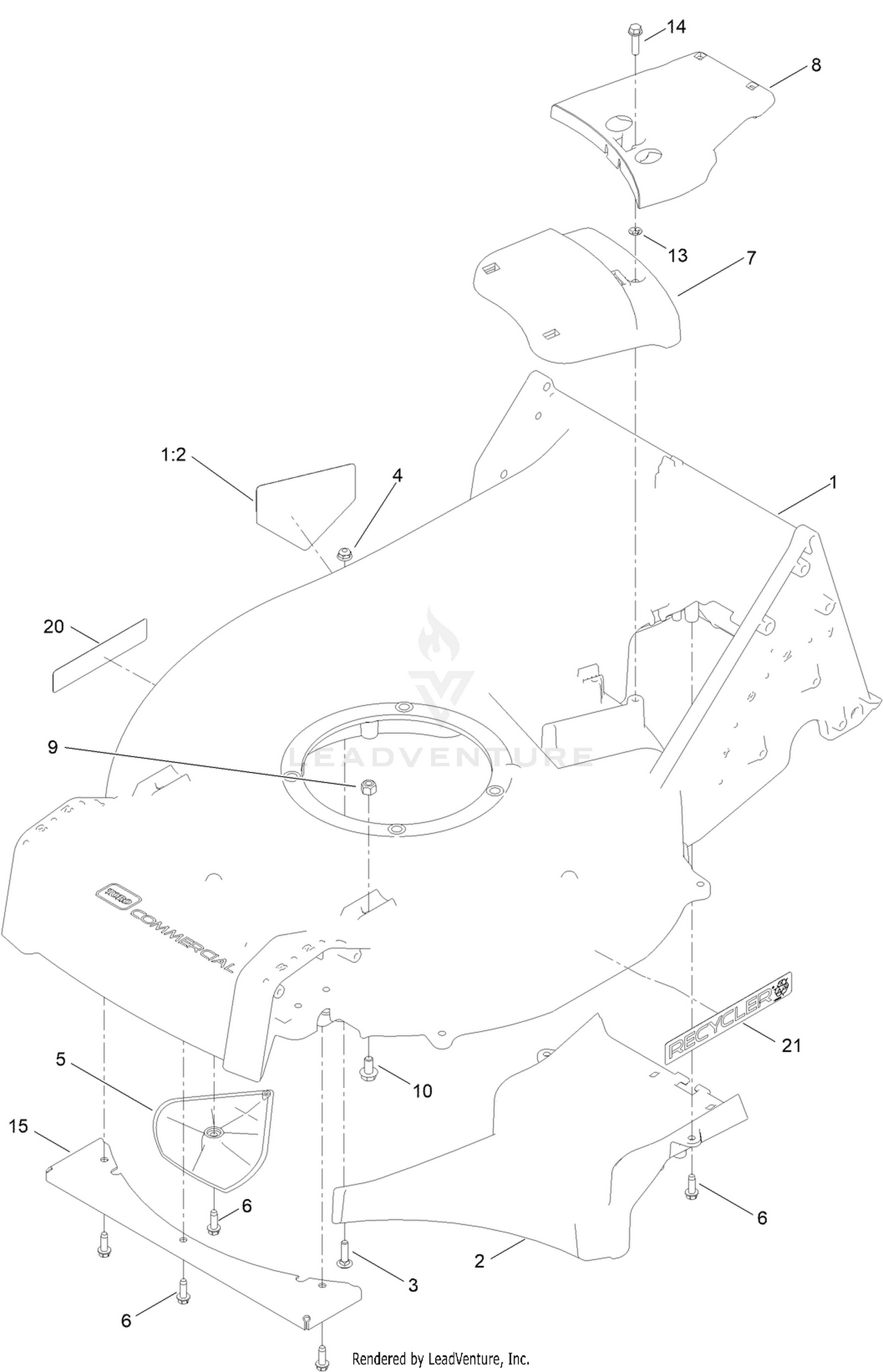

Deck Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-5897 | HOUSING ASM Price: $168.13 |
| 2 | 125-1002-01 | FLOOR-CHUTE Price: $37.21 |
| 3 | 3229-2 | SCREW-CARR Price: $2.89 |
| 4 | 104-7201 | NUT-HF Price: $0.69 |
| 5 | 125-5041 | KICKER Price: $5.11 |
| 6 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 7 | 125-5038 | COVER-BELT, FRONT Price: $7.32 |
| 8 | 125-8380 | COVER-BELT, REAR Price: $7.32 |
| 9 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 10 | 3234-7 | SCREW-HHF Price: $1.99 |
| 13 | 32115-15 | PUSHNUT-RETAINER, BOLT Price: $0.99 |
| 14 | 32144-86 | SCREW-HWHTF Price: $1.29 |
| 15 | 125-8435-03 | GUARD-TOE, FRONT Price: $13.41 |
| 20 | 125-8420 | DECAL Price: $1.97 |
