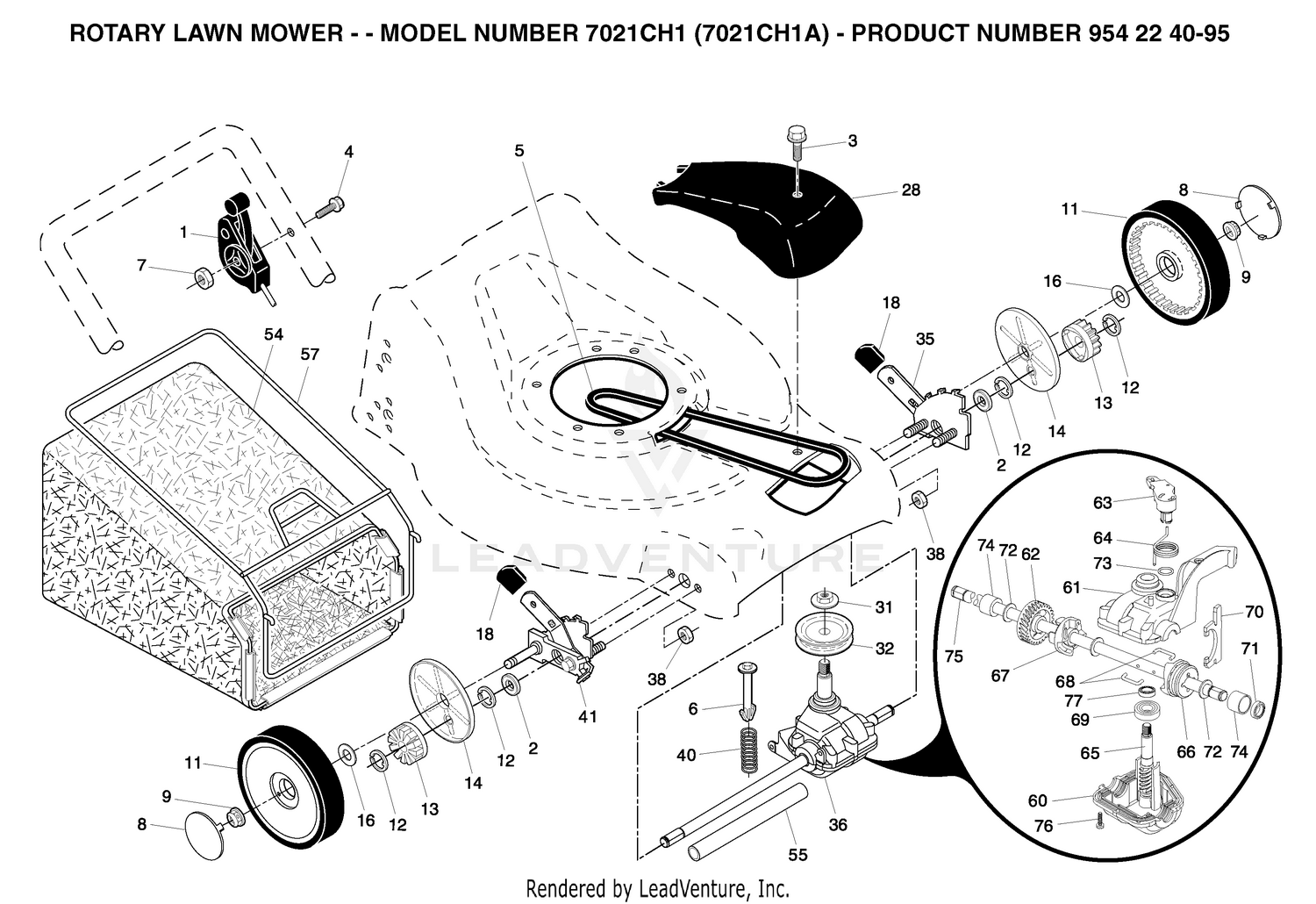

| Ref | Part Number | Description |
|---|
| 1 |
532184588 |
DRIVE CONTROL 59.8 FWGD Price: $44.99 |
| 3 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 4 |
532158755 |
SCREW.PAN.HEAD Price: $4.99 |
| 5 |
532175436 |
BELT.DRIVE.21FGD.1SPEED Price: $19.99 |
| 6 |
532150495 |
SPRING RETAINER Price: $3.99 |
| 7 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 8 |
532150182 |
CAP.HUB.ARC.SPOKE.8".LP This part replaces 532180626. Price: $3.99 |
| 9 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 11 |
532180775 |
WHEEL.8X2.PR.LP.RADII.BLACK.BU This part replaces 532180767. Price: $29.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532137054 |
PINION GEAR Price: $4.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532180504. Price: $5.99 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 28 |
532432664 |
COVER.DRIVE.ASM.185579.CE.WALK This part replaces 532185579. Price: $19.99 |
| 31 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $3.99 |
| 32 |
532194126 |
DRIVEN PULLEY This part replaces 532189407. Price: $9.99 |
| 35 |
532151521 |
WHEEL ADJ ASM (L) Price: $22.99 |
| 36 |
532180184 |
TRANSMISSION.21.HT.GWGD Price: $99.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 40 |
532137090 |
SPRING.EXTENSION Price: $4.99 |
| 41 |
532151520 |
KIT.ADJUSTER.ASM.(151514).RT Price: $22.99 |
| 54 |
532410667 |
GBAG.32510010.BLK.GEN.SERVICE Price: $59.99 |
| 55 |
532175739 |
DRIVESHAFT COVER Price: $2.94 |
| 57 |
532194643 |
FRAME.GBAG.21.FWGD. This part replaces 532188815. Price: $44.99 |
| 60 |
532183497 |
LOWER CASE Price: $12.99 |
| 61 |
532183498 |
UPPER CASE Price: $12.99 |
| 62 |
532183499 |
GEAR.27.TEETH.WALK.MOWER Price: $14.99 |
| 63 |
532183500 |
LEVER, CLUTCH Price: $4.99 |
| 64 |
532183501 |
SPRING, RETURN Price: $4.99 |
| 65 |
532183502 |
SHAFT INPUT (13041) Price: $24.99 |
| 66 |
532183503 |
DOG, MOVABLE (11032) Price: $4.99 |
| 67 |
532183504 |
DOG, FIXED GT11031 Price: $3.99 |
| 68 |
532183505 |
WIRE, FORMED (15966) Price: $5.99 |
| 69 |
532183506 |
BEARING Price: $5.99 |
| 70 |
532183507 |
FORK, SHIFT Price: $7.99 |
| 71 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 72 |
532183509 |
WASHER Price: $3.99 |
| 73 |
532183510 |
SEAL, CASE O-RING Price: $4.99 |
| 74 |
532183511 |
BUSHING Price: $4.99 |
| 75 |
532183512 |
SHAFT OUTPUT (12159) Price: $37.99 |
| 76 |
532183513 |
SCREW Price: $3.99 |
| 77 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
