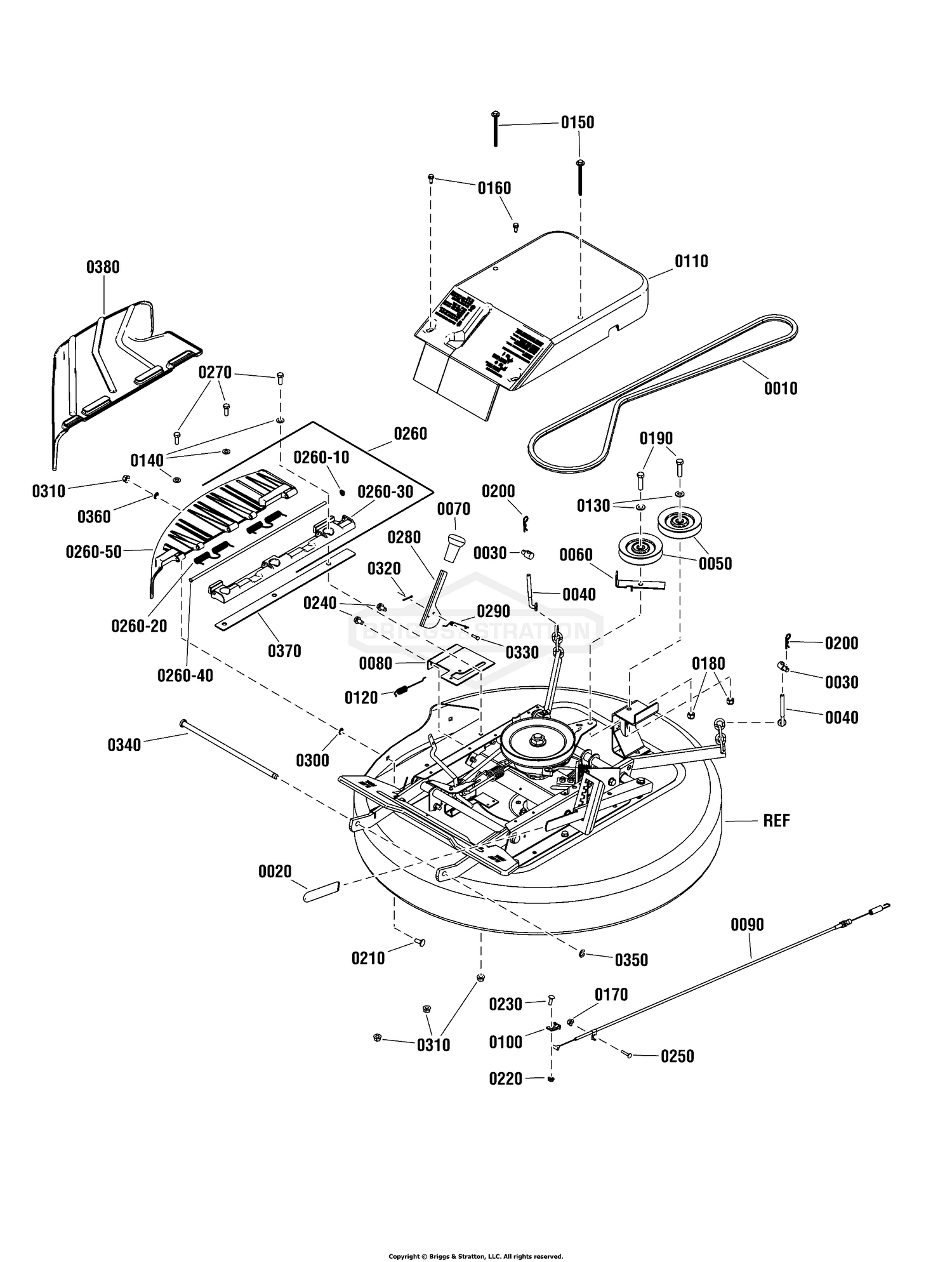

| Ref | Part Number | Description |
|---|
| 0020 |
7105356YP |
GRIP, DECK LIFT Price: $4.87 |
| 0030 |
7028200SM |
SWIVEL, Adjustable Price: $12.24 |
| 0040 |
703827 |
ROD, ADJUSTER Price: $9.97 |
| 0060 |
7032111YP |
RESTRICTOR, Belt, 2.18" w/Lock Tab Price: $6.22 |
| 0070 |
7046874YP |
GRIP, Handle, .510 Square Hole Price: $8.84 |
| 0080 |
7600140YP |
KIT, CLUTCH PLATE Price: $38.55 |
| 0090 |
7073216YP |
CABLE ASSEMBLY, No Reverse in Mow Price: $30.04 |
| 0100 |
7073217YP |
CLIP, Cable, RER Price: $5.02 |
| 0110 |
1760729YP |
COVER-BELT Price: $116.24 |
| 0120 |
7074649YP |
SPRING, Latch, .072 DIA., 3.6” Long Price: $7.59 |
| 0140 |
703350 |
WASHER Price: $3.72 |
| 0150 |
7091015YP |
SCREW, 1/4-20 x 3-1/2” Hex Head w/Free Spinning Wa This part replaces 7091015. Price: $5.02 |
| 0160 |
703054 |
SCREW, 1/4-20X0.625 Price: $3.82 |
| 0170 |
703412 |
NUT, NYLOCK, 10-24 Price: $3.72 |
| 0200 |
703300 |
PIN, 3/32 X 1.6 Price: $3.50 |
| 0210 |
703185 |
BOLT, Round Head, Short Square Neck Price: $2.87 |
| 0220 |
703233 |
NUT, 1/4-20, GR5 Price: $3.94 |
| 0230 |
703575 |
BOLT, 1/4-20X.750, SQ Price: $3.19 |
| 0240 |
703949 |
SCREW, 5/16-18.625 Price: $3.40 |
| 0250 |
7092051YP |
BOLT, #10-24 X 1, Flat Head Carriage, BZ Price: $4.59 |
| 0270 |
703408 |
CAPSCREW, 5/16-18 Price: $4.05 |
| 0280 |
7046567BMYP |
HANDLE, Blade Engagement (Flip) Price: $12.69 |
| 0290 |
7046648YP |
SPRING, Torsion, Flip Handle Price: $4.87 |
| 0300 |
703297 |
RETAINER, GR5, 5/16 Price: $3.29 |
| 0310 |
703115 |
NUT Price: $3.06 |
| 0320 |
703312 |
PIN, COTTER, 3/32X.75 Price: $3.51 |
| 0330 |
703313 |
PIN, CLEVIS, ZINC Price: $4.64 |
| 0340 |
7022717YP |
ROD, Deck Support (Front Lift Arm to Front End) Price: $42.49 |
| 0350 |
7017847YP |
RING, .438 External Retaining Price: $3.61 |
| 0360 |
703937 |
NUT, NYLOCK, 10-32 Price: $3.06 |
