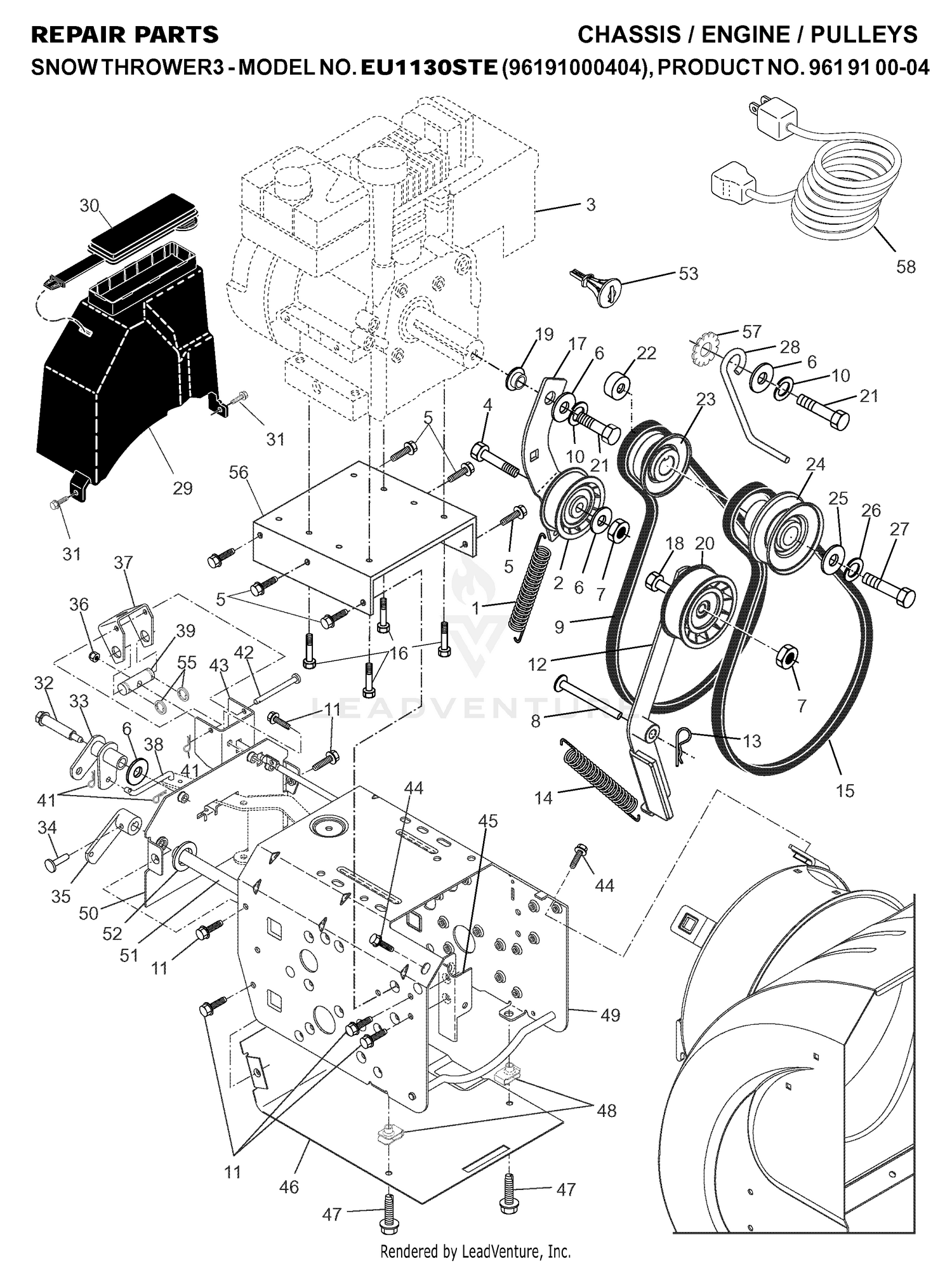

| Ref | Part Number | Description |
|---|
| 1 |
532414557 |
SPRING.TRACTION.IDLER This part replaces 532181044. Price: $4.99 |
| 2 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 4 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 5 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 6 |
532059289 |
STEEL WASHER Price: $3.99 |
| 7 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532166785. Price: $4.99 |
| 8 |
532175330 |
PIN, IDLER PIVOT Price: $4.99 |
| 9 |
532407908 |
NEEDS DESCRIPTION Price: Call Us |
| 10 |
532198552 |
WASHER, LOCK 5/16 Price: $6.99 |
| 11 |
532198584 |
SCREW, HEX HEAD 5/16-18 X 1/2 Price: $3.99 |
| 12 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532179259. Price: $79.99 |
| 13 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 14 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 15 |
532408008 |
BELT-V.IMPELLER.DRIVE This part replaces 532183534. Price: $44.99 |
| 16 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 17 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532184804. Price: $27.99 |
| 18 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 19 |
532198559 |
BUSHING, IDLER PIVOT Price: $2.99 |
| 20 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 21 |
874610516 |
SCREW Price: $3.99 |
| 23 |
595926601 |
PULLEY This part replaces 532180478. Price: $27.99 |
| 24 |
532426492 |
PULLEY.ENG.IMPELLER.SNOW This part replaces 532178813. Price: $17.99 |
| 25 |
532400026 |
WASHER, FLAT 3/8 Price: $7.99 |
| 26 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 27 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 28 |
532155452 |
BELT.GUIDE.RH Price: $4.99 |
| 29 |
532400217 |
BELT COVER ASSEMBLY Price: $14.99 |
| 30 |
532178830 |
COVER.STORAGE.SNOW Price: $2.99 |
| 31 |
532405024 |
SCREW, HEX HEAD 1/4-20 X 1/2 This part replaces 532400524. Price: $3.99 |
| 32 |
532179256 |
BOLT, SHOULDER 5/16-18 Price: $2.99 |
| 33 |
532187853 |
BELLCRANK SHIFTER Price: $12.99 |
| 34 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 35 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 36 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 37 |
532184086 |
BRACKET, PIVOT Price: $3.99 |
| 38 |
532187101 |
LINK, SPEED CONTROL Price: $64.99 |
| 39 |
532192110 |
TRUNNION, TRACTION Price: $7.99 |
| 41 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 42 |
532179065 |
PIN, PIVOT BRACKET Price: $8.99 |
| 43 |
532184085 |
BRACKET Price: $2.69 |
| 44 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 45 |
532422762 |
KIT.SERVCE.IDLER.PULLEY This part replaces 532184074. Price: $79.99 |
| 46 |
532178624 |
PAN, FRAME BOTTOM This part replaces 532184084. Price: $17.99 |
| 47 |
871020512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $2.99 |
| 48 |
532181156 |
NUT.SPEED.5/16-18 Price: $3.99 |
| 49 |
532407863 |
SWITCH.PTO.T Price: $37.99 |
| 50 |
583706301 |
END.PLATE.DS.SNOW.BLACK This part replaces 532188002. Price: $14.99 |
| 51 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532406109. Price: $29.99 |
| 52 |
532057079 |
THRUST WASHER Price: $1.99 |
| 53 |
598672770 |
Keys This part replaces 532193071. Price: $5.99 |
| 55 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 56 |
532436311 |
PLATE.ENGINE.MOUNT.ORANGE This part replaces 532403908. Price: $27.99 |
| 57 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
| 58 |
532198563 |
CORD.ELECTRIC.10FT.120V.SNOW Price: $19.99 |
