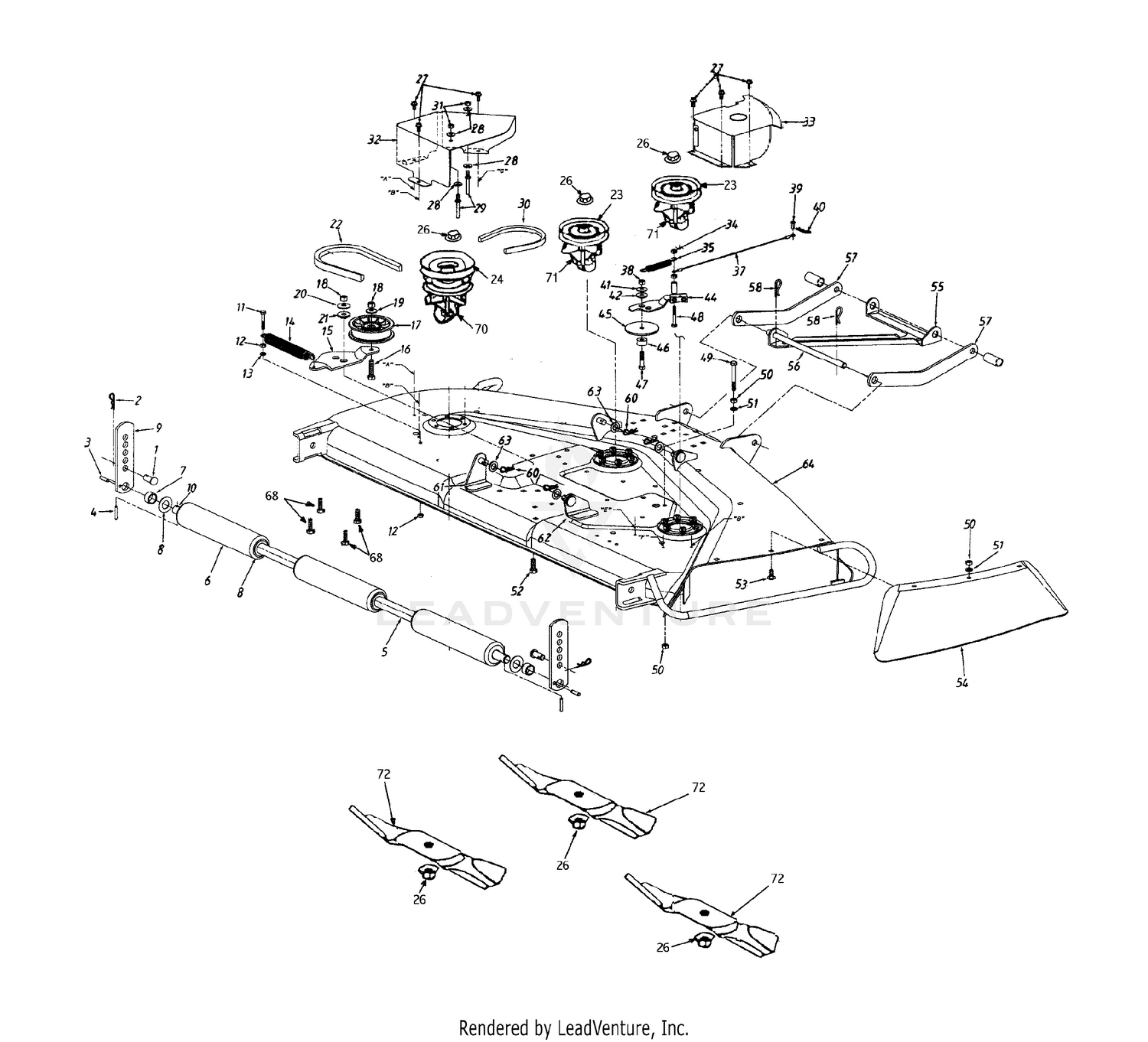

| Ref | Part Number | Description |
|---|
| 1 |
711-0310 |
Clevis Pin Price: $9.46 |
| 2 |
714-0101 |
Hairpin Clip Price: $4.13 |
| 3 |
715-0108 |
Spring Pin 1/4" x 1" Lg. Price: $4.38 |
| 4 |
915-0246 |
Roll Pin 3/16 x 1.25" Not Available This part replaces 715-0246. Price: |
| 5 |
750-0288 |
SPACER-TUBE Not Available Price: |
| 6 |
731-0335 |
Deck Roller Price: $63.49 |
| 7 |
750-0212 |
Spacer .75" I.D. Price: $9.97 |
| 8 |
736-0188 |
Fl-Wash. .76" I.D. x 1.5" O.D. Price: $3.75 |
| 9 |
12650 |
Height Adjuster Price: $31.14 |
| 10 |
738-0295 |
Roller Shaft Price: $109.39 |
| 11 |
710-0698 |
SCREW 1/4-28 x 1.50 GR5 Not Available Price: |
| 12 |
712-0138 |
Hex Nut 1/4-28 Thd. Price: $5.99 |
| 13 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 14 |
932-0594A |
Extension Spring 6.17" Lg. This part replaces 732-0594A. Price: $13.74 |
| 15 |
783-0139B-0637 |
IDLER BRACKET Not Available This part replaces 783-0139. Price: |
| 16 |
710-0459A |
Hex Cap Screw 3/8-24 x 1.5 This part replaces 710-0459. Price: $6.50 |
| 17 |
756-0627D |
Fl-Idler Pulley 3.5" O.D. This part replaces 7560627. Price: $28.58 |
| 18 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 19 |
736-0105 |
Bell-Wash. 3/8" I.D. Price: $3.96 |
| 20 |
736-0331 |
Bell-Wash. .39" I.D. x 1.13" O.D. Price: $3.50 |
| 21 |
938-0347 |
Shld. Spacer .625" I.D. This part replaces 738-0347. Price: $8.93 |
| 22 |
954-0291A |
V-Belt 1/2" x88"x 2 (Kevlar) This part replaces 754-0291A. Price: $53.07 |
| 26 |
712-0417A |
HEX NUT Price: $6.50 |
| 27 |
710-0599 |
Hex Wash. Hd. Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 28 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 29 |
711-0747 |
BELT GUARD ROD Price: $8.99 |
| 30 |
954-0364 |
V-Belt This part replaces 754-0364. Price: $62.16 |
| 31 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 32 |
783-0131 |
BELT GUARD (LH) Not Available Price: |
| 33 |
783-0130 |
BELT GUARD (RH) Not Available Price: |
| 34 |
712-0117 |
HEX NUT Not Available Price: |
| 35 |
932-0429A |
Extension Spring 3.97" Lg. This part replaces 732-0429A. Price: $8.29 |
| 37 |
727-0295 |
BRAKE CABLE Not Available Price: |
| 38 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 39 |
911-0701 |
Clevis Pin 1/4" Dia. x .53" Lg. This part replaces 711-0701. Price: $5.99 |
| 40 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 41 |
736-0425 |
Bell-wash. .325" I.D. Price: $3.95 |
| 42 |
748-0234 |
Shld. Spacer Price: $3.86 |
| 44 |
97116 |
Deck Brake Brkt. Ass'y. This part replaces 17116. Price: $48.57 |
| 45 |
736-0416 |
FLAT WASHER .323 ID x 3 x .125 Not Available Price: |
| 46 |
750-0214 |
SPACER Not Available Price: |
| 47 |
710-0624 |
Hex Bolt 5/16-24 x 1.5" Lg. (Gr.5) Price: $5.37 |
| 48 |
710-0559 |
SCREW 1/4-28 x 1.75 GR5 Not Available Price: |
| 49 |
710-0378 |
Hex Bolt 5/16-18 x 2.5" Lg. Price: $4.09 |
| 50 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 51 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 52 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. Price: $4.02 |
| 53 |
710-0451 |
Carr. Bolt 5/16-18 x .75" Lg. Price: $3.53 |
| 54 |
12649-0637 |
GUARD-CHUTE Not Available This part replaces 12649. Price: |
| 55 |
17264 |
BRACE-DIAGONAL Not Available Price: |
| 56 |
738-0392 |
CONNECTING ROD Not Available Price: |
| 57 |
17347-0637 |
STABILIZER-DECK Not Available This part replaces 17347. Price: |
| 58 |
714-0149B |
Hairpin Clip Price: $3.95 |
| 60 |
714-0145 |
Hairpin Clip Price: $4.42 |
| 61 |
N/A |
UNKNOWN |
| 62 |
N/A |
UNKNOWN |
| 63 |
736-0192 |
Fl-Wash. 1/2" I.D. x .93" O.D. Price: $3.75 |
| 68 |
710-1260A |
Hex Wash. Hd. Scr. 5/16-18 x .75" This part replaces 7101260. Price: $3.34 |
