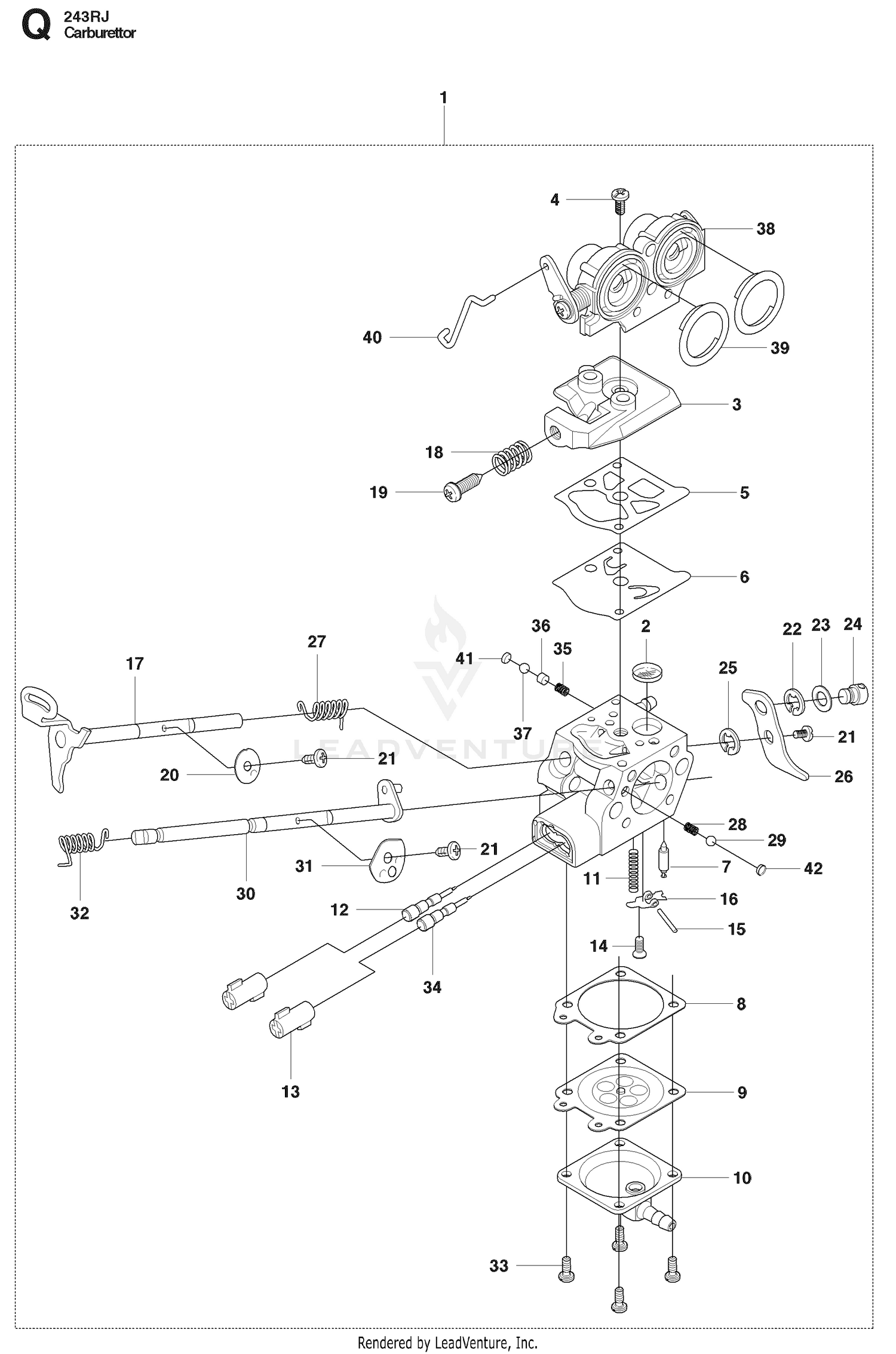

CARBURETOR DETAILS
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 100-5389 | PIN-LYNCH Price: $7.46 |
| 1 | 521625001 | Price: Call Us |
| 2 | 100-5373 | PIN-LINK, BOTTOM Price: $45.12 |
| 2 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 505055101. Price: $3.99 |
| 3 | 100-5374 | GUARD-PTO Price: $80.24 |
| 3 | 521639801 | COVER Price: $11.92 |
| 4 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 4 | 521640001 | SCREW Price: $6.33 |
| 5 | 33114-020 | SCREW-HH Price: $0.28 |
| 5 | 520954801 | GASKET This part replaces 505055401. Price: $9.99 |
| 6 | 100-3648 | PTO Price: $578.14 |
| 6 | 516221701 | DIAPHRAGM,PUMP(RPLS-330481150) Price: $8.32 |
| 7 | 100-7641 | WASHER-FLAT Price: $8.14 |
| 7 | 521085401 | VALVE INLET This part replaces 505055601. Price: $11.99 |
| 8 | 3219-8 | NUT-HEX Price: $5.16 |
| 8 | 520977901 | GASKET Price: $4.99 |
| 9 | 100-5372 | PIN-LINK, TOP Price: $25.65 |
| 10 | 100-5445 | PLUG-PLASTIC Price: $10.56 |
| 10 | 521639701 | COVER Price: $24.45 |
| 11 | 100-5446 | PLUG-PLASTIC Price: $8.64 |
| 11 | 505055701 | NEEDS DESCRIPTION Price: Call Us |
| 12 | 100-5375 | PLUG-PLATE, END Price: $7.64 |
| 12 | 521585401 | NEEDLE Price: $27.99 |
| 13 | 33025-00 | NUT-LOCK, NI Price: $0.54 |
| 13 | 521116901 | CAP Price: $7.99 |
| 14 | 33095-00 | WASHER-FLAT Price: $0.25 |
| 14 | 505055901 | Price: Call Us |
| 15 | 33115-025 | SCREW-HH Price: $0.61 |
| 15 | 505055801 | Price: Call Us |
| 16 | 2412-133 | CLAMP-R Price: $3.19 |
| 16 | 520977201 | LEVER This part replaces 505056001. Price: $4.99 |
| 17 | 521640401 | SHAFT Price: $23.34 |
| 17 | 74-0720 | TUBE-MANUAL Price: $22.99 |
| 18 | 513225601 | SPRING This part replaces 516279401. Price: $2.69 |
| 19 | 33115-040 | SCREW-HH Price: $1.22 |
| 19 | 513192901 | SCREW This part replaces 516213801. Price: $3.92 |
| 20 | 104-9903 | WASHER Price: $26.19 |
| 20 | 505056601 | NEEDS DESCRIPTION Price: Call Us |
| 21 | 3256-8 | WASHER-FLAT Price: $1.09 |
| 21 | 505056701 | Price: Call Us |
| 22 | 3296-51 | NUT-LOCK, NI Price: $3.23 |
| 22 | 506612501 | RING Price: $1.99 |
| 23 | 516524201 | WASHER Price: $2.99 |
| 24 | 513400801 | SWIVEL This part replaces 516523801. Price: $11.99 |
| 25 | 505056501 | E-RING Price: $3.99 |
| 26 | 521645501 | LEVER, THROTTLE Price: $9.55 |
| 27 | 516843901 | SPRING RETURN This part replaces 505056801. Price: $4.99 |
| 28 | 514243301 | CHOKE SPRING This part replaces 521066101. Price: $5.99 |
| 29 | 514242601 | BALL This part replaces 521065501. Price: $5.99 |
| 30 | 521645101 | SHAFT, CHOKE Price: $24.33 |
| 31 | 521624701 | Price: Call Us |
| 32 | 514243601 | SPRING This part replaces 521066501. Price: $2.99 |
| 33 | 505057801 | Price: Call Us |
| 34 | 521645001 | NEEDLE Price: $15.40 |
| 35 | 505057901 | SPRING Price: $2.99 |
| 36 | 505058001 | Price: Call Us |
| 37 | 516936001 | BALL Price: $2.99 |
| 38 | 521625101 | Price: Call Us |
| 39 | 525419301 | Price: Call Us |
| 40 | 521625201 | NEEDS DESCRIPTION Price: Call Us |
| 41 | 516342901 | PLUG Price: $6.99 |
| 42 | 525555001 | Price: Call Us |
