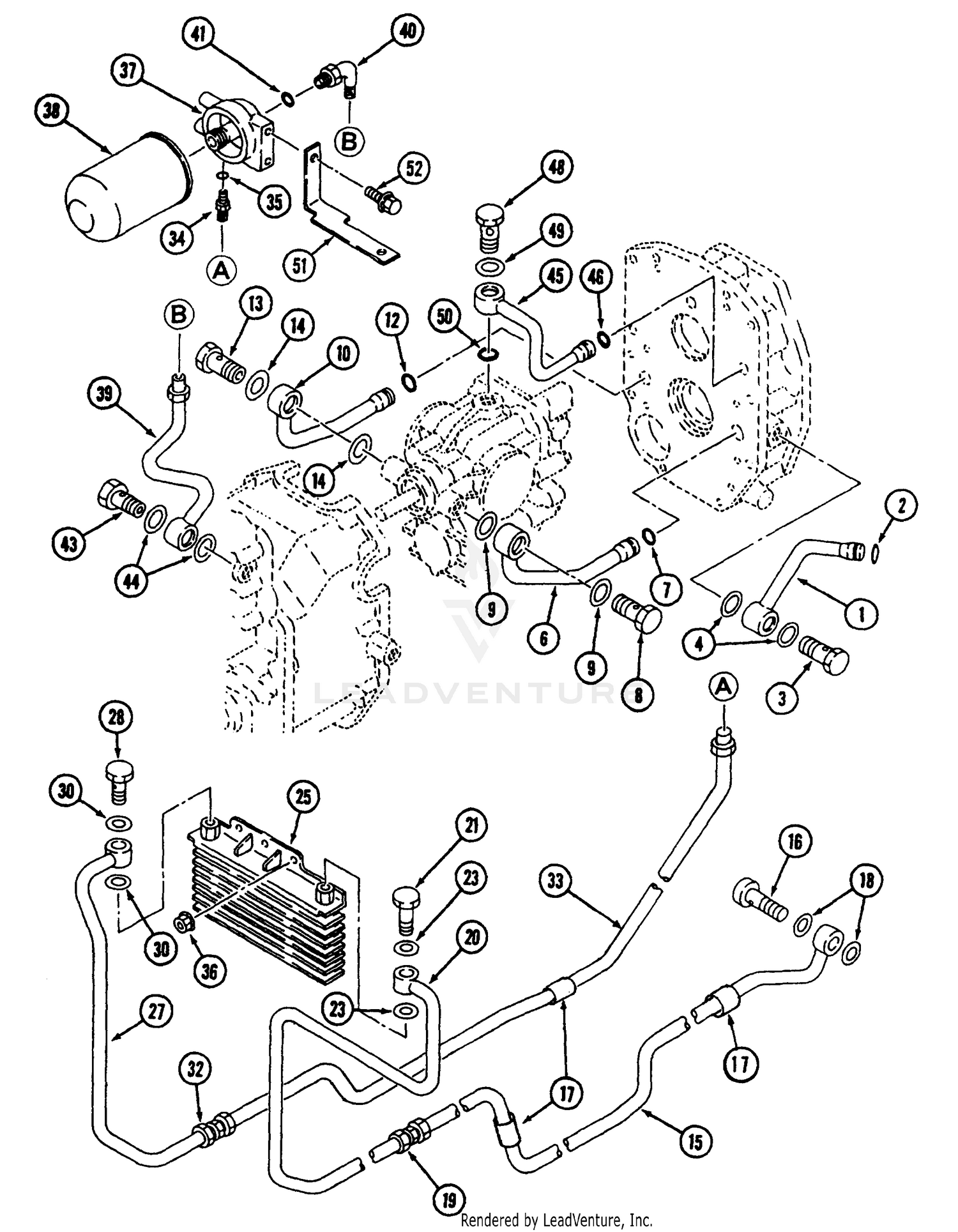

Hydraulic Line 730 HST (Part 3)
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | MA-19642541AG0 | PIPE L Not Available Price: |
| 2 | 108-3811 | FILTER-AIR This part replaces 93-2195. Price: $21.47 |
| 2 | MA-08301100160 | O-Ring Price: $3.46 |
| 3 | 94-3652 | COVER ASM Price: $90.38 |
| 3 | MA-10302541000 | BOLT EYE Not Available Price: |
| 4 | 93-2191 | AIR CLEANER MOUNTING BAND ASM Price: $54.37 |
| 4 | MA-08331002200 | SEAL WASHER Not Available Price: |
| 5 | 33024-00 | NUT-LOCK, NI This part replaces 48-9510. Price: $0.75 |
| 6 | 94-3654 | SPRING Price: $9.05 |
| 6 | MA-19642542AG0 | PIPE M Not Available Price: |
| 7 | 94-3653 | BOLT Price: $18.14 |
| 7 | MA-08301100160 | O-Ring Price: $3.46 |
| 8 | 87-9400 | VALVE-VACUATOR Price: $11.48 |
| 8 | MA-10302541000 | BOLT EYE Not Available Price: |
| 9 | 285-17 | PLUG-PIPE Price: $2.59 |
| 9 | MA-08331002200 | SEAL WASHER Not Available Price: |
| 10 | MA-19642543AG0 | PIPE N Not Available Price: |
| 12 | MA-08301100140 | O-RING Not Available Price: |
| 13 | MA-10302541000 | BOLT EYE Not Available Price: |
| 14 | MA-08331002200 | SEAL WASHER Not Available Price: |
| 15 | MA-19682507AG0 | PIPE ASSEMBLY (P) Not Available Price: |
| 16 | MA-10302534000 | BOLT EYE Not Available Price: |
| 17 | MA-11352474000 | PIPE Not Available Price: |
| 18 | MA-08331001601 | SEAL WASHER Not Available This part replaces MA-08331001600. Price: |
| 19 | MA-06201115001 | BODY Not Available Price: |
| 20 | MA-19682508AG0 | PIPE ASSEMBLY (Q) Not Available Price: |
| 21 | MA-10302534000 | BOLT EYE Not Available Price: |
| 23 | MA-08331001601 | SEAL WASHER Not Available Price: |
| 25 | MA-19642552000 | Cooler,Oil Price: $550.56 |
| 27 | MA-19682505AG1 | PIPE ASSEMBLY (S) Not Available Price: |
| 28 | MA-10302534000 | BOLT EYE Not Available Price: |
| 30 | MA-08331001601 | SEAL WASHER Not Available Price: |
| 32 | MA-06201115001 | BODY Not Available Price: |
| 33 | MA-19682506AG1 | PIPE ASSEMBLY (U) Not Available Price: |
| 34 | MA-06203115171 | BODY Not Available Price: |
| 35 | MA-08301100140 | O-RING Not Available Price: |
| 36 | MA-F3010108001 | NUT Not Available Price: |
| 37 | MA-19632559AG0 | HEAD FILTER Not Available Price: |
| 38 | MA-19632558000 | Filter, Oil Price: $90.95 |
| 39 | MA-19642560AG0 | PIPE V ASSEMBLY Not Available Price: |
| 40 | MA-06205115171 | FITTING-ELBOW Not Available Price: |
| 41 | MA-08301100140 | O-RING Not Available Price: |
| 43 | MA-10302534000 | BOLT EYE Not Available Price: |
| 44 | MA-08331001601 | SEAL WASHER Not Available This part replaces MA-08331001600. Price: |
| 45 | MA-19642563AG0 | PIPE W Not Available Price: |
| 46 | MA-08301100140 | O-RING Not Available Price: |
| 48 | MA-10302541000 | BOLT EYE Not Available Price: |
| 49 | MA-08331002200 | SEAL WASHER Not Available Price: |
| 50 | MA-08301100240 | O-RING Not Available Price: |
| 51 | MA-19642564AG0 | BRACKET Not Available Price: |
