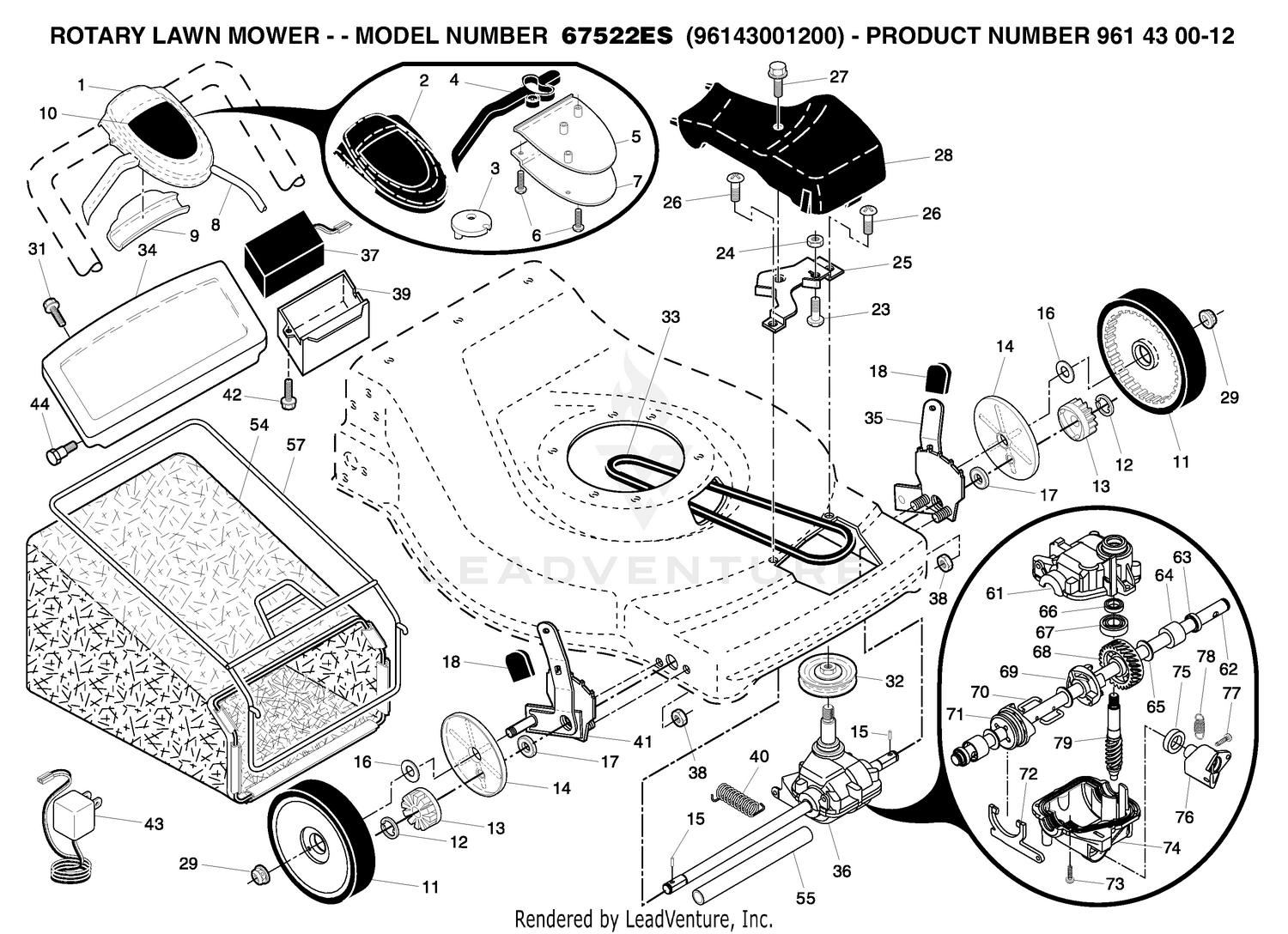

| Ref | Part Number | Description |
|---|
| 1 |
532404142 |
CONTROL.DR.EZ.FWG.SHORT.BK/BK This part replaces 532197194. Price: $64.99 |
| 2 |
532414555 |
KIT.CONTROL.DR.CASE.HALVES.GRY This part replaces 532195761. Price: $29.99 |
| 3 |
532187353 |
PULLEY.CAM.DRIVE.CONTROL.HV Price: $6.99 |
| 4 |
532425583 |
LEVER.SHORT.BLACK.EZ.WALK This part replaces 532190039. Price: $14.99 |
| 5 |
532414555 |
KIT.CONTROL.DR.CASE.HALVES.GRY This part replaces 532195762. Price: $29.99 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL Price: $4.99 |
| 8 |
532197195 |
CABLE ASM Price: $44.99 |
| 9 |
532186297 |
EZ WALK SNAP COVER PLATE Price: $5.99 |
| 10 |
532189074 |
DECAL.DRIVE.CONTROL.HV Price: $5.99 |
| 11 |
581009202 |
WHEEL.8X1.75.5SPK.RAD.3.GREY This part replaces 532400543. Price: $19.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532403849 |
PINION.14.TEETH.FGD This part replaces 532750003. Price: $5.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 15 |
532404845 |
PAWL, DRIVE This part replaces 532191017. Price: $4.99 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 17 |
587070202 |
BEARING.SUPPORT.ASM This part replaces 532191039. Price: $12.99 |
| 18 |
532196401 |
KNOB.DELUXE.GRAY Price: $3.99 |
| 23 |
532088652 |
HINGE SCREW Price: $3.99 |
| 25 |
532197386 |
BRKT.CABLE/BELT.GUARD. Price: $6.99 |
| 26 |
532192325 |
SCREW.HEX.WSH Price: $4.99 |
| 27 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 28 |
532432666 |
COVER.DR.ASM.194407X498.CE This part replaces 532197370. Price: $17.99 |
| 29 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 31 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 32 |
532443262 |
RP PULLEY.DRIVE.EZ/VAR.SCREWON This part replaces 532194018. Price: $9.99 |
| 33 |
532196857 |
BELT.DRIVE.FG Price: $14.99 |
| 34 |
532411190 |
PANEL.TRIM.21.FWGD.ES This part replaces 532186153. Price: $32.99 |
| 35 |
581497908 |
ADJUSTER.ASM.22+FGD.RF /AWD RT This part replaces 532195110. Price: $19.99 |
| 36 |
532191636 |
TRANSMISSION.22.FWGD Price: $79.99 |
| 37 |
584353901 |
BATTERY.12V.22+RWGD.AGM This part replaces 532189589. Price: $84.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 39 |
532186237 |
BOX.BATTERY.TRIM Price: $5.99 |
| 40 |
532192849 |
SPRING RETURN Price: $4.99 |
| 41 |
581497907 |
ADJUSTER.ASM.22+FGD.LF /AWD LT This part replaces 532195107. Price: $14.99 |
| 42 |
817411308 |
SCREW.HWH.13-16X.50 Price: $2.99 |
| 43 |
597186301 |
Chargers This part replaces 532190097. Price: $32.99 |
| 44 |
532175551 |
SCREW.SHOULDER.HH.10X.281X.6 Price: $2.99 |
| 54 |
532401963 |
GRASS.BAG.BLACK.GENERIC This part replaces 532401189. Price: $44.99 |
| 55 |
532086012 |
DRV SHAFT TUBE PM Price: $5.46 |
| 57 |
532189680 |
FRAME.GBAG.EZ.EMPTY Price: $59.99 |
| 61 |
532196886 |
GEARCASE.HOUSING Price: $12.99 |
| 62 |
532191636 |
TRANSMISSION.22.FWGD This part replaces 532197057. Price: $79.99 |
| 63 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 64 |
532183511 |
BUSHING Price: $4.99 |
| 65 |
532183509 |
WASHER Price: $3.99 |
| 66 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
| 67 |
532183506 |
BEARING Price: $5.99 |
| 68 |
532183499 |
GEAR.27.TEETH.WALK.MOWER Price: $14.99 |
| 69 |
532196884 |
CLUTCH Price: $3.99 |
| 70 |
532183505 |
WIRE, FORMED (15966) Price: $5.99 |
| 71 |
532196883 |
CLUTCH Price: $4.99 |
| 72 |
532196882 |
FORK Price: $5.99 |
| 73 |
532183513 |
SCREW Price: $3.99 |
| 74 |
532196881 |
GEARCASE.HOUSING.LOWER Price: $12.99 |
| 75 |
532196880 |
SEAL Price: $4.99 |
| 76 |
532196879 |
LEVER Price: $5.99 |
| 77 |
532196878 |
SCREW.LEVER. Price: $6.99 |
| 78 |
532196877 |
SPRING. Price: $4.99 |
| 79 |
532183502 |
SHAFT INPUT (13041) Price: $24.99 |
