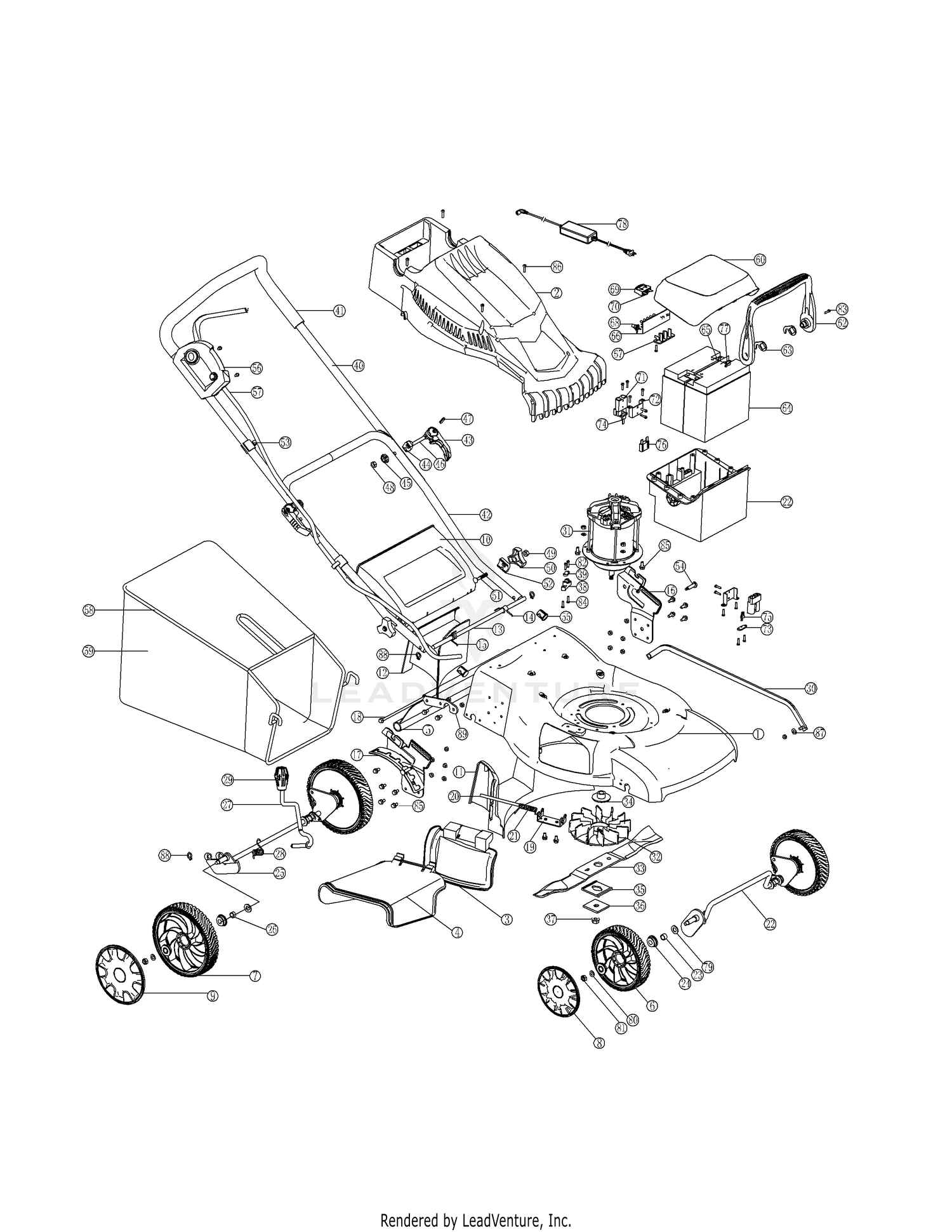

| Ref | Part Number | Description |
|---|
| 1 |
787-01839A |
DECK Not Available This part replaces 787-01839. Price: |
| 2 |
731-07671 |
SHROUD Not Available Price: |
| 3 |
731-07619 |
Side Discharge Door Not Available Price: |
| 4 |
731-07620 |
DISCHARGE CHUTE Not Available Price: |
| 5 |
731-07621 |
TRAILSHIELD Not Available Price: |
| 6 |
734-04553 |
Front Wheel Price: $22.27 |
| 7 |
734-04554 |
REAR WHEEL Not Available Price: |
| 8 |
731-07512 |
Wheel Cap Price: $3.65 |
| 9 |
721-04378 |
SHROUD SEAL Not Available Price: |
| 10 |
731-07622 |
REAR DOOR Not Available Price: |
| 11 |
731-07623 |
REAR BAFFLE Not Available Price: |
| 12 |
731-07624 |
Mulching Plug Price: $18.47 |
| 13 |
711-05358 |
PIN Not Available Price: |
| 14 |
732-04733 |
SPRING Not Available Price: |
| 15 |
732-04734 |
SPRING Not Available Price: |
| 16 |
787-01824A |
BRACKET (LH) Not Available Price: |
| 17 |
787-01825A |
BRACKET (RH) Not Available Price: |
| 18 |
711-05325 |
TRAILSHIELD ROD Not Available Price: |
| 19 |
787-01813 |
MULCH DOOR BRACKET Not Available Price: |
| 20 |
711-05326 |
Side Discharge Pin Price: $3.86 |
| 21 |
732-04713 |
MULCH DOOR SPRING Not Available Price: |
| 22 |
611-04181 |
FRONT SHAFT ASSEMBLY Not Available Price: |
| 23 |
741-04464 |
Front Shaft Bushing Price: $3.24 |
| 24 |
741-04474 |
BEARING Not Available Price: |
| 25 |
611-04182 |
REAR SHAFT ASSEMBLY Not Available Price: |
| 26 |
941-04465 |
SPACER BUSHING Not Available This part replaces 741-04465. Price: |
| 27 |
732-04735 |
HEIGHT ADJUST PLATE Not Available Price: |
| 28 |
732-04715 |
HEIGHT ADJUST SPRING Not Available Price: |
| 29 |
720-04143 |
HEIGHT ADJUSTMENT KNOB Not Available Price: |
| 30 |
787-01826 |
HEIGHT ADJUST ROD Not Available Price: |
| 31 |
924-04095 |
MOTOR Not Available This part replaces 724-04095. Price: |
| 32 |
731-07515 |
ELECTRIC MOTOR FAN Not Available Price: |
| 33 |
942-04321 |
BLADE Not Available Price: |
| 34 |
736-04486 |
FLANGE Not Available Price: |
| 35 |
731-07598 |
Washer Price: $3.49 |
| 36 |
736-04487 |
Washer Price: $3.86 |
| 37 |
712-04237 |
Blade Nut Price: $3.49 |
| 38 |
731-07672 |
SUPPORT Not Available Price: |
| 39 |
731-07673 |
STRAIN RELIEF Not Available Price: |
| 40 |
749-04670A |
UPPER HANDLE Not Available Price: |
| 41 |
731-07522 |
HANDLE GRIP Not Available Price: |
| 42 |
749-04688A |
LOWER HANDLE Not Available Price: |
| 43 |
720-04145 |
QUICK RELEASE HANDLE Not Available Price: |
| 44 |
736-04488 |
Washer Price: $3.58 |
| 45 |
720-04146 |
Quick Release Knob Price: $3.95 |
| 46 |
710-05151 |
SCREW M8 Not Available Price: |
| 47 |
715-04107 |
PIN Not Available Price: |
| 48 |
712-04257 |
NUT M8 Not Available Price: |
| 49 |
712-04250 |
NYLOCK NUT Not Available Price: |
| 50 |
720-04147 |
Wing Knob Price: $3.77 |
| 51 |
710-05082 |
Screw Price: $3.39 |
| 52 |
736-04489 |
Washer Price: $3.39 |
| 53 |
731-07524 |
CORD CLIP Not Available Price: |
| 54 |
714-04088 |
SHOULDER BOLT Not Available Price: |
| 55 |
731-07513 |
CAP Not Available Price: |
| 56 |
625-04129 |
SWITCH BOX ASSEMBLY W/CORD Not Available This part replaces 625-04130. Price: |
| 57 |
725-05156 |
CORD Not Available Price: |
| 58 |
747-05304 |
Clamp Not Available Price: |
| 59 |
764-04096 |
Grassbag Price: $48.80 |
| 60 |
731-07674 |
BATTERY PACK COVER Not Available Price: |
| 61 |
731-07675 |
BATTERY HOUSING Not Available Price: |
| 62 |
731-07676 |
HANDLE Not Available Price: |
| 63 |
787-01840 |
BATTERY HOOK Not Available Price: |
| 64 |
725-05157 |
BATTERY Not Available Price: |
| 65 |
725-05158 |
CONNECTOR Not Available Price: |
| 66 |
725-05159 |
PCB Not Available Price: |
| 67 |
725-05160 |
PCB SUPPORT Not Available Price: |
| 68 |
725P05161 |
CONNECTOR Not Available This part replaces 725-05161. Price: |
| 69 |
925-05162 |
SAFETY KEY Not Available This part replaces 725-05162. Price: |
| 70 |
725-05163 |
KEY CONNECTOR Not Available Price: |
| 71 |
725-05164 |
SA50 CONNECTOR Not Available Price: |
| 72 |
725-05165 |
SUPPORT Not Available Price: |
| 73 |
731-07678 |
SUPPORT Not Available Price: |
| 74 |
725-05170 |
CONNECTOR Not Available Price: |
| 75 |
725-05169 |
CONNECTOR Not Available Price: |
| 77 |
725-05167 |
BOARD Not Available Price: |
| 78 |
725-05166 |
CHARGER Not Available Price: |
| 79 |
736-04507 |
WASHER Not Available Price: |
| 80 |
736-04506 |
WASHER-8MM Not Available Price: |
| 81 |
712-04258 |
NUT M8 Not Available Price: |
| 82 |
710-05156 |
SCREW 4.2 x 16 Not Available Price: |
| 83 |
710-05155 |
SCREW 4.2 x 25 Not Available Price: |
| 84 |
710-05154 |
SCREW 4.8 x 16 Not Available Price: |
| 85 |
710-05153 |
SCREW M6 x 12 Not Available Price: |
| 86 |
710-05152 |
SCREW M5 x 12 Not Available Price: |
| 87 |
736-04508 |
WASHER Not Available Price: |
| 88 |
716-04169 |
LOCK RING Not Available Price: |
| 89 |
787-01841 |
SUPPORT Not Available Price: |
