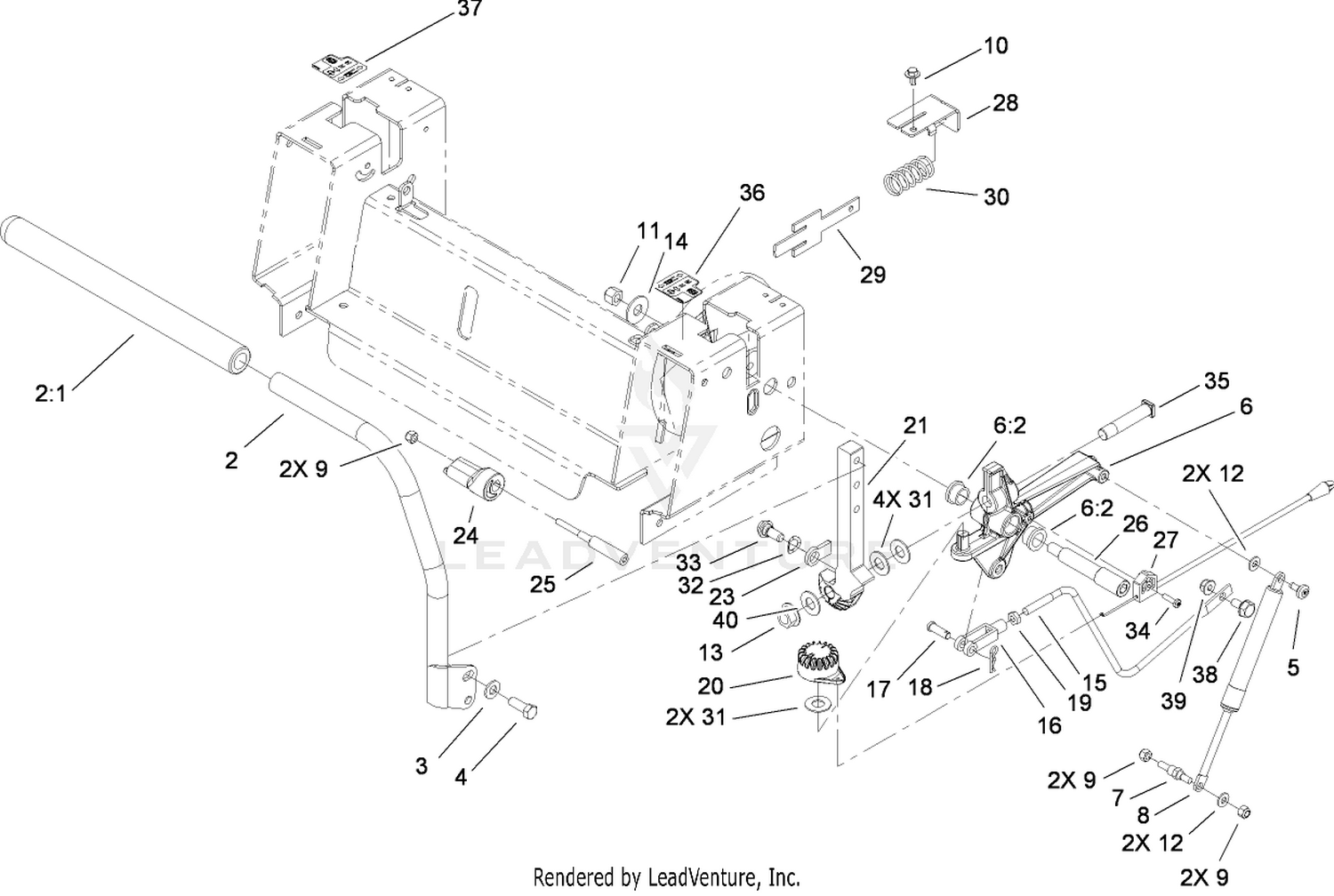

| Ref | Part Number | Description |
|---|
| 2 |
110-6815 |
LH HANDLE ASM Price: $52.55 |
| 3 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 4 |
323-6 |
SCREW-HH Price: $0.66 |
| 5 |
120-7950 |
SCREW-SHOULDER This part replaces 112-4004. Price: $1.79 |
| 6 |
110-6828 |
ACTIVATOR ARM ASM Price: $38.11 |
| 7 |
110-6810 |
STUD-DAMPER Price: $3.50 |
| 8 |
131-4132 |
DAMPER This part replaces 103-2913. Price: $43.77 |
| 9 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 10 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 11 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 12 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 13 |
32128-23 |
NUT-HF Price: $1.51 |
| 14 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 15 |
110-6693 |
LINK-HYDRO Price: $11.89 |
| 16 |
1-303105 |
YOKE-ADJUSTABLE Price: $11.99 |
| 17 |
1-808280 |
PIN-CLEVIS Price: $1.70 |
| 18 |
1-806003 |
PIN-COTTER Price: $1.39 |
| 19 |
3220-2 |
NUT-JAM Price: $0.50 |
| 20 |
110-6845 |
GEAR-CONTROL Price: $4.34 |
| 21 |
110-6783-05 |
ARM-ACTUATOR, LH This part replaces 110-6783. Price: $48.98 |
| 23 |
110-6856 |
TAB-STOP Price: $2.14 |
| 24 |
110-6873 |
ECCENTRIC Price: $3.52 |
| 25 |
110-6874 |
SCREW-ECCENTRIC Price: $6.47 |
| 26 |
110-6875 |
BOLT-SHOULDER Price: $16.65 |
| 27 |
110-6858 |
CABLE-BRAKE, PARKING Price: $12.03 |
| 28 |
110-6751 |
BRACKET-RETURN Price: $4.34 |
| 29 |
110-6750 |
PLATE-RETURN Price: $4.34 |
| 30 |
110-6752 |
SPRING-COMPRESSION Price: $2.14 |
| 31 |
110-6894 |
WASHER-PIVOT Price: $0.59 |
| 32 |
3290-221 |
WASHER-SPRING Price: $3.12 |
| 33 |
94-7582 |
BOLT-SHOULDER Price: $3.09 |
| 34 |
110-0863 |
SCREW Price: $2.02 |
| 35 |
110-6784 |
BOLT-SHOULDER Price: $3.50 |
| 36 |
112-9750 |
DECAL-CONTROL LEVER, LH Price: $3.06 |
| 37 |
112-9751 |
DECAL-CONTROL LEVER, RH Price: $3.06 |
| 38 |
37-8771 |
BOLT-SHOULDER,HFH Price: $3.59 |
| 39 |
104-8300 |
NUT-HF, NI Price: $0.39 |
