| Ref | Part Number | Description |
|---|

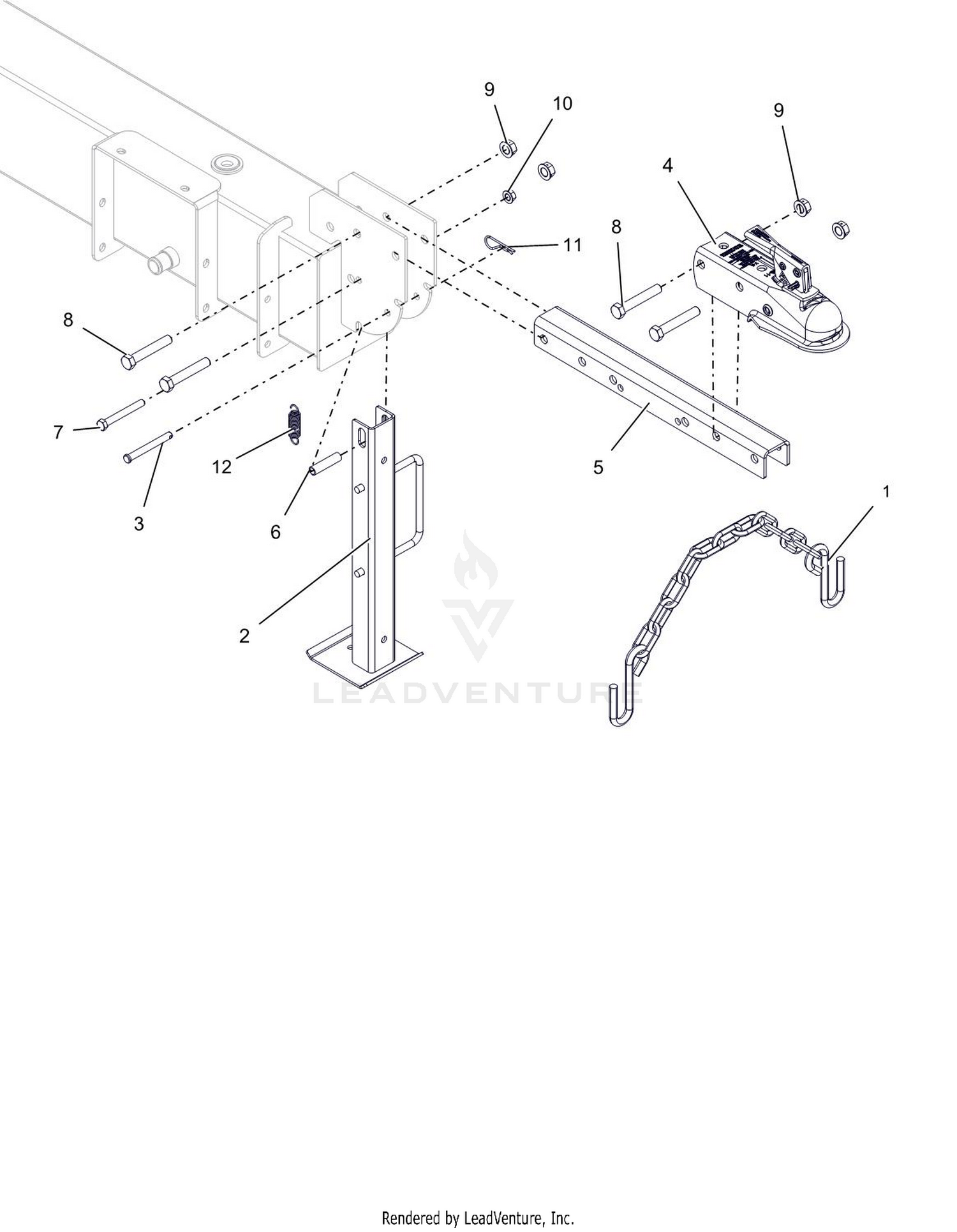

| 1 |
03846700 |
CHAIN, SAFETY Price: $32.95 |
| 1 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 1 |
463315 |
Belt Cover w/Decals Price: Call Us |
| 2 |
03938151 |
WLDMT, JACK STAND Price: $134.95 |
| 2 |
3-6514 |
THRUST WASHER Price: $1.74 |
| 2 |
481625-01 |
Knob, w/stud 3/8-16 x 1-1/4" Price: Call Us |
| 3 |
02747500 |
PIN-CLEV .371X3.25 YWZC Price: $5.95 |
| 3 |
26-1340 |
GEAR Price: $488.25 |
| 3 |
427189 |
Reference Bar Price: Call Us |
| 4 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 4 |
05131100 |
COUPLER-BALL 2.000" Price: $67.45 |
| 4 |
18-6430 |
KEY-SQUARE Price: $3.56 |
| 5 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 5 |
51705800 |
HITCH BAR W/SAFETY DECAL-CE Price: Call Us |
| 6 |
05533500 |
SPCR, WHEEL .385X.500X2.00 Price: $8.45 |
| 6 |
481885-06 |
Knob, 5/16-18 Price: Call Us |
| 7 |
04003-04 |
Bolt, Carriage 5/16-18x1" (large frame units only) Price: Call Us |
| 7 |
05901814 |
BLT, HEX .38-16X3.00 G5 ZCC This part replaces 05957800. Price: $2.45 |
| 8 |
04024-03 |
Nut, Push-On 5/16-18 Price: Call Us |
| 8 |
05901737 |
BLT, HEX .50-13X3.00 G5 ZCC This part replaces 05959900. Price: $4.45 |
| 8 |
33-2040 |
SHIM Price: $2.71 |
| 9 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC This part replaces 06530008. Price: $0.95 |
| 9 |
26-1290 |
DISCONTINUED Price: Call Us |
| 9 |
452832 |
Handlebar Weldment, SVRII Price: Call Us |
| 10 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 10 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 10 |
302-14 |
VENT Price: $8.03 |
| 11 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 11 |
06700215 |
PIN, HAIR-#7 .094X2.31 ZC120 This part replaces 06712900. Price: $5.95 |
| 11 |
253-137 |
OIL SEAL Price: $5.70 |
| 12 |
26-1310 |
DISCONTINUED Price: Call Us |
| 12 |
427292 |
Bracket, Knee Pad - Lower Price: Call Us |
| 13 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 13 |
427289 |
Bracket, Knee Pad - Upper Price: Call Us |
| 14 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 15 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 15 |
237-91 |
GROMMET Price: $14.38 |
| 16 |
04112-05 |
Locknut, 1/2-13 Spiral Lock Price: Call Us |
| 16 |
254-90 |
BEARING-CUP Price: $11.29 |
| 17 |
254-91 |
CONE-BEARING Price: $18.65 |
| 17 |
481284 |
Bumper, Rubber 5/16-18 x 5/8" Price: Call Us |
| 18 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 18 |
26-1320 |
DISCONTINUED Price: Call Us |
| 19 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 19 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 20 |
23-1640 |
BUSHING-TAPERLOCK Price: $68.50 |
| 20 |
427253 |
Fender, RH Price: Call Us |
| 21 |
04003-05 |
Bolt, RDHD Carr. 3/8-16 x 1-1/2 (52" & 61") Price: Call Us |
| 21 |
3247-4 |
SCREW-SET Price: $0.54 |
| 22 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 22 |
26-1400 |
PULLEY-DECK Price: $539.17 |
| 23 |
04003-31 |
Bolt, Carriage 3/8-16 x 3/4" Price: Call Us |
| 23 |
3274-1 |
SCREW-HSH Price: $5.52 |
| 24 |
26-1390 |
DISCONTINUED Price: Call Us |
| 24 |
463270 |
Mainframe Assy. - SVRII Price: Call Us |
| 25 |
26-1380 |
OUTPUT BRG HSG Price: $162.98 |
| 25 |
428479 |
Guard, Foot -SVRII Price: Call Us |
| 26 |
26-1330 |
DISCONTINUED Price: Call Us |
| 26 |
427249 |
Switch Bracket, Operator Presence Price: Call Us |
| 27 |
26-1270 |
DISCONTINUED Price: Call Us |
| 27 |
48717 |
SWITCH, NEUTRAL INTERLOCK Price: Call Us |
| 28 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 29 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 30 |
48755 |
Spring,Counter Balance Price: Call Us |
| 31 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 32 |
43602 |
Spacer, Pump Dampener Price: Call Us |
| 33 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 35 |
483453-04 |
Bearing, .750 I.D. Plastic Price: Call Us |
| 36 |
04001-45 |
Capscrew, Hex Head 3/8-16 x 2.0" Price: Call Us |
| 37 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 38 |
43572 |
Yoke, Front Caster Wheel Price: Call Us |
| 39 |
486758 |
Isolator, Footplate Price: Call Us |
| 40 |
04040-05 |
Flatwasher, 3/8 (.406 x .812 x .065) Price: Call Us |
| 41 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 42 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 43 |
04017-36 |
Capscrew, 1/2-13 x 1" Serrated Flange Hex Head Price: Call Us |
| 44 |
427252 |
Fender, LH Price: Call Us |
| 45 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 46 |
427316 |
Battery Box, Lower Price: Call Us |
| 47 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 48 |
48661 |
PAD, BATTERY SUPPORT Price: Call Us |
| 49 |
485692 |
Insulation, Battery Cover (Gas Only) Price: Call Us |
| 50 |
428066 |
Battery Box, Upper Price: Call Us |
| 51 |
04040-14 |
Flatwasher, 1/4" (.312 x .750 x .065") Price: Call Us |
| 52 |
04021-08 |
HEX, NUT, ELASTIC STOP LOCK, 1/4-20 Price: Call Us |
| 53 |
427318 |
Battery Box Latch Price: Call Us |
| 54 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 55 |
487686 |
Grass Shield, Caster Price: Call Us |
| 59 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 61 |
481025 |
Seal, 2.00" O.D. x 1.625" Bore Price: Call Us |
| 62 |
48668 |
Bearing Set Price: Call Us |
| 63 |
484195 |
Cap, Grease Price: Call Us |
| 64 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 65 |
04001-28 |
BOLT, HEX HEAD, 7/16-14 X 1-1/4 Price: Call Us |
| 66 |
04117-05 |
Nut, 7/16-14 Flange Elastic Stop Price: Call Us |
| 67 |
04110-04 |
U-Nut, 3/8-16 Price: Call Us |
| 69 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 70 |
485846 |
BUMPER, PLUG Price: Call Us |
| 71 |
04003-13 |
Bolt, Carriage, 5/16-18 x 1½" Price: Call Us |
| 72 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 73 |
428526 |
Riser Price: Call Us |
