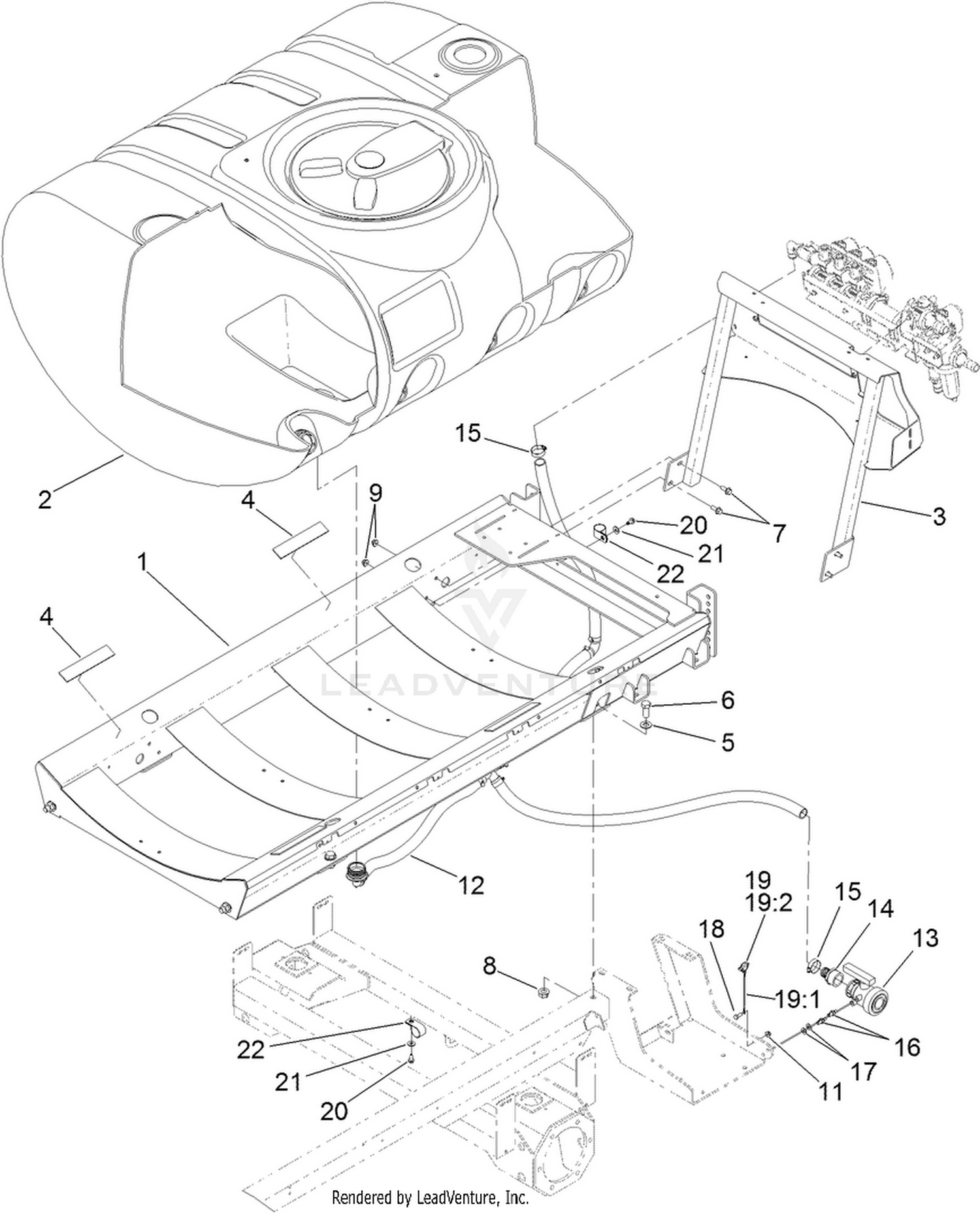

| Ref | Part Number | Description |
|---|
| 1 |
130-7092-03 |
TANK SADDLE ASM Price: $1,847.88 |
| 2 |
117-8005 |
TANK ASM Price: $2,772.40 |
| 3 |
131-3744-03 |
MOUNT-VALVE Price: $388.91 |
| 4 |
104-7102 |
PAD-BATTERY Price: $3.53 |
| 5 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 6 |
327-4 |
SCREW-HH Price: $2.20 |
| 7 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 8 |
32128-50 |
NUT-FLANGE Price: $1.78 |
| 9 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 11 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 12 |
132-4297 |
BYPASS HOSE ASM This part replaces 131-5774. Price: $229.84 |
| 13 |
108-0069 |
VALVE-BALL Price: $154.28 |
| 14 |
110-5224 |
FITTING-BARBED, STRAIGHT Price: $5.40 |
| 15 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 16 |
112-7900 |
MOUNT-PEG Price: $45.88 |
| 17 |
62-1230 |
WASHER-RUBBER Price: $5.39 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 19 |
98-0979 |
LYNCH PIN ASM Price: $20.82 |
| 20 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 21 |
3256-3 |
WASHER-FLAT Price: $0.49 |
