Home / OPE / Gravely Zero Turn / Pro-Turn 400 / 992207 (020000 - ) Pro-Turn 460 CARB, Kawasaki, 60" Deck / Deck Lift

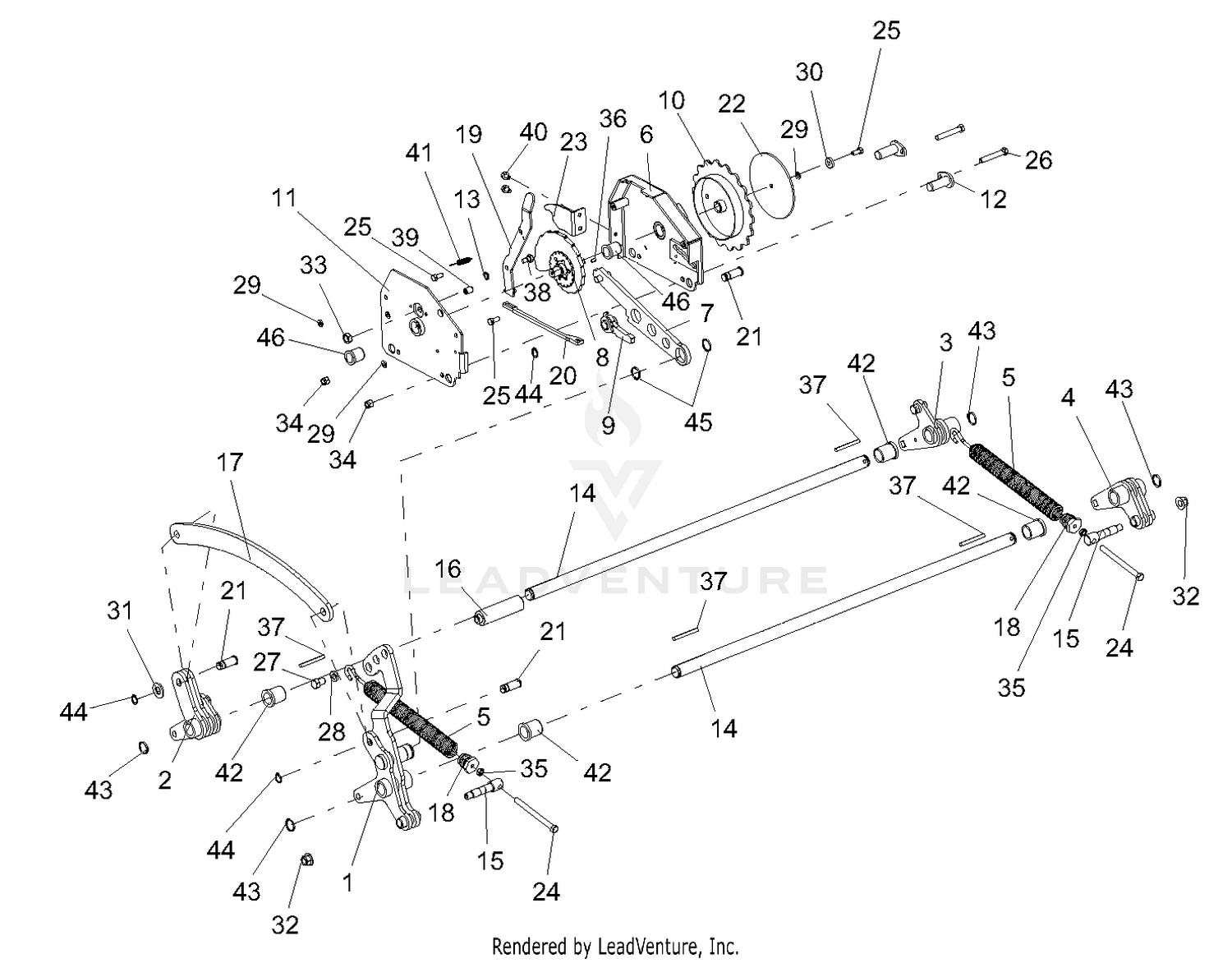

Deck Lift

Deck Lift

Parts (44)

RefPart NumberDescription
1 04367700 WMT, LIFT PEDAL Price: $207.45
2 04367800 WMT, RIGHT REAR LIFT Price: $78.45
3 04367900 WMT, LEFT REAR LIFT Price: $62.95
4 04372900 WMT, LEFT FRONT LIFT Price: $91.95
5 08300530 SPRING, DECK LIFT Price: $45.95
6 04374753 HOC INNER WLDMT - RED Price: $125.45
7 04373651 HOC LINK WLDMT - BLK Price: $53.95
8 04374900 WLDMT, CAM, HOC Price: $173.45
9 59226800 KIT, TRANSPORT LOCK This part replaces 04375600. Price: $35.95
10 59226100 KIT, HOC WHEEL This part replaces 04390200. Price: $122.45
11 04374853 WLDMT, HOC OUTER Price: $96.95
12 04375400 WLDMT, PIN HOC MOUNTING Price: $14.95
13 01320200 WAVE WASHER .390X.655X.110 Price: $3.45
14 03971300 SHAFT, FRONT MOWER LIFT Price: $144.95
15 04373200 TRUNION, DECK LIFT SPRING Price: $86.95
16 04373300 FOOT PEG, DECK LIFT Price: $29.95
17 04373451 LINK, CONNECTING Price: $44.95
18 04374200 PLUG, SPRING Price: $61.95
19 04390851 LEVER, TRANSPORT LOCK Price: $12.45
20 59226800 KIT, TRANSPORT LOCK This part replaces 04390900. Price: $35.95
21 04414200 PIN, CLEVIS .625 SNAP RING Price: $10.45
22 04415553 DIAL PLATE - RED Price: $11.95
23 04421253 GUARD, DECK LIFT Price: $6.45
24 05901506 BLT-HEX .38-16X5.00 GR5 FTH YZ Price: $3.60
25 05901704 BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45
26 05901812 BLT, HEX .38-16X2.50 G5 ZCC This part replaces 05958400. Price: $2.45
28 06300115 WSHR,LK-REG .500X.125 ZCC This part replaces 06307300. Price: $0.95
29 06300119 WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95
30 06401103 WSHR, FLT .328X.870X.179 ZCC This part replaces 06439100. Price: $2.95
31 06401118 WSHR, FLT .656X1.313X.095 ZCC This part replaces 06442800. Price: $2.45
32 06500810 NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45
33 06500911 NUT-JAM .500-13 G2 ZCC This part replaces 06529300. Price: $1.45
34 06500831 NUT-NYL .38-16 G5 ZCC This part replaces 06535800. Price: $2.95
35 06500910 NUT-JAM .375-16 G2 ZCC This part replaces 06535900. Price: $0.95
36 06600215 KEY-SQ .188X.188X.375 Price: $1.95
37 06602600 KEY-SQ .25 X 2.50 X .25 SAE Price: $5.45
38 07001703 BOLT, SHLDR .31-18 X .25 Price: $3.45
39 07001704 BALL SPRING PLUNGER, .500-13 Price: $8.95
40 07400124 SCR,TAP .312-18X.50 HWH TR ZCC This part replaces 07411500. Price: $1.45
41 08300533 SPRING, EXT Price: $13.45
42 05500934 BSHG-FLG 1.00X1.25X1.50X1.50 Price: $6.95
43 05707300 RG-RTNG-EXT 1.00X.078 Price: $2.95
44 05709200 RG-RTNG-EXT .625X.050 Price: $2.45
45 05700213 RG-RET-EXT 1.25 X .050 Price: $2.45
