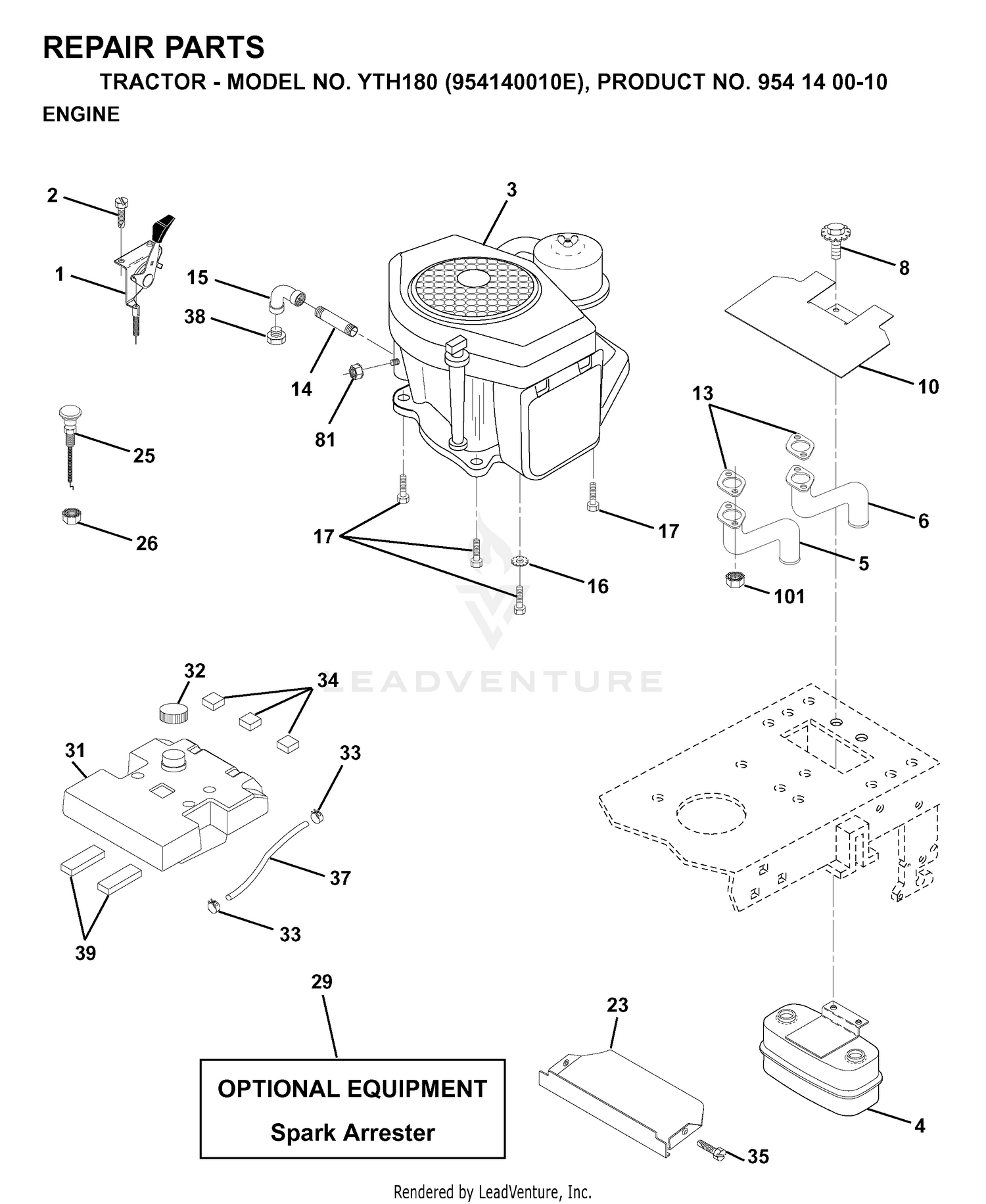

| Ref | Part Number | Description |
|---|
| 1 |
532170863 |
CONTROL,TH/CH FLAG This part replaces 532155274. Price: $27.99 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 6 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 7 |
532002751 |
CLIP T This part replaces 532124996. Price: $2.42 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 532150176. Price: $4.99 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 14 |
813280336 |
Nipple, Pipe 3/8 NPT x 4-1/2 Price: $2.42 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99 |
| 23 |
532159880 |
PROTECTOR Price: $7.99 |
| 25 |
532145996 |
CONTROL, CHOKE Price: $19.99 |
| 26 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532157103 |
TANK.FUEL(3.5.GAL) Price: $69.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 35 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 37 |
587044808 |
HOSE.1/4".LOW.PERM.FUEL.LN.8" This part replaces 532124923. Price: $5.99 |
| 39 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 40 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 81 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99 |
| 101 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
