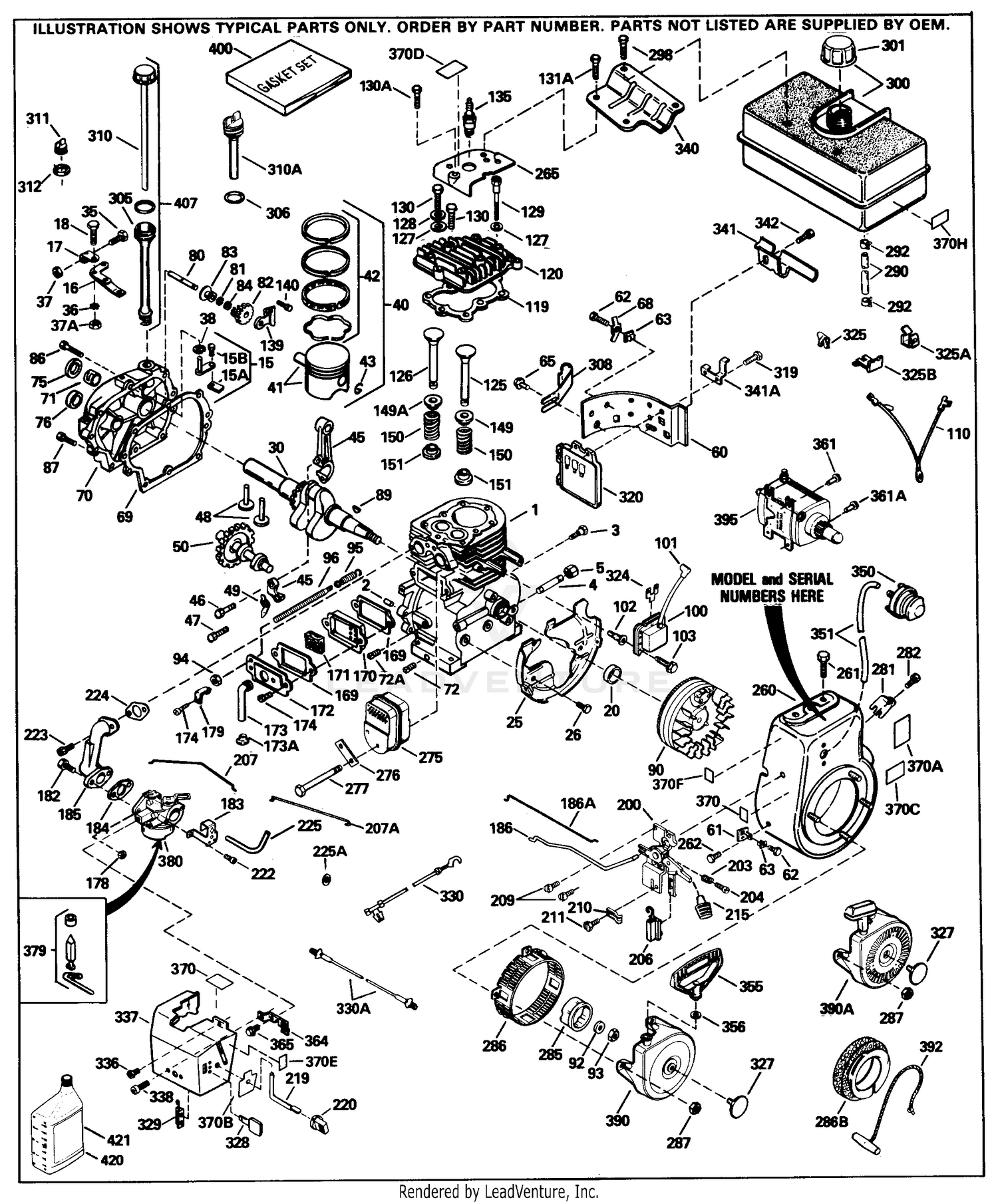

| Ref | Part Number | Description |
|---|
| 1 |
35385 |
CYLINDER Price: $222.77 |
| 2 |
27652 |
PIN Price: $1.58 |
| 15 |
30699C |
GOVERNOR ROD Price: $12.16 |
| 15A |
30700 |
GOV YOKE Price: $1.22 |
| 15B |
650494 |
SCREW Price: $1.20 |
| 16 |
33454A |
GOV LEVER This part replaces 33454. Price: $7.41 |
| 17 |
29916 |
CLAMP Price: $1.26 |
| 18 |
651018 |
SCREW This part replaces 650548. Price: $1.18 |
| 20 |
35319 |
OIL SEAL Price: $3.50 |
| 25 |
37853 |
BAFFLE This part replaces 36460. Price: $7.95 |
| 26 |
650561 |
SCREW Price: $1.25 |
| 30 |
35372A |
CRANKSHAFT Price: $120.88 |
| 35 |
29826 |
SCREW Price: $1.26 |
| 36 |
29918 |
WASHER Price: $1.26 |
| 37 |
29216 |
NUT Price: $1.22 |
| 37A |
30322 |
NUT Price: $1.22 |
| 38 |
29642 |
RET RING Price: $1.26 |
| 40 |
34554 |
PISTON ASSY 020 Price: Call Us |
| 40 |
40012 |
PISTON ASSY 010 This part replaces 34553. Price: $57.66 |
| 40 |
40049 |
PISTON ASSY STD This part replaces 34552. Price: $56.41 |
| 41 |
34331A |
PISTON & PIN 20 Price: Call Us |
| 41 |
40012 |
PISTON ASSY 010 This part replaces 34330A. Price: $57.66 |
| 41 |
40049 |
PISTON ASSY STD This part replaces 34329A. Price: $56.41 |
| 42 |
34333 |
RING SET 010 Price: $23.45 |
| 42 |
34334 |
RING SET 020 Price: $27.52 |
| 42 |
40049 |
PISTON ASSY STD This part replaces 34332. Price: $56.41 |
| 43 |
27888 |
RET RING Price: $1.26 |
| 45 |
36897A |
CONN ROD This part replaces 35373A. Price: $34.63 |
| 46 |
651063 |
SCREW This part replaces 650908. Price: $1.26 |
| 47 |
651033A |
SCREW This part replaces 650882. Price: $1.12 |
| 48 |
34034A |
VALVE LIFTER This part replaces 34034. Price: $7.41 |
| 49 |
35374 |
OIL DIPPER Price: $1.22 |
| 50 |
35375 |
CAMSHAFT Price: $72.17 |
| 60 |
33273A |
EXTENSION Price: $5.21 |
| 65 |
650128 |
SCREW Price: $3.60 |
| 69 |
37342 |
GASKET This part replaces 35262. Price: $8.45 |
| 70 |
38027 |
CYL COVER This part replaces 35376. Price: $102.68 |
| 71 |
35-377 |
GASKET (OBS) FUEL CAP Price: Call Us |
| 72 |
27642 |
PIPE PLUG Price: $1.26 |
| 75 |
35319 |
OIL SEAL Price: $3.50 |
| 80 |
37587 |
GOV SHAFT This part replaces 31845. Price: $1.26 |
| 81 |
651080 |
WASHER This part replaces 30590A. Price: $1.24 |
| 82 |
35378 |
GEAR Price: $2.62 |
| 83 |
30588A |
GOV SPOOL Price: $1.26 |
| 84 |
29193 |
RET RING Price: $1.26 |
| 86 |
650833 |
SCREW Price: $1.20 |
| 87 |
650832 |
SCREW Price: $1.14 |
| 89 |
32589 |
KEY Price: $1.05 |
| 90 |
611091 |
FLYWHEEL Price: $157.69 |
| 92 |
650880 |
WASHER Price: $1.20 |
| 93 |
650881 |
NUT Price: $1.20 |
| 100 |
35135B |
LAMINATION This part replaces 35135. Price: $49.95 |
| 102 |
651024 |
STUD This part replaces 650872. Price: $2.60 |
| 103 |
651007 |
SCREW This part replaces 650814. Price: $1.17 |
| 110 |
35187 |
GROUND WIRE Price: $4.00 |
| 110 |
35253 |
GROUND WIRE Price: $4.40 |
| 119 |
34923A |
GASKET This part replaces 34041A. Price: $5.63 |
| 120 |
34030B |
CYL HEAD This part replaces 34030A. Price: Call Us |
| 125 |
27878A |
EXH VALVE STD Price: $16.51 |
| 125 |
27880A |
EXH VALVE OS Price: $34.25 |
| 126 |
34035 |
INT VALVE ST Price: $10.91 |
| 126 |
34036 |
INTAKE VALVE OS Price: Call Us |
| 127 |
650691 |
WASHER Price: $1.25 |
| 128 |
730324 |
WASHER KIT This part replaces 650690. Price: $6.86 |
| 129 |
650727 |
SCREW Price: $2.60 |
| 130 |
650694A |
SCREW Price: $2.15 |
| 130A |
6021A |
SCREW Price: $1.26 |
| 131A |
650273 |
SCREW This part replaces 650713. Price: $1.25 |
| 139 |
33369 |
BRACKET Price: $6.00 |
| 140 |
650965 |
SCREW This part replaces 650836. Price: $1.22 |
| 149 |
27882 |
VALVE CAP Price: $1.26 |
| 149A |
27882 |
VALVE CAP Price: $1.26 |
| 150 |
27881 |
VALVE SPRING Price: $2.62 |
| 151 |
32581 |
VALVE CAP Price: $4.49 |
| 169 |
27896A |
GASKET Price: $1.00 |
| 170 |
28423 |
BREATHER Price: $9.29 |
| 171 |
28424 |
ELEMENT Price: $2.62 |
| 172 |
28425 |
VALVE COVER Price: $5.21 |
| 173 |
34696 |
TUBE Price: $3.89 |
| 173A |
32446 |
GROMMET Price: $1.26 |
| 178 |
29752 |
NUT Price: $1.26 |
| 182 |
30088A |
SCREW Price: $1.26 |
| 184 |
33263 |
GASKET Price: $1.00 |
| 185 |
34707A |
INTAKE PIPE This part replaces 34707. Price: $34.95 |
| 186A |
34667 |
GOV LINK Price: $1.26 |
| 200 |
34664 |
CONTROL ASSY Price: $33.37 |
| 203 |
31342 |
COMP SPRING Price: $3.95 |
| 204 |
651029 |
SCREW This part replaces 650549. Price: $1.22 |
| 206 |
610973 |
TERMINAL Price: $2.60 |
| 207 |
33878 |
GOV LINK Price: $4.95 |
| 209 |
650821 |
SCREW Price: $1.20 |
| 210 |
27793 |
CLIP Price: $1.26 |
| 211 |
28942 |
SCREW Price: $0.88 |
| 223 |
650378 |
SCREW Price: $1.25 |
| 224 |
27915A |
GASKET Price: $3.95 |
| 260 |
33375E |
BLOWER HSG This part replaces 33375D. Price: $74.17 |
| 261 |
650788 |
SCREW Price: $1.25 |
| 262 |
29747C |
SCREW/LOCKWASHER ASSEMBLY This part replaces 29747B. Price: $1.26 |
| 265 |
33272D |
COVER This part replaces 33272B. Price: $5.21 |
| 281 |
33013 |
COVER Price: $2.62 |
| 282 |
650760 |
SCREW Price: $1.17 |
| 285 |
37966 |
STARTER CUP This part replaces 35287. Price: $7.34 |
| 286 |
35446 |
SCREEN Price: $5.21 |
| 287 |
29752 |
NUT Price: $1.26 |
| 290 |
30705 |
FUEL LINE Price: $11.47 |
| 290 |
30962 |
FUEL LINE Price: $22.04 |
| 292 |
26460 |
CLAMP Price: $1.19 |
| 298 |
650665 |
SCREW Price: $1.25 |
| 300 |
34156A |
FUEL TANK Price: $38.95 |
| 301 |
37845 |
FUEL CAP This part replaces 35355. Price: $6.33 |
| 305 |
35554 |
FILLER TUBE Price: $14.00 |
| 306 |
35499 |
O RING Price: $0.88 |
| 308 |
35540 |
CLIP Price: $1.22 |
| 310 |
36205 |
DIPSTICK This part replaces 35555. Price: $7.45 |
| 325 |
34246 |
CLIP Price: $1.22 |
| 325B |
29443 |
CLIP Price: $1.26 |
| 327 |
35392 |
STARTER PLUG Price: $1.22 |
| 329 |
610973 |
TERMINAL Price: $2.60 |
| 330 |
34069 |
HARNESS Price: Call Us |
| 336 |
650765 |
SCREW Price: $0.87 |
| 340 |
34154 |
TANK BRACKET Price: $9.22 |
| 342 |
650561 |
SCREW Price: $1.25 |
| 370 |
35274 |
DECAL Price: $1.00 |
| 370 |
36261 |
DECAL This part replaces 34346. Price: Call Us |
| 370B |
34387 |
DECAL Price: $1.00 |
| 370B |
34704 |
DECAL Price: $3.80 |
| 370J |
34870 |
DECAL Price: Call Us |
| 379 |
631725 |
INLET NEEDLE Price: Call Us |
| 380 |
640277 |
CARBURETOR This part replaces 632176A. Price: $78.00 |
| 390A |
590685B |
STARTER This part replaces 590685. Price: $48.62 |
| 394 |
35791 |
REPAIR KIT Price: $51.21 |
| 400 |
33279L |
GASKET SET This part replaces 33279G. Price: $31.61 |
| 407 |
34011B |
DIPSTICK & TUBE This part replaces 35836. Price: $10.95 |
| 420 |
730225A |
OIL SAE 30 This part replaces 730225. Price: $3.38 |
