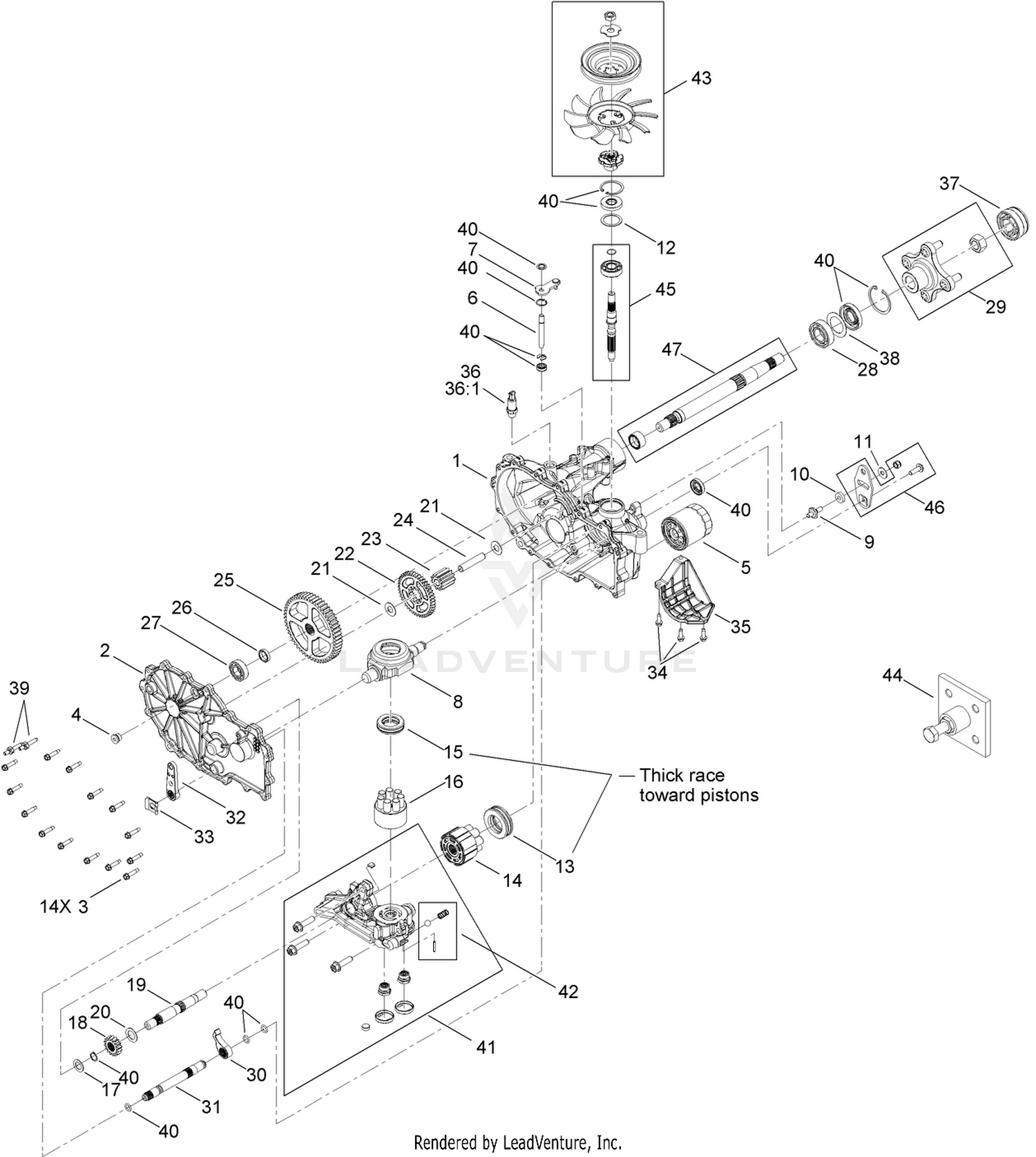

| Ref | Part Number | Description |
|---|
| 1 |
121-5748 |
MAIN HOUSING KIT Price: $301.61 |
| 2 |
114-8472 |
LH SIDE COVER KIT Price: $170.08 |
| 3 |
117-5359 |
SCREW-HHF Price: $2.06 |
| 4 |
104-2189 |
PLUG-THREAD, STRAIGHT Price: $24.99 |
| 5 |
109-3321 |
ELEMENT-OIL FILTER, HYD Price: $38.30 |
| 6 |
114-1685 |
ROD-BYPASS Price: $22.45 |
| 7 |
107-2490 |
ARM-BYPASS Price: $38.02 |
| 8 |
104-5304 |
SWASHPLATE-TRUNNION Price: $129.21 |
| 9 |
104-2116 |
STUD Price: $25.96 |
| 10 |
112-9853 |
PUCK-FRICTION Price: $5.18 |
| 11 |
114-8491 |
WASHER Price: $3.07 |
| 12 |
104-5308 |
SPACER Price: $7.99 |
| 13 |
112-4154 |
BEARING-THRUST Price: $67.49 |
| 14 |
139-4074 |
CYLINDER BLOCK ASM KIT This part replaces 114-1689. Price: $157.99 |
| 15 |
94-6922 |
BEARING-THRUST Price: $59.99 |
| 16 |
110-8561 |
PUMP BLOCK ASM Price: $225.13 |
| 17 |
104-5339 |
WASHER-FLAT Price: $4.43 |
| 18 |
121-5749 |
GEAR-16T Price: $9.08 |
| 19 |
114-1691 |
SHAFT-MOTOR Price: $112.86 |
| 20 |
104-5360 |
WASHER Price: $5.18 |
| 21 |
94-1933 |
WASHER Price: $3.86 |
| 22 |
125-0000 |
GEAR-43T Price: $41.05 |
| 23 |
114-1693 |
GEAR-11T Price: $18.22 |
| 24 |
104-5329 |
PIN-JACKSHAFT Price: $74.18 |
| 25 |
114-1694 |
GEAR-54T Price: $90.26 |
| 26 |
120-7975 |
SPACER Price: $3.89 |
| 27 |
114-1696 |
BEARING-BALL Price: $35.55 |
| 28 |
130-8477 |
BEARING-BALL This part replaces 120-7976. Price: $16.31 |
| 29 |
109-5939 |
HUB KIT Price: $68.05 |
| 30 |
114-1697 |
PAWL-BRAKE Price: $12.32 |
| 31 |
114-1698 |
SHAFT-BRAKE, INBOARD Price: $92.65 |
| 32 |
114-1699 |
HANDLE-BRAKE Price: $13.47 |
| 33 |
114-8450 |
CLIP-RETAINING Price: $3.32 |
| 34 |
104-2120 |
SCREW Price: $5.27 |
| 35 |
120-7979 |
GUARD-FILTER, LH Price: $21.90 |
| 36 |
109-3278 |
ADAPTER-STRAIGHT Price: $80.60 |
| 37 |
115-5057 |
COVER-NUT, AXLE Price: $12.32 |
| 38 |
121-5745 |
SPACER Price: $6.60 |
| 39 |
125-0035 |
STUD Price: $11.12 |
| 40 |
140-8351 |
SEAL KIT This part replaces 109-3537. Price: $58.29 |
| 41 |
125-0036 |
CENTER SECTION KIT Price: $228.11 |
| 42 |
114-8464 |
CHARGE RELIEF KIT Price: $13.67 |
| 43 |
135-7349 |
FAN AND PULLEY KIT This part replaces 121-5746. Price: $56.92 |
| 44 |
130-8482 |
HUB PULLER KIT This part replaces 114-8467. Price: $167.29 |
| 45 |
114-8468 |
INPUT SHAFT KIT Price: $114.03 |
| 46 |
117-5362 |
CONTROL ARM KIT Price: $19.59 |
