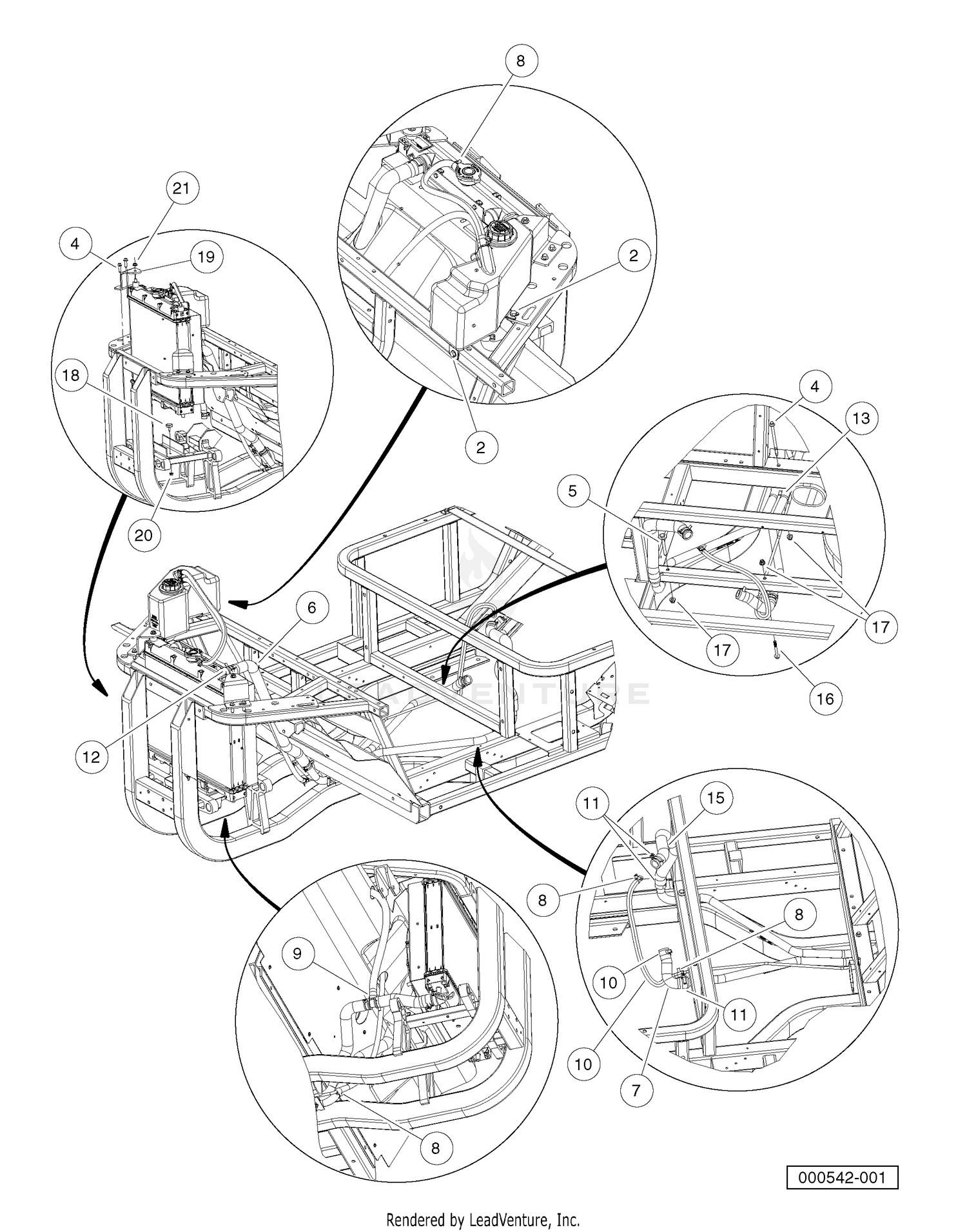

| Ref | Part Number | Description |
|---|
| 2 |
603000220 |
SCREW Price: $2.99 |
| 4 |
603000869 |
SCREW-M8 X 1.25 30, TRI, HX F Price: $1.99 |
| 6 |
603000927 |
HOSE, COOLANT UPPER RAD Price: $64.99 |
| 7 |
603000928 |
HOSE, COOLANT LOWER ENG Price: $27.99 |
| 8 |
603000970 |
CLAMP, HOSE, CTB 15MM Price: $4.99 |
| 10 |
603000972 |
CLAMP, HOSE, CTB 30MM Price: $6.99 |
| 11 |
603000973 |
CLAMP, HOSE, CTB 35MM Price: $6.99 |
| 12 |
603000974 |
CLAMP, HOSE, CTB 38MM Price: $7.99 |
| 13 |
603001003 |
CLAMP, BAR Price: $7.99 |
| 14 |
603001016 |
HOSE, VENT TUBE TO ENG, COOLNT Price: $19.99 |
| 15 |
603001155 |
HOSE, COOLANT, RETURN, ENGINE Price: $44.99 |
| 16 |
603001306 |
BOLT FLG, M8X1.25X65 Price: $4.99 |
| 17 |
603001308 |
LOCK NUT, FLG M8 X 1.25 NYLON Price: $3.99 |
| 21 |
603000512 |
NUT, M8-1.25 FLANGED HEX Price: $3.99 |
