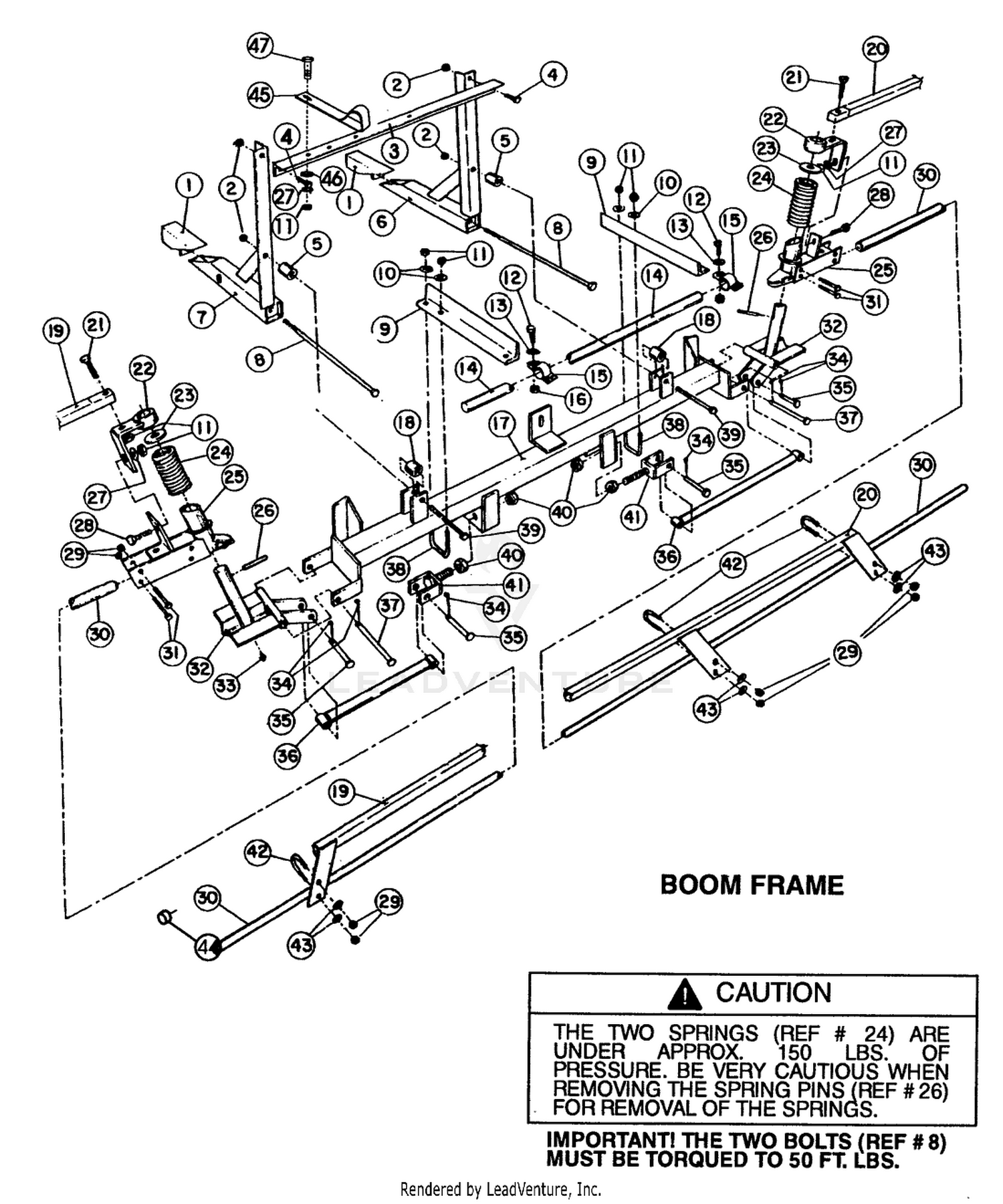

| Ref | Part Number | Description |
|---|
| 1 |
42223-03 |
WEDGE TUBE ASM This part replaces 42223. Price: $99.98 |
| 2 |
32153-5 |
NUT-HEX Price: $1.59 |
| 3 |
42225-03 |
ANGLE-SUPPORT, CROSS This part replaces 42225. Price: $59.95 |
| 4 |
325-5 |
SCREW-HH Price: $1.20 |
| 5 |
42258 |
SPACER-TUBULAR, 1-1/4" Price: $32.98 |
| 6 |
42222-03 |
LH BOOM MOUNT ASM This part replaces 42222. Price: $368.05 |
| 7 |
42217-03 |
RH BOOM MOUNT ASM This part replaces 42217. Price: $209.28 |
| 8 |
42199 |
BOLT Price: $36.91 |
| 9 |
106-5085-03 |
PLATE-BOOM, CENTER This part replaces 42234. Price: $19.41 |
| 10 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 11 |
3217-6 |
NUT-HEX Price: $1.19 |
| 12 |
323-6 |
SCREW-HH Price: $0.66 |
| 13 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 14 |
40493-03 |
PIPE-BOOM, CENTER This part replaces 40493. Price: $70.39 |
| 15 |
40494 |
CLAMP ASM Price: $26.94 |
| 16 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 17 |
42227-03 |
MAIN FRAME TUBE ASM This part replaces 42227. Price: $672.98 |
| 18 |
42257 |
SPACER-TUBULAR Price: $11.54 |
| 19 |
42711-03 |
LH BOOM SUPPORT ASM This part replaces 42711. Price: $244.45 |
| 20 |
42710-03 |
RH BOOM SUPPORT ASM This part replaces 42710. Price: $244.45 |
| 21 |
322-7 |
SCREW-HH Price: $0.89 |
| 22 |
42707-03 |
SUPPORT BRACKET ASM This part replaces 42707. Price: $88.27 |
| 27 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 28 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 29 |
32153-4 |
NUT-HEX, SIDE DEFORM Price: $0.75 |
| 30 |
42282 |
EXTENSION BOOM PIPE ASSY Price: $152.55 |
| 31 |
321-10 |
SCREW-HH Price: $1.29 |
| 34 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 35 |
42195 |
PIN-CLEVIS Price: $6.11 |
| 36 |
42240-03 |
STRUT ASM This part replaces 42240. Price: $54.18 |
| 37 |
283-83 |
PIN-CLEVIS This part replaces 42194. Price: $9.52 |
| 38 |
301950 |
U-BOLT-SQUARE Price: $9.77 |
| 39 |
325-17 |
SCREW-HH Price: $2.90 |
| 40 |
3217-11 |
NUT-HEX Price: $0.95 |
| 41 |
42237 |
ADJUSTABLE CLEVIS ASM Price: $69.25 |
| 42 |
92-0010 |
U-BOLT Price: $10.65 |
| 43 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 44 |
92-8420 |
CAP-BOOM Price: $1.92 |
| 45 |
2412-104 |
CLAMP-R Price: $2.37 |
| 46 |
3253-4 |
WASHER-LOCK Price: $0.25 |
