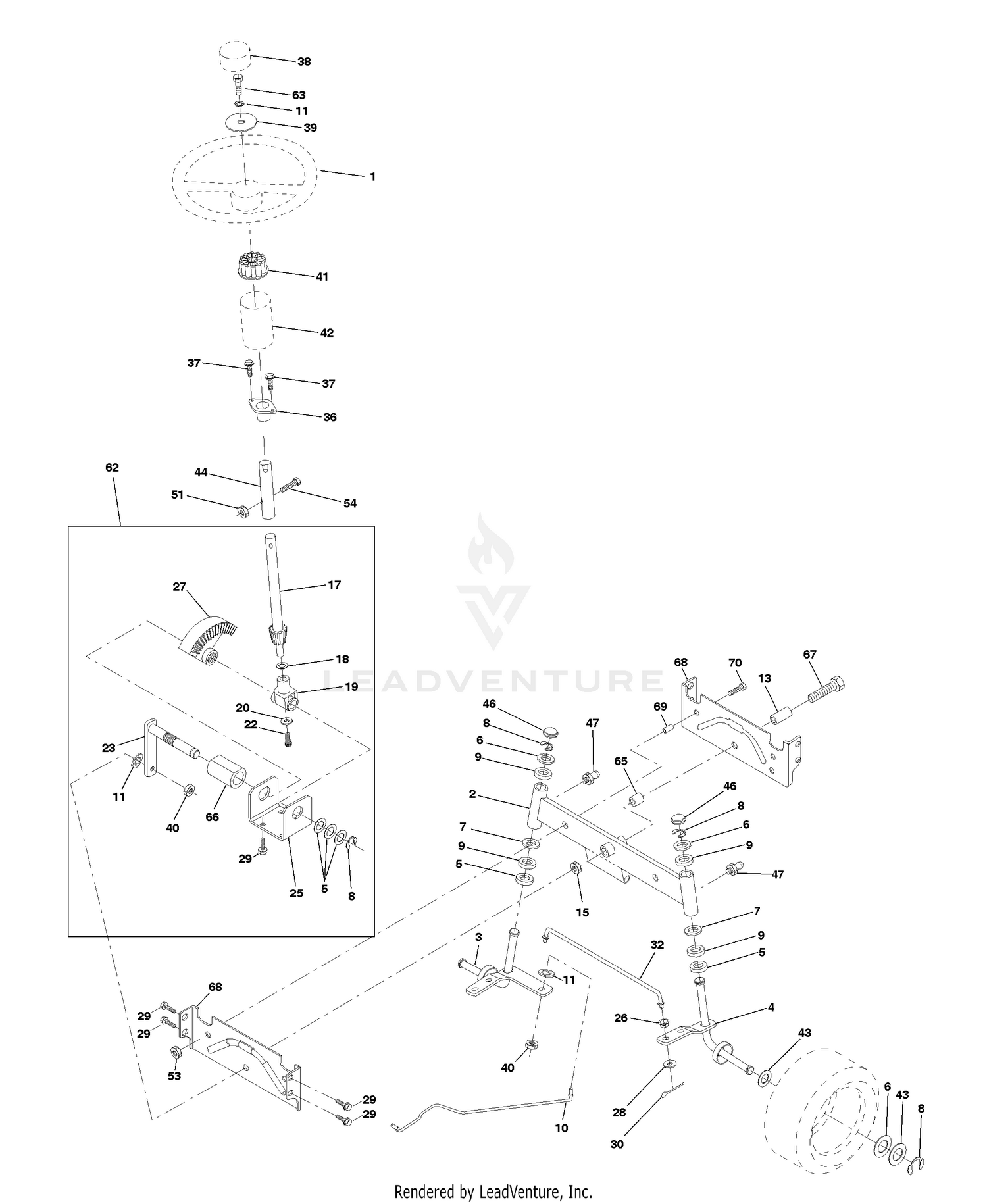

| Ref | Part Number | Description |
|---|
| 1 |
532124415 |
STEERING WHEEL Price: $58.99 |
| 2 |
531171101 |
SERVICE KIT AXLE HALF ASM This part replaces 532154427. Price: $59.99 |
| 3 |
532156483 |
SPINDLE ASM LH Price: $22.99 |
| 4 |
532157473 |
SPINDLE ASM RH Price: $22.99 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
819272016 |
WASHER Price: $3.99 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 010 |
112-8415 |
PISTON ASM This part replaces 98-9470. Price: $456.30 |
| 010 |
115-4127 |
PISTON KIT This part replaces 98-9469. Price: $518.71 |
| 10 |
532156438 |
DRAGLINK-STAMPED Price: $79.99 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 13 |
532154779 |
BEARING AXLE Price: $8.99 |
| 15 |
583612401 |
LOCKNUT M This part replaces 873901000. Price: $2.99 |
| 17 |
531166901 |
SERVICE KIT SHAFT ASM ST This part replaces 532156546. Price: $42.99 |
| 18 |
532057079 |
THRUST WASHER Price: $1.99 |
| 19 |
532160395 |
STEERING SHAFT SUPPORT This part replaces 532124035. Price: $8.99 |
| 020 |
98-9618 |
PISTON RING ASM (STD) Price: $102.14 |
| 020 |
98-9619 |
PISTON RING ASM (0.5MM) Price: $96.35 |
| 20 |
596582301 |
Washers This part replaces 532126684. Price: $2.99 |
| 22 |
532165857 |
SCREW.HX.WSH.HD This part replaces 871200410. Price: $3.99 |
| 23 |
532156365 |
PITMAN SHAFT ASSY This part replaces 532127501. Price: $29.99 |
| 25 |
532154406 |
BRACKET STEERING Price: $6.99 |
| 26 |
532126847 |
BUSHING.DRAGLINK (2 2) This part replaces 543126847. Price: $4.99 |
| 27 |
532136874 |
GEAR.SECTOR Price: $69.99 |
| 28 |
819131414 |
WASHER This part replaces 819131416. Price: $3.99 |
| 29 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 030 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 30 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 32 |
532192757 |
ROD.TIE.WIRE.FORM This part replaces 532130465. Price: $29.99 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532124416 |
INSERT,STR WHEEL Price: $7.89 |
| 39 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133808. Price: $4.99 |
| 040 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 40 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 41 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532100711. Price: $7.99 |
| 42 |
532145054 |
STEERING BOOT, GRAY This part replaces 532155092. Price: $11.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532153721 |
SHAFT EXT STEERING This part replaces 532153720. Price: $54.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 47 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532124836. Price: $4.99 |
| 050 |
117-7586 |
CONNECTING ROD ASM This part replaces 98-9516. Price: $547.99 |
| 51 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 53 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 54 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 060 |
115-3014 |
BUSHING-PIN, PISTON This part replaces 98-9515. Price: $19.81 |
| 62 |
584371701 |
KIT.STEER.ASM.P/L This part replaces 532156594. Price: $119.99 |
| 63 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 65 |
531152101 |
SERVICE KIT SPACER AXLE SPACER This part replaces 532154780. Price: $17.99 |
| 66 |
532154404 |
BEARING ARM Price: $3.99 |
| 67 |
874781044 |
Bolt, Fin Hex 5/8-11 UNC x 2-3/4 Price: $3.99 |
| 68 |
532154429 |
AXLE, BRACE Price: $11.99 |
| 69 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 070 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 080 |
117-7588 |
METAL-CRANKPIN (-0.4MM) This part replaces 98-9520. Price: $49.06 |
| 080 |
98-9519 |
BEARING-ROD (-0.2MM) Price: $43.73 |
| 080 |
98-9553 |
BEARING-ROD (STD) This part replaces 98-9518. Price: $52.92 |
| 090 |
98-9642 |
CRANKSHAFT ASM Price: $4,332.74 |
| 100 |
110-3729 |
BALL This part replaces 98-7473. Price: $0.69 |
| 110 |
98-9532 |
GEAR-CRANKSHAFT Price: $169.43 |
| 120 |
98-9666 |
KEY Price: $3.58 |
| 130 |
98-9542 |
GEAR-DRIVE, OIL PUMP Price: $89.04 |
| 140 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 150 |
98-9521 |
COLLAR-CRANKSHAFT Price: $84.21 |
| 160 |
105-3783 |
O-RING Price: $6.33 |
| 170 |
112-7005 |
BEARING-MAIN (STD) This part replaces 98-9523. Price: $66.99 |
| 170 |
98-9528 |
BEARING-MAIN (-0.2MM) Price: $15.04 |
| 170 |
98-9529 |
BEARING-MAIN (0.4MM) Price: $40.04 |
| 180 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) This part replaces 98-9530. Price: $60.46 |
| 180 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 180 |
98-9531 |
BEARING-MAIN (0.4MM) Price: $39.97 |
| 190 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 98-9525. Price: $86.06 |
| 190 |
98-9526 |
BEARING-MAIN (0.2MM) Price: $64.36 |
| 190 |
98-9527 |
BEARING-MAIN (0.4MM) Price: $63.74 |
| 200 |
127-0416 |
METAL-SIDE (+0.2MM) This part replaces 98-9414. Price: $21.04 |
| 200 |
98-9413 |
BEARING-THRUST (STD) Price: $16.90 |
| 200 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 210 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 98-9689. Price: $18.42 |
| 210 |
127-0438 |
METAL-SIDE (+0.40MM) This part replaces 98-9690. Price: $12.65 |
