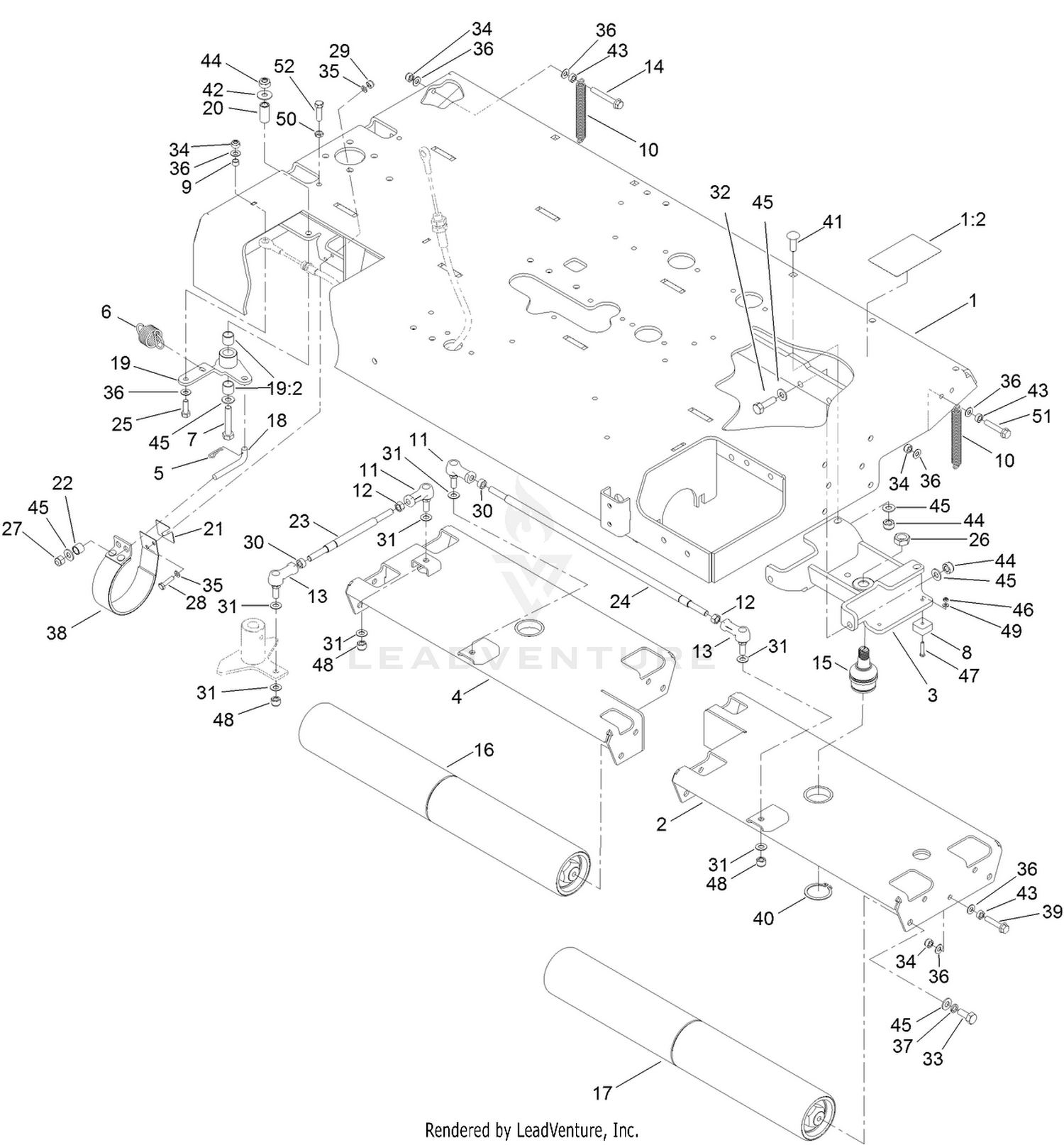

| Ref | Part Number | Description |
|---|
| 1 |
138-9104 |
ROLLER CHASSIS W/DECAL Price: $901.66 |
| 2 |
132-4756-01 |
HEAD-STEERING, REAR Price: $176.03 |
| 3 |
132-4764-01 |
SUPPORT-ROLLER Price: $130.54 |
| 4 |
132-7082-01 |
HEAD-STEERING, FRONT Price: $176.03 |
| 5 |
1-806003 |
PIN-COTTER Price: $1.39 |
| 6 |
13-3090 |
SPRING-FINGER Price: $9.71 |
| 7 |
57-6360 |
SCREW-CLUTCH Price: $4.29 |
| 8 |
94-1392 |
PAD-RUBBER Price: $7.41 |
| 9 |
108-7983 |
BUSHING-CABLE Price: $5.97 |
| 10 |
136-6163 |
SPRING Price: $4.39 |
| 11 |
132-9263 |
BALL JOINT Price: $12.50 |
| 12 |
111-5855 |
NUT-HEX, LH Price: $1.27 |
| 13 |
132-9264 |
JOINT-BALL Price: $12.50 |
| 14 |
33104-060 |
SCREW-HHF Price: $1.02 |
| 15 |
121-3605 |
BALL JOINT Price: $81.43 |
| 16 |
140-5545 |
COMPLETE LONG STEERING ROLLER ASM This part replaces 127-7958. Price: $846.84 |
| 17 |
140-5546 |
COMPLETE SHORT STEERING ROLLER ASM This part replaces 127-7963. Price: $846.84 |
| 18 |
131-1584 |
ROD-BRAKE Price: $14.41 |
| 19 |
136-6249 |
BRAKE PIVOT ASM Price: $67.39 |
| 20 |
131-6350 |
BUSHING-PIVOT Price: $11.63 |
| 21 |
131-6353 |
SHIM Price: $2.39 |
| 22 |
131-6367 |
SPACER Price: $4.90 |
| 23 |
132-7085 |
ROD-PIVOT, STEERING Price: $19.12 |
| 24 |
132-7087 |
ROD-PIVOT, STEERING Price: $30.91 |
| 25 |
03162 |
STEEL BOLT Price: $1.39 |
| 26 |
3220-6 |
NUT-JAM Price: $1.25 |
| 27 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 28 |
09044 |
SETSCREW UNF 1/4 X 1 S QUAL Price: $1.40 |
| 29 |
09201 |
NUT UNF 1/4 NYL INS T TYPE Price: $1.40 |
| 30 |
09213 |
NUT Price: Call Us |
| 31 |
09271 |
WASHER 3/8 X 3/4 X 18G PLAIN Price: $1.40 |
| 32 |
09394 |
BOLT M10 X 35 Price: $1.40 |
| 33 |
09395 |
SETSCREW M10 X 25 ZN & PASS Price: $1.40 |
| 34 |
09441 |
NUT M8 NYL INSERT T TYPE Price: $1.39 |
| 35 |
09472 |
WASHER-PLAIN Price: $1.25 |
| 36 |
09475 |
WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40 |
| 37 |
09480 |
WASHER M10 SC SPRING Price: $1.36 |
| 38 |
9593 |
BRAKE BAND ASM Price: $148.99 |
| 39 |
33104-040 |
SCREW-HHF Price: $1.36 |
| 40 |
32151-104 |
RING-RETAINING, EXTERNAL Price: $4.85 |
| 41 |
33125-030 |
SCREW-CARR Price: $1.56 |
| 42 |
HY03355 |
WASHER 3/8 X 7/8 X 15G PLATED Price: $1.49 |
| 43 |
ZNH1H000U |
HEX.NUT M8 Price: $1.40 |
| 44 |
ZNN1J000U |
HEX.NUT NYLOC M10 Price: $1.42 |
| 45 |
ZWQ1J000U |
PLAIN HEAVY WASHER M10 Price: $1.38 |
| 46 |
09746 |
NUT M5 LOCK Price: $1.42 |
| 47 |
09806 |
SETSCREW M5*25 Price: $1.42 |
| 48 |
09216 |
NUT-HEX, NI Price: $1.40 |
| 49 |
ZWP1E000U |
WASHER - M5 PLAIN Price: $1.42 |
| 50 |
117-4059 |
NUT-HEX Price: $1.84 |
| 51 |
33104-045 |
SCREW-HHF Price: $1.56 |
