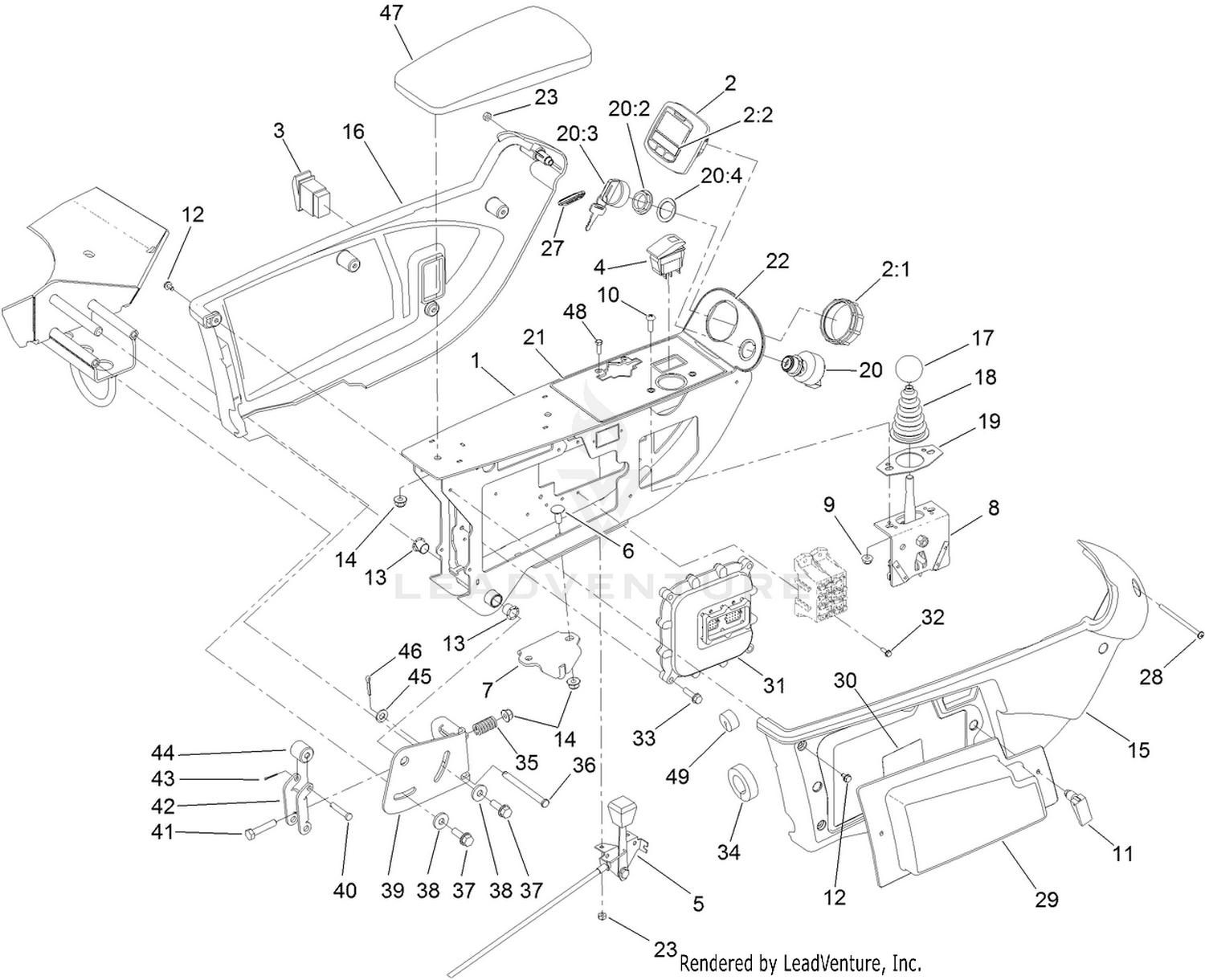

| Ref | Part Number | Description |
|---|
| 1 |
120-3801-03 |
FRAME-ARM, CONTROL Price: $445.78 |
| 2 |
120-6310 |
LCD DISPLAY ASM Price: $584.72 |
| 3 |
95-8999 |
SWITCH Price: $42.14 |
| 4 |
105-4232 |
SWITCH Price: $88.64 |
| 5 |
133-2929 |
CONTROL-THROTTLE This part replaces 114-8886. Price: $69.01 |
| 6 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 7 |
125-1938 |
LATCH This part replaces 110-5340. Price: $27.46 |
| 8 |
120-5280 |
BRACKET-JOYSTICK Price: $203.76 |
| 9 |
104-7201 |
NUT-HF Price: $0.69 |
| 10 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 11 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 12 |
104-2065 |
SCREW-HWH Price: $0.28 |
| 13 |
256-257 |
BUSHING-NYLINER Price: $3.19 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
108-7605 |
COVER-RH Price: $55.56 |
| 16 |
108-7604 |
COVER-LH Price: $55.56 |
| 17 |
233-42 |
KNOB Price: $12.88 |
| 18 |
93-5961 |
BOOT-LEVER Price: $56.35 |
| 19 |
112-9181 |
PLATE-BOOT Price: $4.90 |
| 20 |
161-7350 |
IGNITION SWITCH ASM This part replaces 106-5269. Price: $56.32 |
| 21 |
121-5644 |
DECAL-CONTROL PANEL Price: $30.69 |
| 22 |
120-4158 |
DECAL-CONSOLE, UPPER Price: $23.98 |
| 23 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 27 |
99-8970 |
KEY-LATCH, HOOD Price: $15.13 |
| 28 |
3250-22 |
SCREW-PPH Price: $4.09 |
| 29 |
114-0446 |
PANEL-ACCESS Price: $18.13 |
| 30 |
117-0169 |
DECAL-FUSES Price: $17.49 |
| 31 |
114-3321 |
CONTROLLER-TEC Price: $1,515.96 |
| 32 |
32144-87 |
SCREW-HWHTF Price: $0.49 |
| 33 |
32144-86 |
SCREW-HWHTF Price: $1.29 |
| 34 |
110-8912 |
SEAL-FOAM Price: $2.23 |
| 35 |
110-5331 |
SPRING-COMPRESSION Price: $22.18 |
| 36 |
283-88 |
PIN-CLEVIS Price: $5.77 |
| 37 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 38 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 39 |
110-5313-03 |
BRACKET-RETAINER Price: $35.01 |
| 40 |
283-73 |
PIN-CLEVIS Price: $0.95 |
| 41 |
322-7 |
SCREW-HH Price: $0.89 |
| 42 |
110-5314 |
LATCH Price: $22.89 |
| 43 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 44 |
110-8856 |
SPACER Price: $10.25 |
| 45 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 46 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 47 |
108-7602 |
REST-ARM Price: $158.43 |
| 48 |
3290-134 |
SCREW Price: $0.27 |
