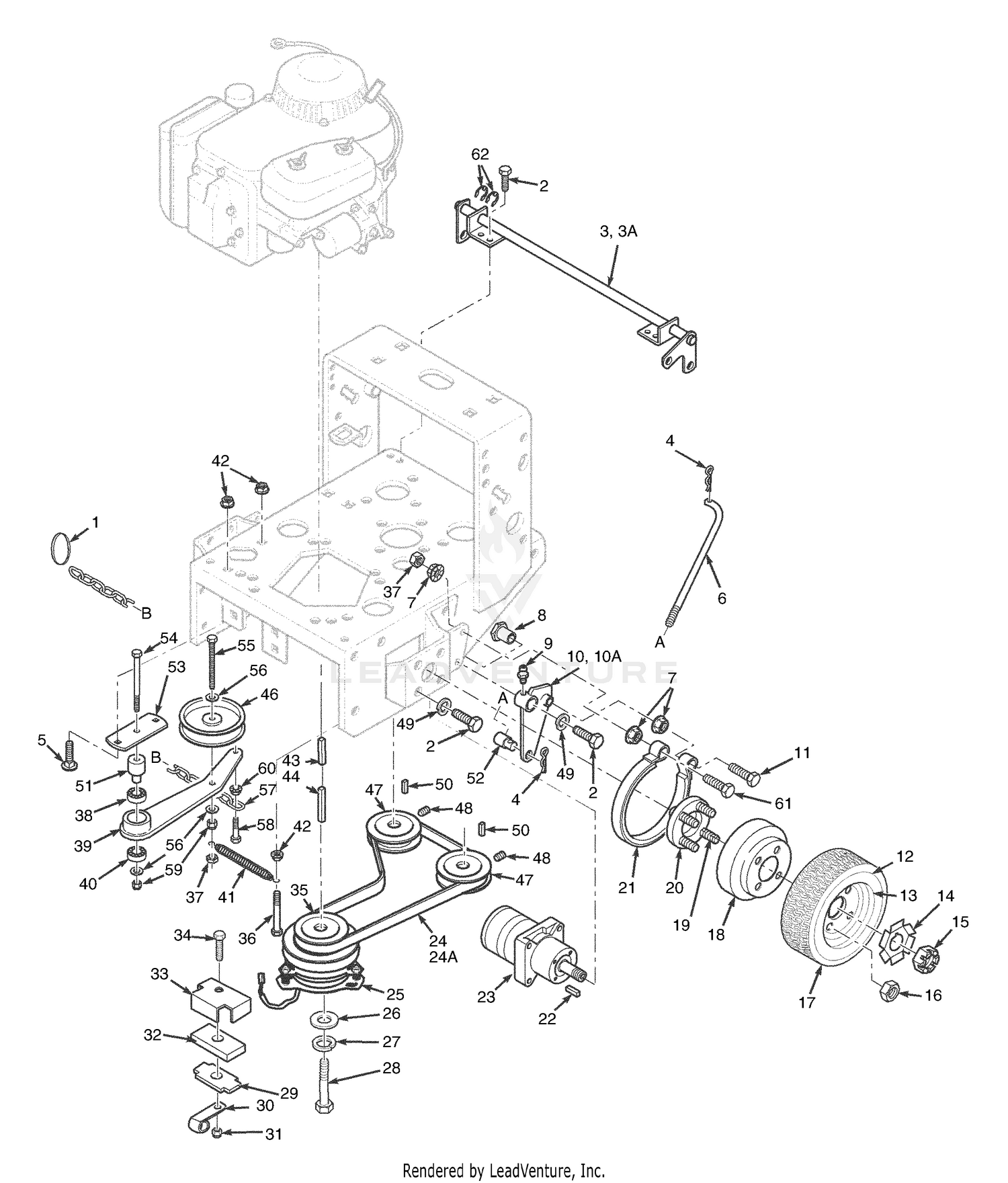

| Ref | Part Number | Description |
|---|
| 1 |
481876 |
Ring, Split Price: Call Us |
| 2 |
04001-19 |
Bolt, 3/8-16 x 1" Hex Head Price: Call Us |
| 3 |
45842 |
Brake Shaft Assembly (16" Small Frame) Price: Call Us |
| 4 |
04062-01 |
Hair Pin Cotter, .094 x 1.62 Price: Call Us |
| 5 |
04003-12 |
Carriage Bolt, 5/16-18 x 3/4" Price: Call Us |
| 6 |
44126 |
Rod, Brake Lower Price: Call Us |
| 7 |
04019-04 |
Nut, 3/8-16 Serr. Flange Price: Call Us |
| 8 |
43415 |
Bushing, Brake Price: Call Us |
| 9 |
48114-05 |
Grease Fitting Price: Call Us |
| 10 |
45860 |
Brake Actuator Wlmt., LH Price: Call Us |
| 10A |
45861 |
Brake Actuator Wlmt., RH Price: Call Us |
| 11 |
04001-46 |
Bolt, 3/8-16 x 2-1/4" Price: Call Us |
| 12 |
481871 |
Tire, 18 x 6.50, 4 ply Price: Call Us |
| 13 |
481890 |
Rim Assy Price: Call Us |
| 14 |
422214 |
Lock Washer, Wheel Motor Price: Call Us |
| 15 |
04027-01 |
Hex Castle Nut, 3/4-16 UNF Price: Call Us |
| 16 |
04028-02 |
Nut, Lug Price: Call Us |
| 18 |
422215 |
Brake Drum Price: Call Us |
| 20 |
46928 |
Hub, Wheel Price: Call Us |
| 21 |
481470 |
Brake Band, 7.5" Price: Call Us |
| 22 |
04063-07 |
Key, 3/16" X 3/4" Woodruff Price: Call Us |
| 23 |
481416 |
Wheel Motor Price: Call Us |
| 24 |
481837 |
Belt, Pump Drive (16" Frame) Price: Call Us |
| 25 |
461397 |
Electric Clutch Price: Call Us |
| 26 |
04041-28 |
Flat Washer .469 x 1.75 x .25 Price: Call Us |
| 27 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 28 |
04102-05 |
Bolt, Hex Head 7/16-20 x 2-3/4” w/Patch, (Kawasaki FX & FT, Yamaha MX) Price: Call Us |
| 29 |
422534 |
Plate, Backing Price: Call Us |
| 30 |
48030-09 |
Clamp Price: Call Us |
| 31 |
04021-10 |
Nut, 5/16-18 Elastic Stop Price: Call Us |
| 32 |
481716 |
Rubber Pad, Clutch Stop Price: Call Us |
| 33 |
422533 |
Retainer, Clutch Stop Price: Call Us |
| 34 |
04001-12 |
Hex Head Bolt, 5/16-18 x 1-3/4" Price: Call Us |
| 35 |
482754 |
Pulley, Pump Drive Engine This part replaces 481934. Price: Call Us |
| 36 |
04001-13 |
Hex Head Bolt, 5/16-18 x 2-3/4" Price: Call Us |
| 37 |
04021-05 |
Nut, 3/8-16 Center Lock Price: Call Us |
| 38 |
48224 |
Ball Bearings Price: Call Us |
| 40 |
48224 |
Ball Bearings Price: Call Us |
| 41 |
483526 |
Spring, Pump Belt Idler This part replaces 481835. Price: Call Us |
| 42 |
04019-03 |
Nut, 5/16-18 Serr. Flange Price: Call Us |
| 43 |
04063-20 |
Key, 1/4" x 1/4" x 1" Clutch Mtg. Price: Call Us |
| 44 |
04063-24 |
Key, 1/4" x 1/4" x 2-3/4" Pulley Mtg. Price: Call Us |
| 45 |
04041-07 |
Flat Washer, 3/8" Price: Call Us |
| 46 |
483213 |
Pulley, Idler 4.5" This part replaces 482306. Price: Call Us |
| 47 |
482751 |
Pulley, Pump Shaft This part replaces 48586. Price: Call Us |
| 48 |
04012-04 |
Setscrew, 5/16-18 x 3/8" Price: Call Us |
| 49 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 50 |
04063-14 |
Key, 5.0 x 5.0 x 25mm Price: Call Us |
| 51 |
43504 |
Pivot, Idler (Long) Price: Call Us |
| 52 |
43032 |
Swivel Joint Price: Call Us |
| 53 |
422713 |
Base, Idler Pivot Price: Call Us |
| 54 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" Price: Call Us |
| 55 |
04001-161 |
Bolt, Hex Head 3/8-16 x 2-3/4" Price: Call Us |
| 56 |
04043-04 |
Flatwasher 3/8" Price: Call Us |
| 57 |
481873 |
Chain Price: Call Us |
| 58 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 59 |
04021-09 |
Nut, Hex Elastic Stop 3/8-16 Price: Call Us |
| 60 |
04019-02 |
Nut, Serrated Flange 1/4-20 Price: Call Us |
| 61 |
04001-151 |
Bolt, Hex Head 3/8-16 x 2-1/4" Price: Call Us |
