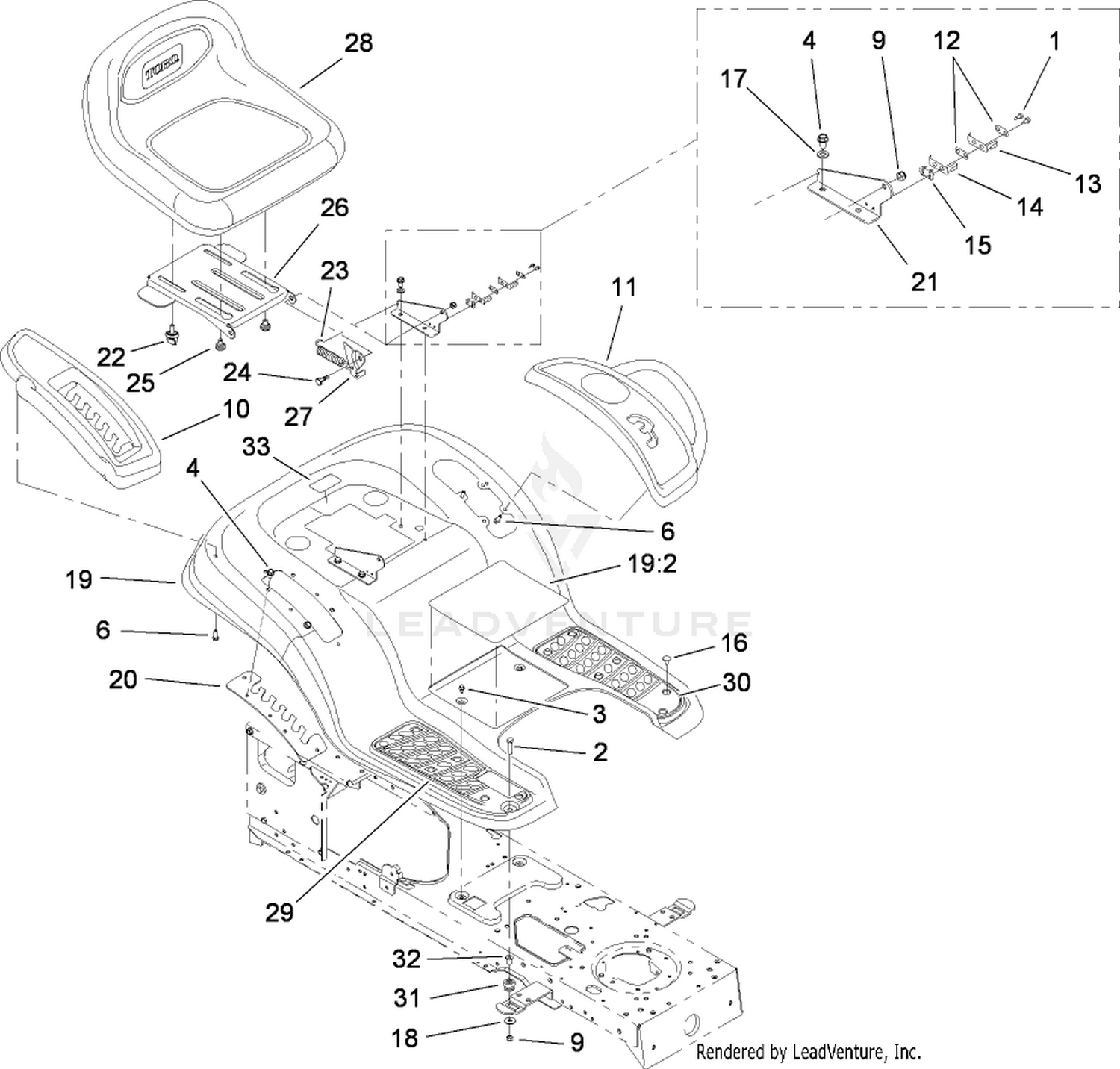

| Ref | Part Number | Description |
|---|
| 1 |
112-0626 |
SCREW-HWHTF Price: $3.52 |
| 2 |
112-0373 |
SCREW-HH Price: $3.50 |
| 3 |
112-0524 |
SCREW-HWHTF Price: $3.48 |
| 4 |
112-0556 |
SCREW-HWH Price: $3.48 |
| 6 |
112-0509 |
SCREW-TAP Price: $5.11 |
| 9 |
112-0650 |
NUT-LOCK, FLANGE Price: $3.42 |
| 10 |
112-0471 |
DISCONTINUED Price: Call Us |
| 11 |
112-0470 |
COVER-FENDER, LH Price: $42.35 |
| 12 |
112-0635 |
PLATE-INSULATOR Price: $3.02 |
| 13 |
112-0529 |
SWITCH-SPRING Price: $3.63 |
| 14 |
112-0532 |
SWITCH-SPRING, INNER Price: $4.41 |
| 15 |
112-0637 |
PLATE-BOSS, INSULATOR Price: $3.83 |
| 16 |
112-0549 |
CLIP-RATCHET, FASTENER Price: $3.50 |
| 17 |
112-0517 |
WASHER-LOCK, EXTERNAL Price: $3.52 |
| 18 |
112-0582 |
WASHER-FLAT Price: $3.52 |
| 19 |
112-5855 |
FENDER AND DECAL ASM Price: $401.08 |
| 20 |
112-0629 |
BRACKET-ADJUSTING, LIFT Price: $24.27 |
| 21 |
112-0905 |
BRACKET-MOUNT, SEAT Price: $18.92 |
| 22 |
112-0409 |
KNOB Price: $5.04 |
| 23 |
112-0616 |
SPRING-EXTENSION Price: $8.98 |
| 24 |
112-0575 |
BOLT-SHOULDER Price: $3.52 |
| 25 |
112-0554 |
DISCONTINUED Price: Call Us |
| 26 |
112-6113 |
BRACKET-PIVOT, SEAT This part replaces 112-0593. Price: $37.52 |
| 27 |
112-0646 |
BRACKET-LIFT, LH Price: $12.52 |
| 28 |
112-0363 |
DISCONTINUED Price: Call Us |
| 29 |
112-0540 |
PAD-FOOT, RH Price: $23.37 |
| 30 |
112-0545 |
PAD-FOOT, LH Price: $23.47 |
| 31 |
112-3732 |
GROMMET Price: $9.09 |
| 32 |
112-3733 |
SPACER Price: $3.52 |
