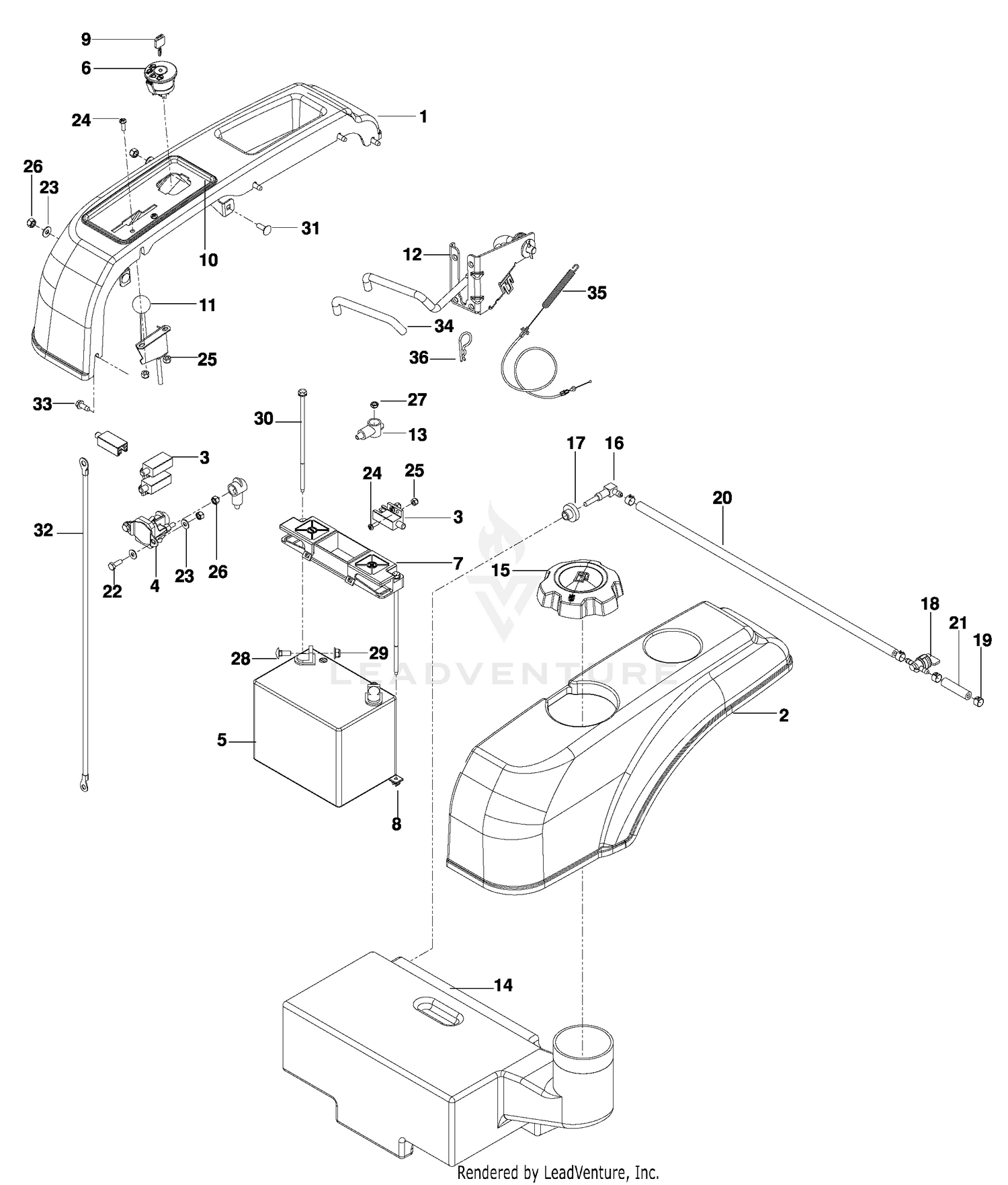

| Ref | Part Number | Description |
|---|
| 1 |
525594701 |
FENDER, RZ 30/38 RT Price: $22.99 |
| 2 |
525594702 |
FENDER, RZ 30/38 LT Price: $32.99 |
| 3 |
539101080 |
SWITCH, INTERLOCK Price: $14.99 |
| 4 |
539101714 |
SOLENOID Price: $22.99 |
| 5 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 6 |
532175566 |
IGNITION SWITCH This part replaces 539107541. Price: $22.99 |
| 7 |
539107628 |
BATTERY HOLD DOWN Price: $4.99 |
| 8 |
539107629 |
PUSH NUT-NYLON Price: $2.99 |
| 9 |
532140401 |
KEY MLD GEN DELTA This part replaces 539107544. Price: $5.99 |
| 10 |
525598601 |
MOUNT, CONTROLS, BLK Price: $44.99 |
| 11 |
522730101 |
CABLE, THROTTLE Price: $24.99 |
| 12 |
525829302 |
ASM, CLUTCH ENGAGE, W/CBL Price: $32.99 |
| 13 |
539116400 |
TERMINAL COVER-SM Price: $2.99 |
| 14 |
574790702 |
TANK, FUEL This part replaces 539120195. Price: $99.99 |
| 15 |
539130393 |
FUEL CAP, HTC Price: $19.99 |
| 16 |
539124804 |
ELBOW W/FILTER Price: $5.99 |
| 17 |
539126217 |
TANK FITTING Price: $10.99 |
| 18 |
539119272 |
SHUT OFF VALVE Price: $5.99 |
| 19 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 20 |
539115707 |
HOSE 1/4 X 21.5" This part replaces 539115743. Price: $6.99 |
| 21 |
539121486 |
HOSE 1/4 X 2" Price: $2.99 |
| 22 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 23 |
596582301 |
Washers This part replaces 539990055. Price: $2.99 |
| 24 |
596039001 |
Screws This part replaces 539976952. Price: $2.99 |
| 25 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 26 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 27 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 28 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 29 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 30 |
539107632 |
BOLT - 1/4-20 X 7.5 Price: $0.99 |
| 31 |
596238401 |
BOLT CUP HEAD SQUARE NECK BOLT This part replaces 539990074. Price: $2.99 |
| 32 |
539110068 |
BATTERY CABLE, NEGATIVE Price: $7.99 |
| 33 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 34 |
525868802 |
GRIP, CLUTCH, 3/8" Price: $2.99 |
| 35 |
532193235 |
CABLE.CLUTCH.38".SERVICE Price: $44.99 |
| 36 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
