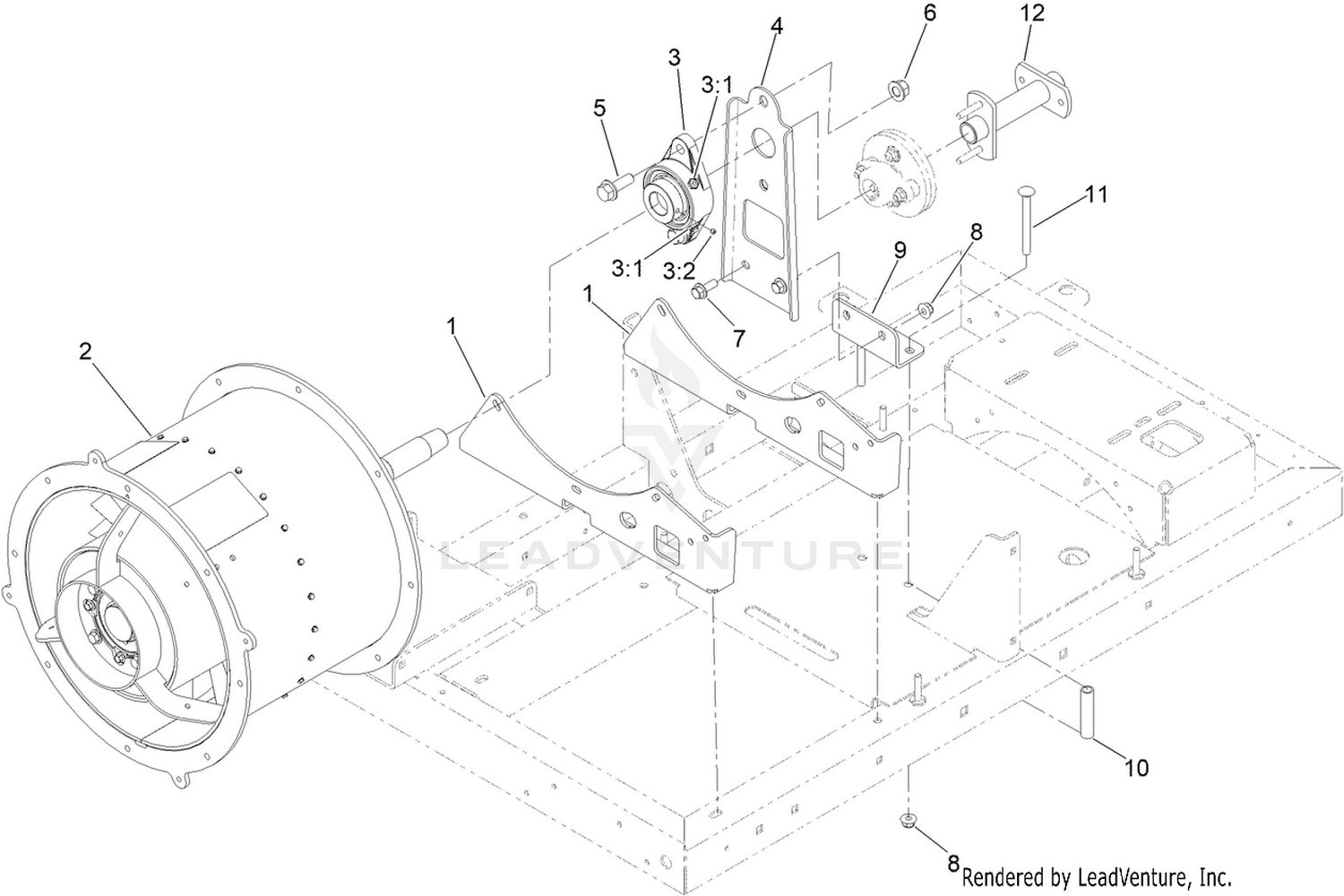

Turbine Service Assembly No. 145-7489
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 140-6983-01 | MOUNT-HOUSING Price: $79.43 |
| 2 | 140-6946SP | TURBINE ASM-HORIZONTAL This part replaces 140-6946. Price: $2,803.08 |
| 3 | 94-7484 | BEARING Price: $152.51 |
| 4 | 144-3316-01 | MOUNT-BEARING Price: $41.95 |
| 5 | 100-6116 | SCREW-HHF Price: $6.41 |
| 6 | 99-5107 | NUT-LOCK Price: $1.77 |
| 7 | 3234-42 | SCREW-HHF Price: $1.10 |
| 8 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 9 | 145-7684 | MOUNT-BEARING Price: $15.37 |
| 10 | 145-7493 | SPACER Price: $22.26 |
| 11 | 3231-24 | SCREW-CARR Price: $1.36 |
