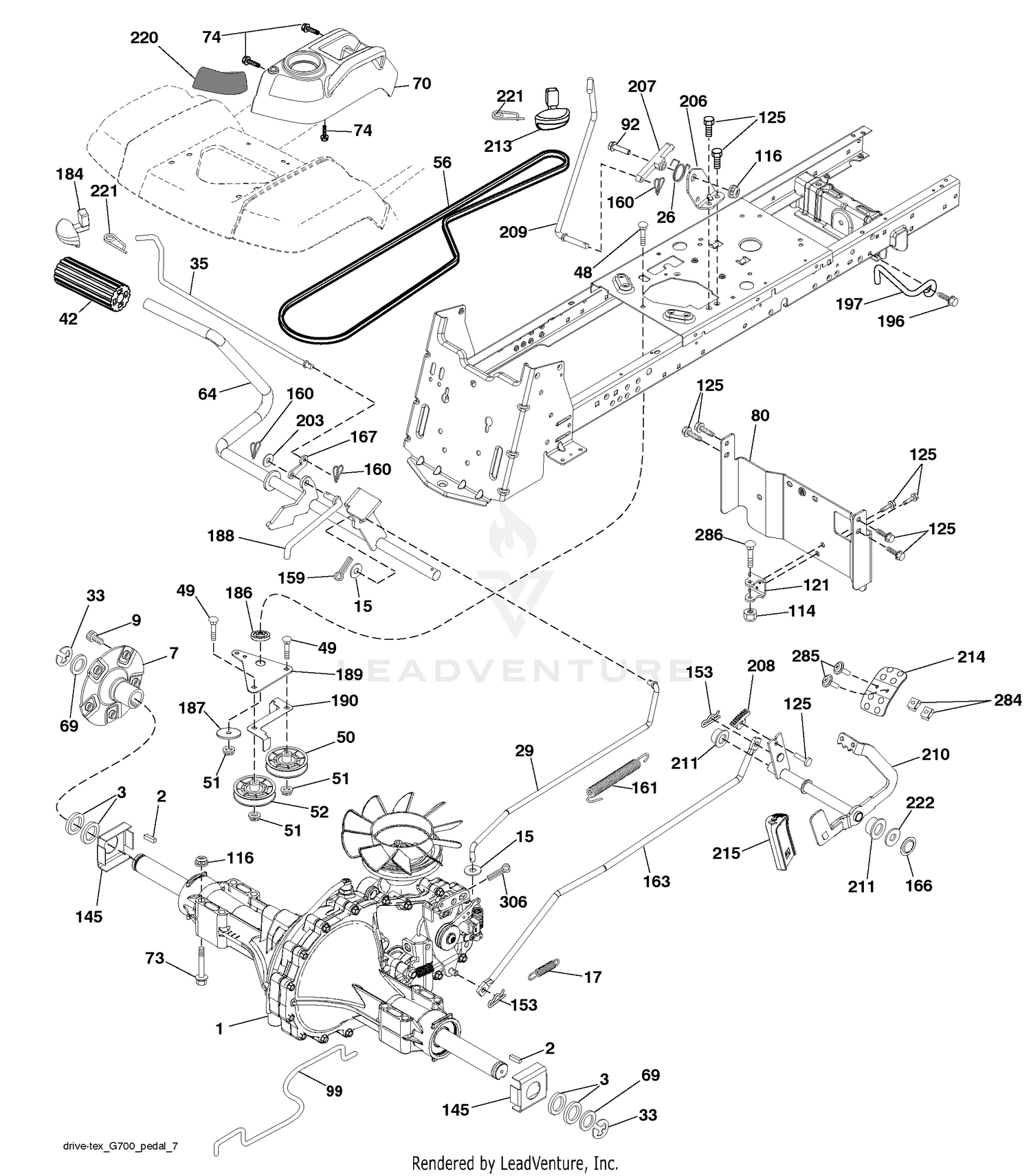

| Ref | Part Number | Description |
|---|
| 1 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 2 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 2 |
532007070 |
KEY 1/4 X 2.5 Price: $4.99 |
| 3 |
532007563 |
WASHER T Price: $6.99 |
| 3 |
60-2160 |
R-CLIP ASM Price: $8.47 |
| 4 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 5 |
33095-00 |
WASHER-FLAT Price: $0.25 |
| 6 |
3290-250 |
PIN-COTTER Price: $5.59 |
| 7 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 7 |
531149201 |
SERVICE KIT HUB.ASM HUB.ASM.WH This part replaces 532199837. Price: $39.99 |
| 8 |
65-5890 |
CAP-END Price: $8.09 |
| 9 |
58-1650 |
ROD-SEAT Price: $110.80 |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 10 |
82-9340 |
LEVEL SWITCH ASM Price: $201.99 |
| 11 |
65-5870 |
TUBE Price: $20.33 |
| 12 |
71-4040 |
HYD FILLER ASM Price: $69.67 |
| 13 |
353-961 |
FLANGE Price: $29.89 |
| 14 |
32144-107 |
SCREW Price: $0.68 |
| 15 |
353-963 |
GASKET Price: $4.33 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
62-2610 |
STRAINER-CAP, FILLER Price: $22.31 |
| 17 |
46-0670 |
SCREW-PPH Price: $1.89 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 18 |
92-9200 |
COVER Price: $276.63 |
| 19 |
60-5580 |
SWITCH-TEMPERATURE Price: $178.50 |
| 20 |
33115-030 |
SCREW-HH Price: $0.68 |
| 21 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 22 |
58-6820 |
GASKET Price: $13.28 |
| 23 |
93-6686 |
DECAL-OIL, HYD Price: $7.01 |
| 24 |
60-0050 |
SPRING-TRAY, SEAT Price: $78.73 |
| 25 |
58-1640 |
PIN-PIVOT, SEAT Price: $59.26 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 26 |
68-7850 |
STRIP-SEALING Price: $41.39 |
| 27 |
32128-20 |
NUT-HF Price: $0.99 |
| 29 |
532418186 |
ROD BRAKE Price: $29.99 |
| 30 |
58-1580-03 |
FRAME-SEAT Price: $402.10 |
| 31 |
58-9830-01 |
Plate-Seat Price: Call Us |
| 32 |
5-0652 |
SPACER This part replaces 26-4840. Price: $5.35 |
| 33 |
322-6 |
SCREW-HH Price: $0.45 |
| 33 |
812000053 |
E RING HYT Price: $3.99 |
| 34 |
2412-102 |
CLAMP-R Price: $6.85 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 48 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532420807 |
V-BELT.GROUND.DRIVE. Price: $39.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 69 |
532123800 |
WASHER Price: $3.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ This part replaces 532400530. Price: $79.99 |
| 73 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
532418184 |
STRAP.TORQUE.YT.G700 Price: $27.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532418188 |
SPRING.BYPASS.YT.G700 Price: $11.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 145 |
532163168 |
WASHER.AXLE.FLANGE.HG-3000 Price: $7.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
532418185 |
ROD PEDAL CONTROL Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531171001 |
SERVICE KIT BELLCRANK BELLCRAN This part replaces 532407504. Price: $4.99 |
| 190 |
532407505 |
KEEPER BELLCRANK ROUND DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLUTCH Price: $6.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532416863 |
PEDAL.FORWARD.HUSQVARNA.DEALER Price: $32.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 284 |
532417693 |
NUT.U-CHNL.1/4-20.550DP.350PNL Price: $3.99 |
| 285 |
874180412 |
SCREW.MACHINE.CR.1/4-20 This part replaces 532417765. Price: $3.99 |
| 286 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
