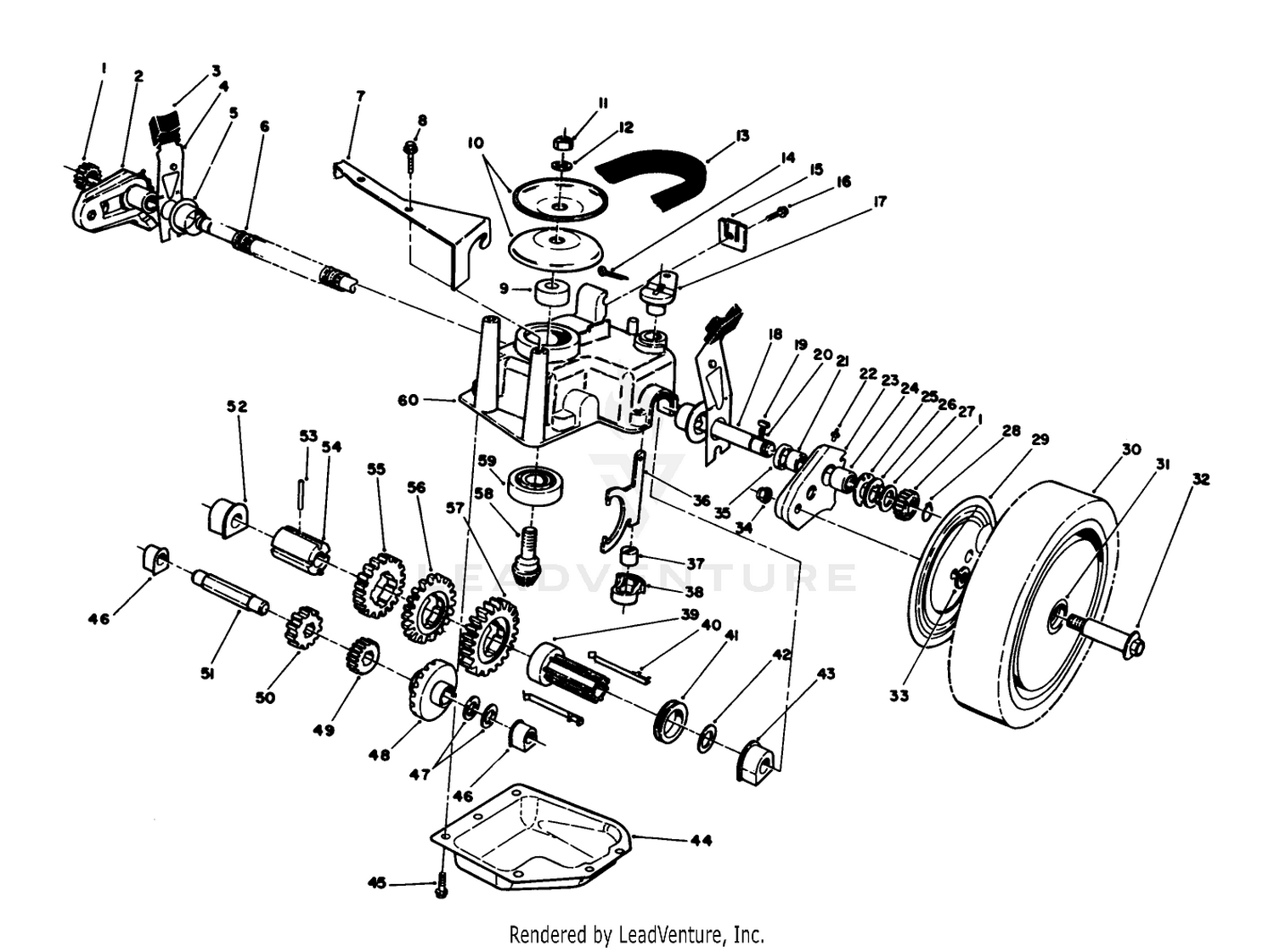

| Ref | Part Number | Description |
|---|
| 1 |
39-9160 |
GEAR-PINION Price: $9.84 |
| 2 |
49-7720 |
PIVOT ARM ASM RH Price: $74.74 |
| 3 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 4 |
44-1010 |
SPRING ARM ASM SP Price: $25.85 |
| 5 |
138-3235 |
CAP-END This part replaces 42-3520. Price: $2.29 |
| 6 |
24-7922 |
CONDUIT-CONVOLUTED, SPLIT Price: $9.99 |
| 7 |
62-4320-03 |
BRACKET-GUIDE, BELT This part replaces 62-4320. Price: $17.69 |
| 8 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 9 |
60-6660 |
NUT Price: $4.07 |
| 10 |
100-1176 |
PULLEY-HALF This part replaces 60-8840. Price: $5.58 |
| 11 |
3296-5 |
NUT-HEX Price: $3.09 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
62-3900 |
V-BELT Price: $20.79 |
| 14 |
3272-31 |
PIN-COTTER Price: $1.58 |
| 15 |
62-3720 |
CLAMP-CABLE This part replaces 46-5610. Price: $1.31 |
| 16 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 17 |
60-8820 |
SHIFT LEVER Price: $5.65 |
| 18 |
12-6659 |
ASM - OUTPUT SHAFT This part replaces 62-3280. Price: $156.90 |
| 19 |
39-9680 |
KEY RECTANGULAR Price: $3.28 |
| 20 |
39-9650 |
SPRING-COMPRESSION Price: $2.01 |
| 21 |
47-2890 |
BUSHING Price: $3.19 |
| 22 |
302-56 |
FITTING-GREASE Price: $3.69 |
| 23 |
49-7710 |
DISCONTINUED Price: Call Us |
| 24 |
117-3500 |
BEARING-CAGED NEEDLE ROLLER This part replaces 48-2060. Price: $4.69 |
| 25 |
49-7690 |
DISCONTINUED Price: Call Us |
| 26 |
49-7700 |
WASHER-THRUST, OUTER Price: $1.49 |
| 27 |
62-3830 |
WASHER-THRUST, OUTER Price: $2.83 |
| 28 |
32121-68 |
PIN-ROLL Price: $1.41 |
| 29 |
52-4860 |
WHEEL COVER * Price: $21.62 |
| 30 |
14-9969 |
WHL & TIRE ASSEMBLY This part replaces 51-2741. Price: $28.44 |
| 31 |
27-6250 |
BUSHING Price: $2.17 |
| 32 |
27-6231 |
WHEEL BOLT Price: $3.28 |
| 33 |
40-1940 |
WASHER Price: $1.59 |
| 34 |
32153-11 |
NUT-LOCK This part replaces 52-3620. Price: $3.99 |
| 35 |
47-6730 |
SEAL-OIL Price: $7.88 |
| 36 |
60-8870 |
YOKE-SHIFT Price: $16.30 |
| 37 |
29-9570 |
BUSHING-YOKE Price: $7.60 |
| 38 |
60-8810 |
RETAINER-FORK, SHIFT Price: $4.24 |
| 39 |
74-3620 |
SHIFT KEY SLEEVE This part replaces 60-8780. Price: $3.16 |
| 40 |
99-5261 |
DISCONTINUED This part replaces 60-8740. Price: Call Us |
| 41 |
60-8760 |
DISCONTINUED Price: Call Us |
| 42 |
364780 |
Washer Price: Call Us |
| 43 |
60-8770 |
BUSHING-OUTPUT Price: $4.49 |
| 44 |
60-8730 |
Cover-Gearcase Price: Call Us |
| 45 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 46 |
60-8750 |
BUSHING Price: $3.96 |
| 47 |
364791 |
Washer-Thrust Price: Call Us |
| 48 |
104-7668 |
GEAR-15T SPUR, 37T BEVEL This part replaces 55-3760. Price: $19.99 |
| 49 |
55-3780 |
PINION-20T Price: $23.45 |
| 50 |
55-3800 |
PINION-25T Price: $26.68 |
| 51 |
614696 |
SHAFT-INTERMEDIATE This part replaces 60-8800. Price: $62.72 |
| 52 |
60-8850 |
BUSHING Price: $4.72 |
| 53 |
32121-108 |
PIN-SPIROL This part replaces 32121-106. Price: $4.45 |
| 54 |
60-8790 |
SLEEVE-GEAR Price: $33.82 |
| 55 |
55-3810 |
GEAR-39T Price: $33.46 |
| 56 |
55-3790 |
GEAR-44T Price: $41.69 |
| 57 |
55-3770 |
GEAR-49T Price: $41.69 |
| 58 |
104-7667 |
GEAR-PINION, BEVEL This part replaces 60-8890. Price: $10.46 |
| 59 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 60 |
60-8710 |
CASE-GEAR, UPPER Price: $110.35 |
